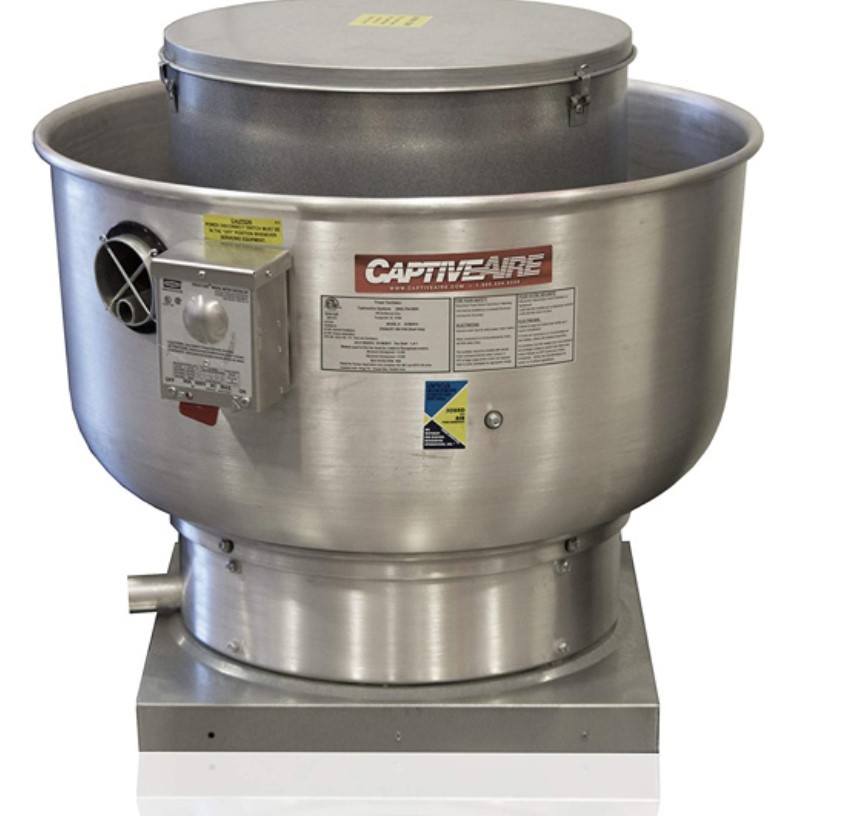

Captive-Aire DU85HFA

Centrifugal Upblast Direct Drive DU85HFA Roof Mounted General Ventilation (UL 705) 0.75 HP 2000 CFM @0.5 in. w.c.

DU85HFA High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control, disconnect switch and 15-3/4" wheel. Exhaust Fan handles 2000 CFM @ -0.500" wc ESP. Fan runs at 1207 RPM. Exhaust Motor: 0.750 HP, 1 Phs, 115 V, 60Hz, 8.9 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor)

Includes MSC Controller for manual or 0-10V speed control.

Not suitable for grease applications. For restaurant duty, use CAS-DU85HFA-Grease

Specifications:

• HP: 0.75
• Voltage: 115
• Phase: 1
• Motor Type: ECM
• FLA: 8.9
• Fan/Motor RPM Range: 300-1800
• Speed Controller Type: CaptiveAire MSC (Motor Speed Controller)
• Exhaust Fan UL Listing: UL 705 (General Ventilation)
• CFM Range: 800-3200

DU85HFA Options:

ECM Exhaust Wiring Packages

• ECM Wiring Package - Manual or 0-10VDC Reference Speed Control -RTC- (Telco Motor), CCW Rotation
