Hoshizaki KM-1100MRJZ

OEM Numbers

KM-1100MRJZ, KM-1100MRH, KM-1100MRJ

Spec Sheet (PDF)

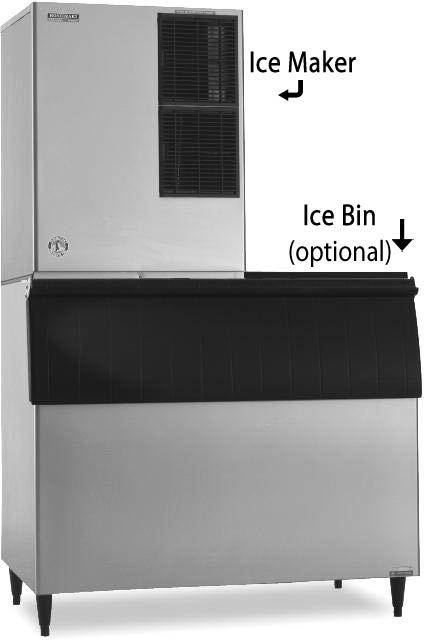

The KM-1100MRJZ is capable of producing approximately 1156 lbs of crescent cubed ice. The energy efficient KMEdge design incorporates a dual-sided stainless steel evaporator. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Remote-cooled with URC-14FZ icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1100MRJZ requires a Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately.

• Dimensions: 30″ W x 27-3/8″ D x 32-1/2″ H
• Up to 1156 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces crescent shaped ice cubes
• Durable stainless steel exterior
• EverCheck™ alert system
• CycleSaver™ design
• R-404A refrigerant (9 lbs. 11.2 oz. / 4400 g)
• Heat Rejection:15600 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 187 – 253V
• 12.5 amps (20 Amp Max fuse)
• 4.5 kwh/100 lbs.@ 90/70
• Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts & Labor warranty on evaporator.

Crescent Ice Cube
