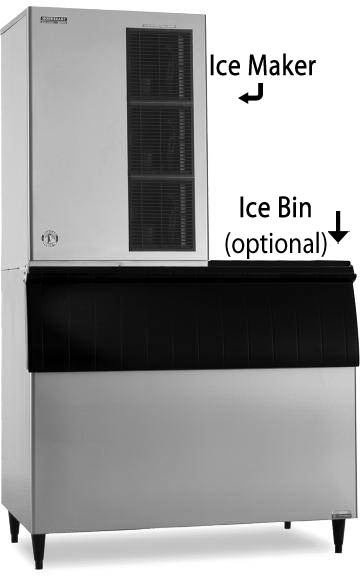

Hoshizaki KM-1340MRJZ

OEM Numbers

KM-1340MRJZ, KM-1340MRH, KM-1340MRJ

Spec Sheet (PDF)

The KM-1340MRJZ is capable of producing approximately 1371 lbs of crescent cubed ice. Hoshizaki’s efficient double-sided stainless steel evaporators create the unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-14FZ icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1340MRJZ requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required electrical connection that is hard-wired at the installation site. Remote condenser sold separately.

• Dimensions: 30″ W x 27-3/8″ D x 41-1/2″ H
• Up to 1371 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces crescent shaped ice cubes
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
• EverCheck™ alert system
• CycleSaver™ design
• R-404A refrigerant (6 lbs. 9.8 oz. / 3000 g)
• Heat Rejection:19900 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 187 – 253V
• 14 amps (20 Amp Max fuse)
• 4.54 kwh/100 lbs.@ 90/70
• Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts & Labor warranty on evaporator.

Crescent Ice Cube

Energy Star Certified! Energy efficient choices can save you money on your energy bill, without sacrificing features.
