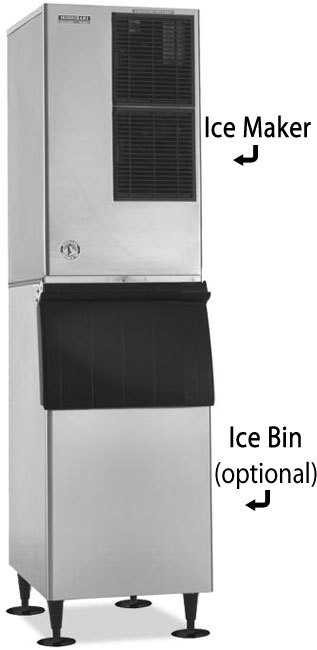

Hoshizaki KM-660MRJZ

OEM Numbers

KM-660MRJZ, KM-650MRH, KM-650MRJ, KM-660MRJ

Spec Sheet (PDF)

The KM-660MRJZ is capable of producing approximately 642 lbs of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-5FZ icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-660MRJZ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included. Remote condenser sold separately.

• Dimensions: 22″ W x 27-3/8″ D x 28″ H
• Up to 642 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces crescent shaped ice cubes
• Durable stainless steel exterior
• EverCheck™ alert system
• CycleSaver™ design
• R-404A refrigerant (2 lbs. 4.7 oz / 1012 g)
• Heat Rejection:8100 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 16.1 amps (20 Amp Max fuse)
• 5.6 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
• ENERGY STAR® qualified
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts & Labor warranty on evaporator.

Crescent Ice Cube

Energy Star Certified! Energy efficient choices can save you money on your energy bill, without sacrificing features.
