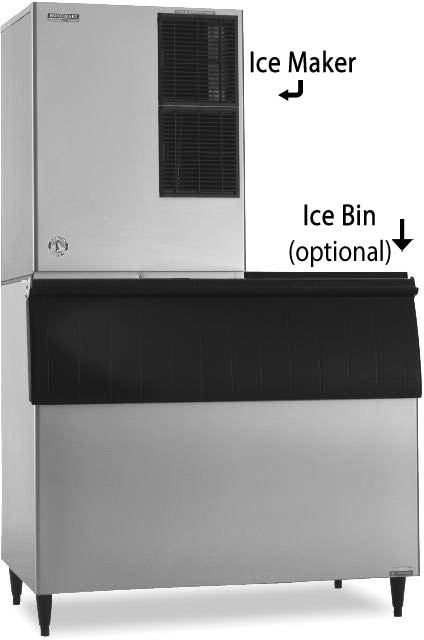

Hoshizaki KM-901MRJZ

OEM Numbers

KM-901MRJZ, KM-901MRH, KM-901MRJ

Spec Sheet (PDF)

The KM-901MRJZ is capable of producing approximately 900 lbs of crescent cubed ice. Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-14FZ icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-901MRJZ requires a Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site.

• Dimensions: 30″ W x 27-3/8″ D x 32-1/2 ” H
• Up to 900 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces crescent shaped ice cubes
• Durable stainless steel exterior
• EverCheck™ alert system
• CycleSaver™ design
• R-404A refrigerant (12 lbs. 5.5 oz. / 6600 g)
• Heat Rejection:12500 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 187 – 253V
• 12 amps (20 Amp Max fuse)
• 4.75 kwh/100 lbs.@ 90/70
• Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
• ENERGY STAR® qualified
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts & Labor warranty on evaporator.

Crescent Ice Cube
