Product Description

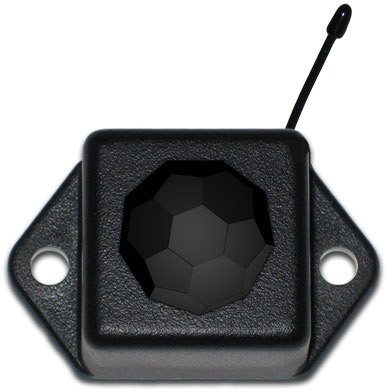

The Wireless Motion Detection Sensor will let you know if someone enters a room or area that is prohibited for use. Or if you just want to be notified if someone enters a room etc. It uses an infrared sensor to accurately detect the movements made by people or animals within 16 feet (5 m) range. You can customize to allow you to set notifications and alerts via SMS text, email, or both from the Temp Alert system so you can know immediately if there is motion in a particular room or area.
(Uses (1) coin cell battery which typically can last 1-2 years)
Product Features
* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting
frequency and other variables.
Infrared Motion Sensing Element Specifications
Sensing: TechnologyPassive Infrared
Sensing: Range16.4 ft (5 m)
Voltage: Rating3 VDC to 6 VDC
Output: TypeDigital
Supply: Current170 uA
Battery Type: Replaceable 3.0V Coin Cell Battery
Dimension: 1.775 in x 1.04 in x 0.785 in
Max Operating Temperature-20°C to +60°C (-4° to +140°F)
Optimal Battery Operating Temperature (Coin Cell)+10°C to +50°C (+50°F to +122°F)
Supply Voltage: 2.0 - 3.6 V (Single CR2032 Coin Cell Battery)
Device Range: 250 - 300 ft. non-line-of-sight device range*
Battery Life: At 1 hour heartbeat setting, coin cell battery will typically last ~ 1-2 Years. **
Enclosure Material: ABS
Operating: Frequency 900 MHz Operating Frequency
CertificationsComplies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1)
Complies with Industry Canada standards. (IC: 9794A-RFSC1)
Sensor Comes with:
CR2032 Coin Cell Battery
Mounting Screws and adhesive tape
