Ventilation Direct VXD85 | .75 H/P 115 Volts High Speed Direct Drive Centrifugal Upblast Exhaust 2500 CFM

VXD85 Product Description

VXD85 - Premium Efficiency 1 Phase Direct Drive Restaurant Exhaust Fans with

Electronically Commutated Motors and Speed Control 800 to 2500 CFM

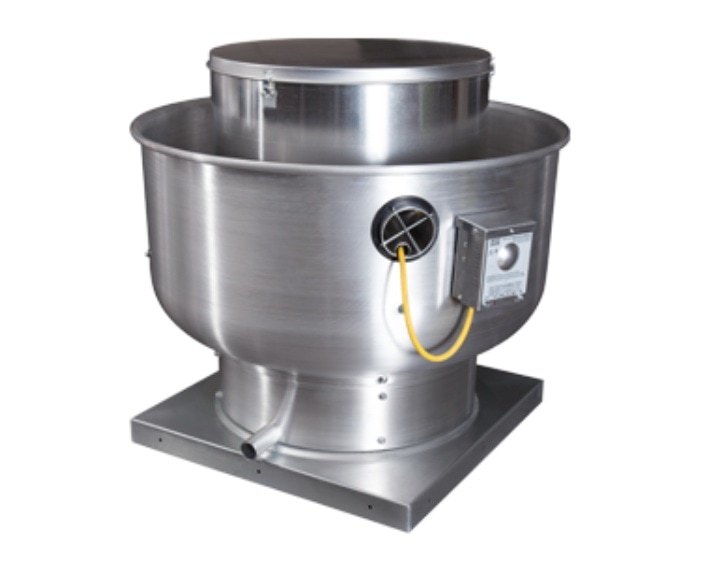

High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control (single phase only), disconnect switch and 15-3/4" wheel.

Includes Electronically Commutated (EC) Motor for operation between 300 and 1800 RPM
EC motors provide greater efficiency than conventional ODP motors

Exhaust Fan handles 2500 CFM @ -0.500" wc ESP, Fan runs at 1408 RPM
Base Size: 24.75"x 24.75"
Exhaust Motor: 0.750 HP, 1 Phase 115 V, 60Hz, 8.8 FLA, ODP-ECM (Open Drip Proof Electronically Commutated Motor)
800 to 2500 CFM
UL705, UL762, & ULC-S645 Rated
