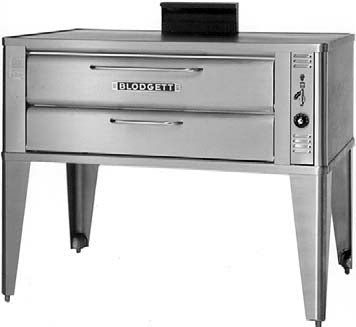

Blodgett 961P Single, 50,000 BTU Gas 42 x 32 x 7 Single Deck Oven

STANDARD FEATURES

• 961P - Fahrenheit dial 300° to 650°
• 961P - Ultra Rokite deck
• Two year parts and one year labor warranty
• Five year limited oven door warranty*

EXTERIOR CONSTRUCTION

• Full angle iron frame
• Stainless steel front, top, sides and back
• Counterbalanced doors with concealed hinges
• Heavy chrome plated tubular steel door handle
• 27-1/2" (699mm) stainless steel legs (for single units)
• Burner doors open easily for ignition, cleaning or adjustment, without removal of any fastenings
• Vitreous fiber insulation at top, back, sides, bottom and doors

INTERIOR CONSTRUCTION

• 42" x 32" x 7" (1067mm x 813mm x 178mm) oven compartment interior
• Aluminized steel baking compartment liner
• Aluminized steel combustion chamber
• Steel deck supported by an angle iron frame
• 12 gauge (3.02mm) press-formed, reinforced and flanged aluminized steel deck

OPERATION

• Free-floating, easily removable duplex-tube burner
• Removable fixed orifices on main and pilot burner
• Main gas valve, temperature control valve and safety pilot valve fully within section body and are accessible through a covered and ventilated compartment in front.
• Air mixers with adjustable air shutters and locking device
• 961P - Liquid pressure thermostat with temperature control range of 300°F (149°C) to 650°F (343°C)
