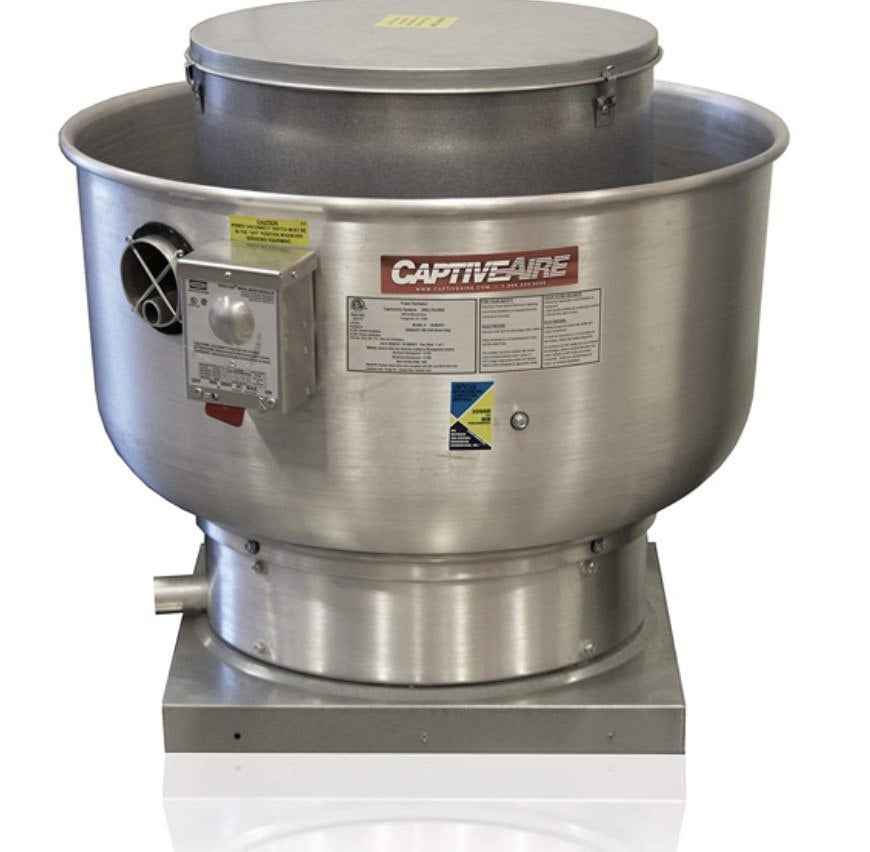

Captive-Aire CAS-DU85HFA, 3/4 HP 115 Volts Centrifugal Upblast Direct Drive DU85HFA Roof Mounted

Centrifugal Upblast Direct Drive DU85HFA Roof Mounted Restaurant Duty (UL 762) 0.75 HP 2000 CFM @0.5 in. w.c.

DU85HFA High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control, disconnect switch and 15-3/4" wheel. Exhaust Fan handles 2000 CFM @ -0.500" wc ESP. Fan runs at 1207 RPM. Exhaust Motor: 0.750 HP, 1 Phs, 115 V, 60Hz, 8.9 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor)

Includes MSC Controller for manual or 0-10V speed control.

Includes grease cup for kitchen-duty centrifugal exhaust fans (part #GC-CUF). The dimensions of the grease cup are 17-1/8 L X 5-1/16 W X 3-3/4 H (20 GA.) It includes the down spout.

Includes standard hinge kit (part # HBKIT-01) for exhaust fan roof curbs. Includes hardware to attach hinge to curb and hinge to base. The hinge kit ships loose. It is used on fans with wheels 20 inches or smaller. 12 GA Galvanized

Specifications:

• HP: 0.75
• Phase: 1
• Motor Type: ECM
• Voltage: 115
• FLA: 8.9
• Fan/Motor RPM Range: 300-1800
• Speed Controller Type: Captive Aire MSC (Motor Speed Controller)
• Exhaust Fan UL Listing: UL 762 (Restaurant Duty)
• CFM Range: 800-3200

DU85HFA Options:

ECM Exhaust Wiring Packages

• ECM Wiring Package - Manual or 0-10VDC Reference Speed Control -RTC- (Telco Motor), CCW Rotation

Exhaust Fan Grease Cup

• Grease Box

General Fan Option

• Hinge Kit - Ships Loose for Curb Supplied By Other

*NOTE: Captive-air uses their other brand/label on this item
