Captive-Aire DR12HFA, High Speed Direct Drive Centrifugal
Captive-Aire DR12HFA, High Speed Direct Drive Centrifugal is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Captive-Aire DR12HFA, High Speed Direct Drive Centrifugal
Description
Description

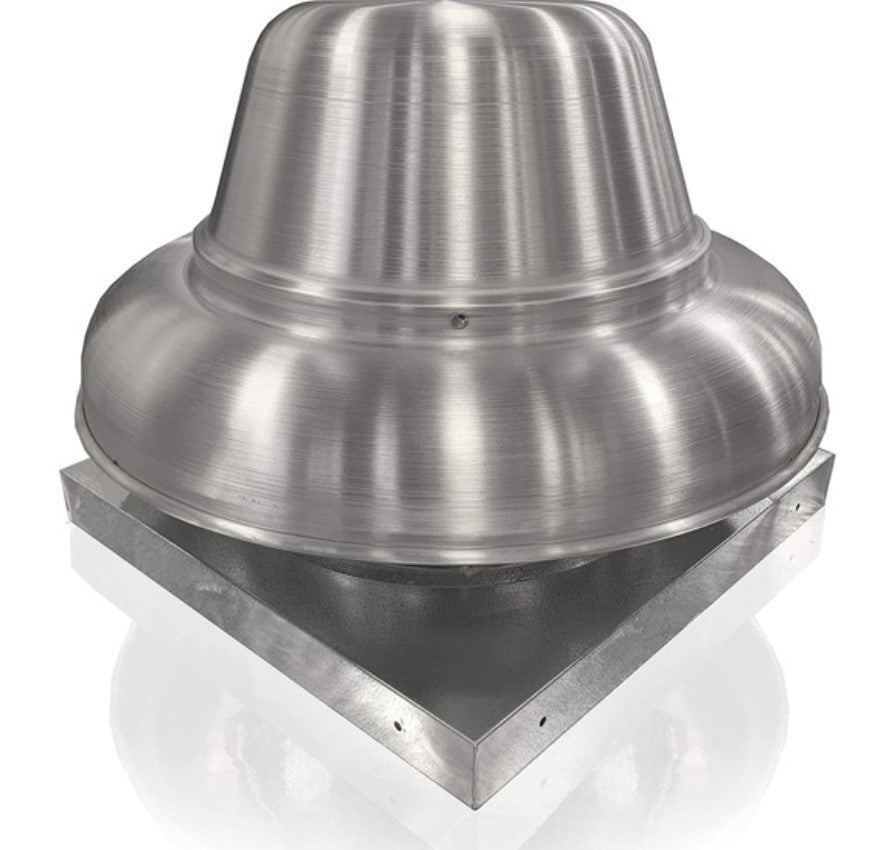

Centrifugal Downblast Direct Drive DR12HFA Roof Mounted General Ventilation (UL 705) 0.25 HP 600 CFM @0.25 in. w.c.
DR12HFA High Speed Direct Drive Centrifugal Downblast Exhaust Fan with speed control, birdscreen, disconnect switch and 10-1/2" wheel. Exhaust Fan handles 600 CFM @ -0.250" wc ESP. Fan runs at 1230 RPM. Exhaust Motor: 0.250 HP, 1 Phs, 115 V, 60Hz, 2.9 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor).
Includes RTC Controller for manual or 0-10V speed control.
SPECIFICATIONS:
- HP: 0.25
- Voltage: 115
- Phase: 1
- Motor Type: ECM
- FLA: 2.9
- Fan/Motor RPM Range: 350-1800
- Speed Controller Type: RTC
- Exhaust Fan UL Listing: UL 705 (General Ventilation)
Specifications
Specifications
| CATEGORY | Fan & Blower Motors |
|---|
