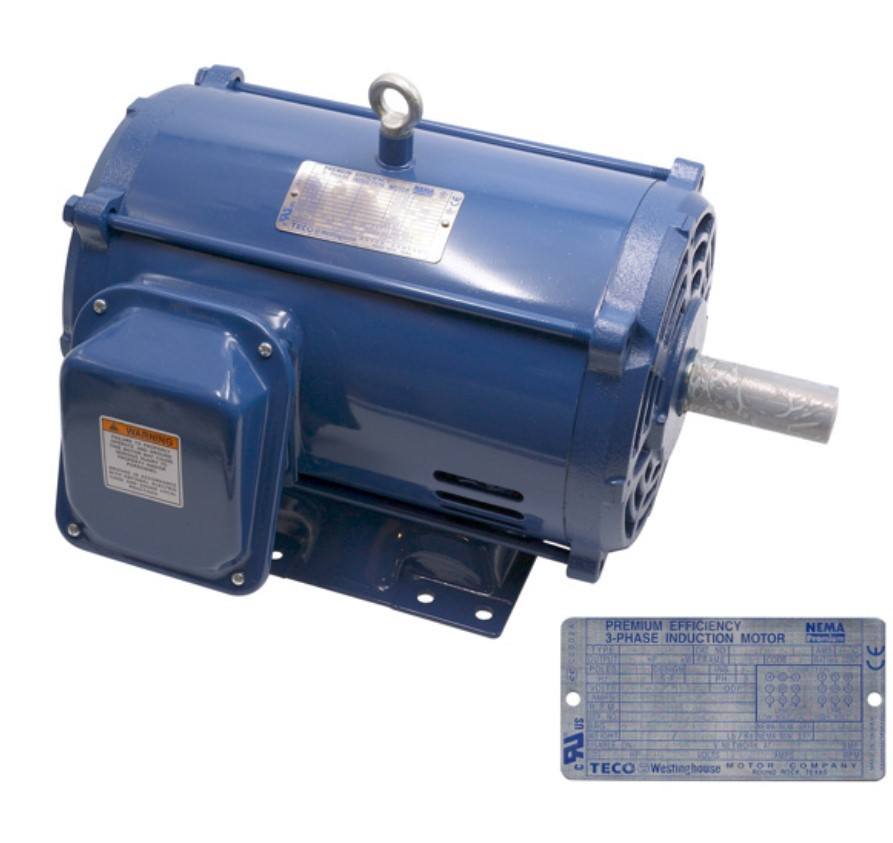

Captive-Aire DTP0054, MOTOR - 5.00 HP, Three Phase, 208-230/460V, ODP, 1750 RPM

CAPTIVE-AIRE DTP0054 GENUINE OEM REPLACEMENT PART

MOTOR - 5.00 HP, Three Phase, 208-230/460V, ODP, 1750 RPM
Rigid Base, 184T Frame, 15.04-13.60/6.80 FLA, Keyway X 1-1/8" Shaft Diameter. Class F Insulation.
INVERTER DUTY

Specifications:

• Material: Metal
• Color: Blue
• HP: 5
• Nameplate RPM: 1750
• Voltage: 230/460
• Phase: 3
• Enclosure type: ODP
• Shaft length: 2.75"
• Center to base: 4.5"
• Inverter rated: Inverter
• Insulation Class: F
• Insluation Max Temp: 311 F
• 100% Efficiency: 89.5
• 75% Efficiency: 90.0
• 50% Efficiency: 89
• Poles: 4
• NEMA Frame Size: 184T
• Shaft Diameter: Keyway X 1-1/8"
