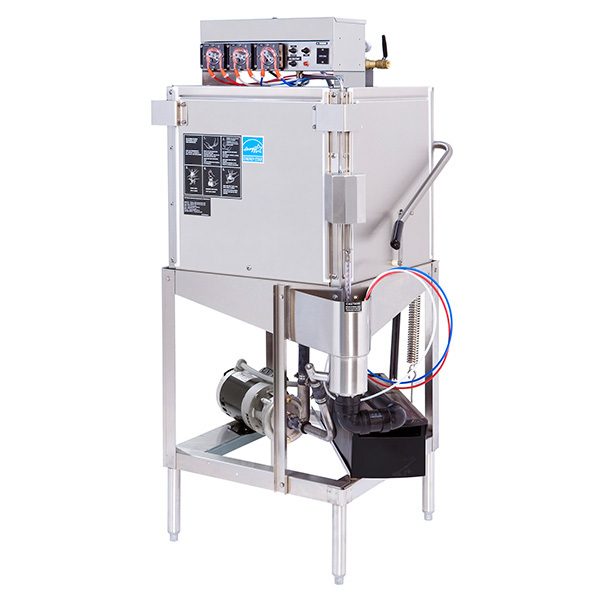

Champion DL2000 Low-Temp Door-Type Dishwasher, 40 Racks/Hr

Champion DL2000 Low-Temperature Door Machine

The DL2000 is Champion's chemical-sanitizing door machine. It runs on a 115V circuit, uses about a gallon of water per rack, and can be converted on site between corner and straight-through operation if your dish room changes.

Where it fits

A practical choice for restaurants, churches and schools that already use a low-temp chemical program.

Key specifications

• Model: DL2000
• Sanitizing: Low Temperature Chemical Sanitizing
• Configuration: Single Rack, Corner or Straight-Thru
• Capacity: up to 40 racks per hour
• Dimensions (W x D x H): 30 1/4" x 34 1/8" x 66"
• Weight: 218 lb
• Electrical: 115V, Single Phase, 16 A (20A breaker)
• 1.01 gal water per rack
• 20-3/4" door opening
• 1 HP wash motor
• Certifications: UL listed; Energy Star
• Warranty: 1 year parts and labor

Installation notes

Draws 16A on a 20-amp breaker. Built-in chemical pumps and a deliming system are included. The 20-3/4" door opening takes most sheet pans.
