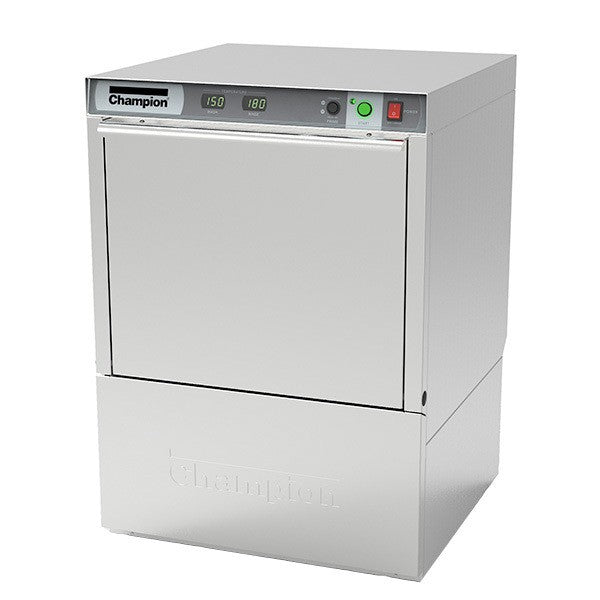

Champion UH130B High-Temp Undercounter Dishwasher w/ Booster, 25 Racks/Hr

Champion UH130B High-Temp Undercounter

The UH130B packs a 6kW booster into an undercounter cabinet, so the final rinse reaches 180°F from a normal hot water line. Champion's StemSure soft start eases the wash pump up to pressure, which is kind to stemware and stacked plates.

Where it fits

Well suited to bars, cafés and small restaurants that want hot-water sanitizing in a compact footprint.

Key specifications

• Model: UH130B
• Sanitizing: High Temperature
• Configuration: Undercounter
• Capacity: up to 25 racks per hour
• Dimensions (W x D x H): 24" x 25" x 33 3/4"
• Weight: 215 lb
• Electrical: 208-240V, Single or Three Phase, 32-36 A (1-ph) / 22-24 (3-ph)
• Built-in 6kW booster (70°F rise)
• 15-3/4" door opening
• Includes 1 peg rack and 1 flat rack
• Certifications: Energy Star
• Warranty: 1 year parts and labor

Installation notes

Field convertible between 208 and 240V and between single and three phase (single phase draws 32-36A). The 15-3/4" door opening takes trays, and the unit ships with one peg rack and one flat rack.
