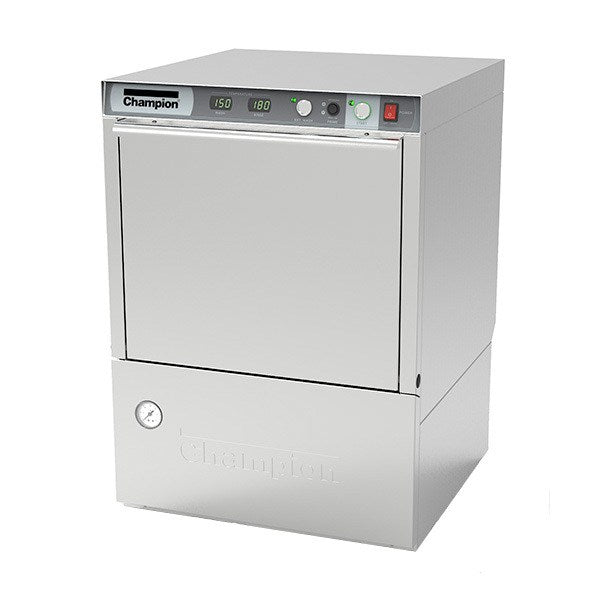

Champion UH230B High-Output Undercounter
With a 90-second cycle, the UH230B is one of the quickest high-temperature undercounters available, cleaning up to 40 racks an hour. A built-in 6kW booster handles the 180°F rinse and an LED display shows wash and rinse temperatures at a glance.
Where it fits
Made for busy bars and small restaurants that have outgrown a slower undercounter but lack room for a door machine.
Key specifications
- Model: UH230B
- Sanitizing: High Temperature
- Configuration: Undercounter
- Capacity: up to 40 racks per hour
- Dimensions (W x D x H): 24" x 25" x 33 3/4"
- Weight: 215 lb
- Electrical: 208-240V, Single or Three Phase, 32-36 A (1-ph) / 22-24 (3-ph)
- 90-second total cycle
- Built-in 6kW booster (70°F rise)
- LED temperature display
- Certifications: Energy Star
- Warranty: 1 year parts and labor
Installation notes
Runs on 208-240V; single phase draws 32-36A and three phase 22-24A. Offers an extended wash for heavily soiled loads. Crated shipping weight is about 215 lb.
Specifications
Specifications
| AMPS | 32-36 (1-ph) / 22-24 (3-ph) |
|---|---|
| DIMENSIONS | 24 x 25 x 33 3/4 (W" x D" X H") |
| EXTERIOR | Stainless steel |
| PHASE | Single or Three Phase |
| VOLTS | 208-240 |
| WARRANTY | 1 year parts and labor |
| WEIGHT | 215 lb |
Spec Sheet (PDF)
