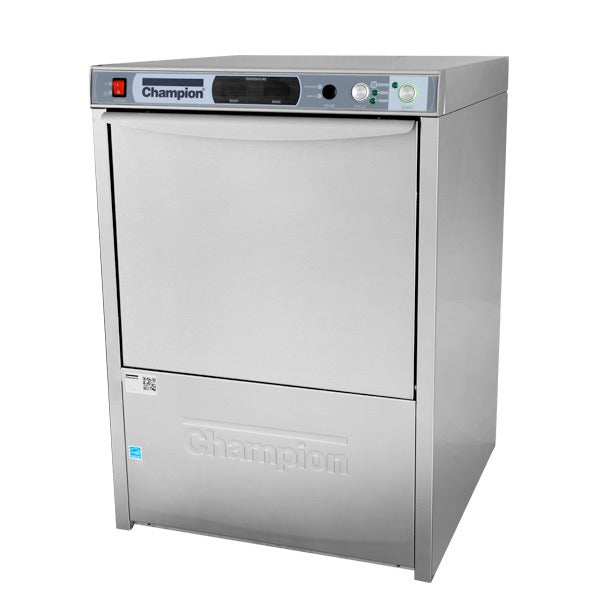

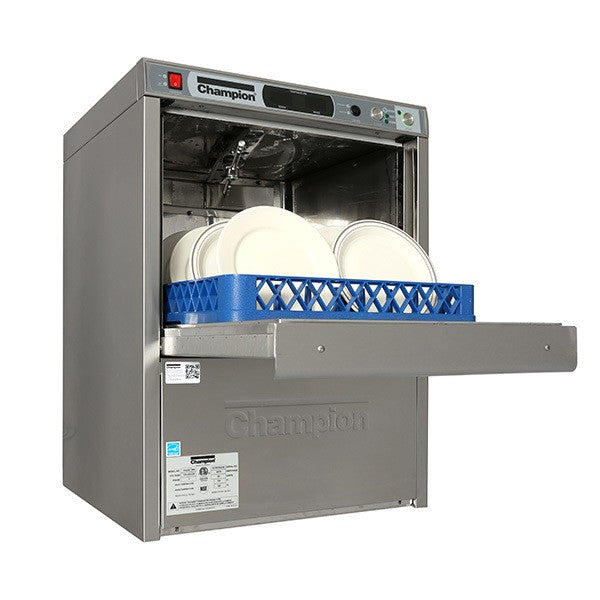

Champion UH330B Heat-Recovery Undercounter Dishwasher, 24 Racks/Hr

Champion UH330B Heat-Recovery Undercounter

The UH330B connects to cold water only and uses heat recovered from its own steam to warm the incoming supply. That means no blast of steam when the door opens, quicker-drying ware and noticeably lower energy use than a standard high-temp undercounter.

Where it fits

A good match for open kitchens, bars and coffee shops where steam and heat at the counter are a problem.

Key specifications

• Model: UH330B
• Sanitizing: High Temperature
• Configuration: Undercounter, Heat Recovery
• Capacity: up to 24 racks per hour
• Dimensions (W x D x H): 24" x 26 3/4" x 33 3/4"
• Weight: 215 lb
• Electrical: 208-240V, Single or Three Phase, 32-36 A (1-ph) / 22-24 (3-ph)
• Cold water connection only
• 0.76 gal water per rack
• Built-in 4.3kW booster
• Dry Assist
• Certifications: Energy Star
• Warranty: 1 year parts and labor

Installation notes

Choose from three cycle times (about 24, 18 or 13 racks per hour). The built-in 4.3kW booster runs on 208-240V, 32-36A single phase. Field convertible to three phase.
