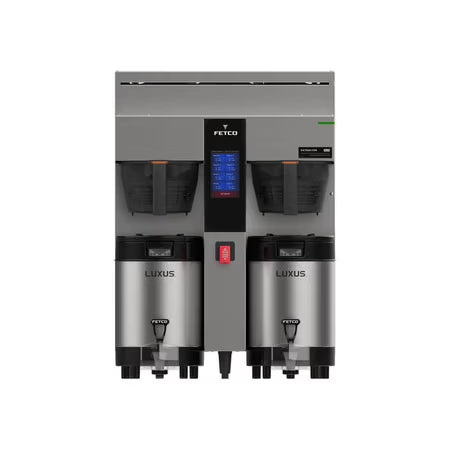

Fetco CBS-2232 NG (E2232US-1B230-PA010), NG Series Twin Thermal Server Coffee Brewer, Plastic Basket, 6 kW, 208-240V 1-Ph

The Fetco CBS-2232 NG (E2232US-1B230-PA010) is a twin-station NG Series touchscreen brewer that fills two 1-gallon thermal servers side by side. This configuration comes with plastic brew baskets and is set up for 6 kW, 208-240V single-phase.

Best for:

• Busy cafes, c-stores and office coffee programs
• Offering two blends or regular and decaf at once
• Self-serve beverage counters

Key specifications:

• Model: CBS-2232 NG (configuration code E2232US-1B230-PA010)
• Brew stations: 2
• Output: up to 254 8 oz cups per hour
• Brews into: two 1.0 gal thermal servers
• Tank capacity: 5.48 gal
• Brew basket: Plastic brew baskets
• Paper filter size: 13" x 5"
• Electrical: 6 kW, 208-240V single-phase
• Water connection: 3/8" male flare, 1.5 gpm minimum, 20-75 psig
• Dimensions: 19.75" W x 20.5" D x 26.25" H
• Shipping weight: 55 lb
• Certifications: UL, NSF

Features:

• Extractor brewing system for full control of brew time, pulsing and bypass
• Capacitive touchscreen for setting recipes and brew buttons
• LED status bar shows where each brew cycle stands
• ECO mode lowers tank temperature during idle periods
• Brew baskets lock in place while brewing
• Lime-resistant cascading spray dome, manual hot water faucet, USB recipe port and laser-welded tank

What's included:

• Brewer with two brew baskets. Thermal servers (shown in photo), filters and water filtration are sold separately.
• Fetco spec sheet with full electrical options and clearances is linked on this page

Installation notes:

• Hardwire or connect per the electrical configuration above; a licensed electrician should install
• Connect to a cold water line with the pressure and flow listed above; a water filter is recommended
• Check the spec sheet for clearances and the exact heater configuration before ordering

Warranty:

• 1 year parts and labor
• 2 years parts on electromechanical components
• 3 years parts on circuit boards
