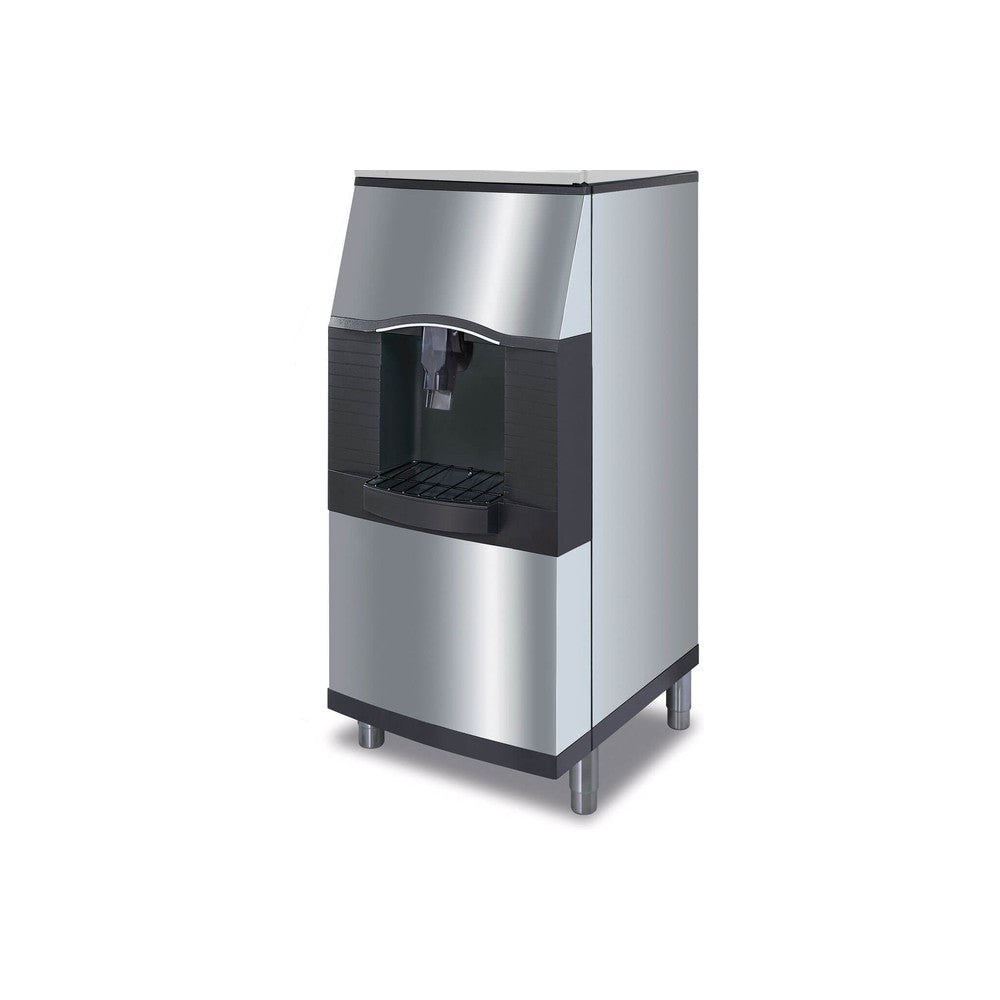

Manitowoc SPA162-161, Freestanding Hotel Ice Cube Dispenser, 120 Lb Storage

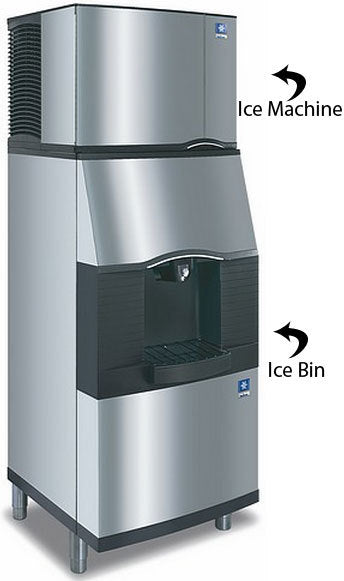

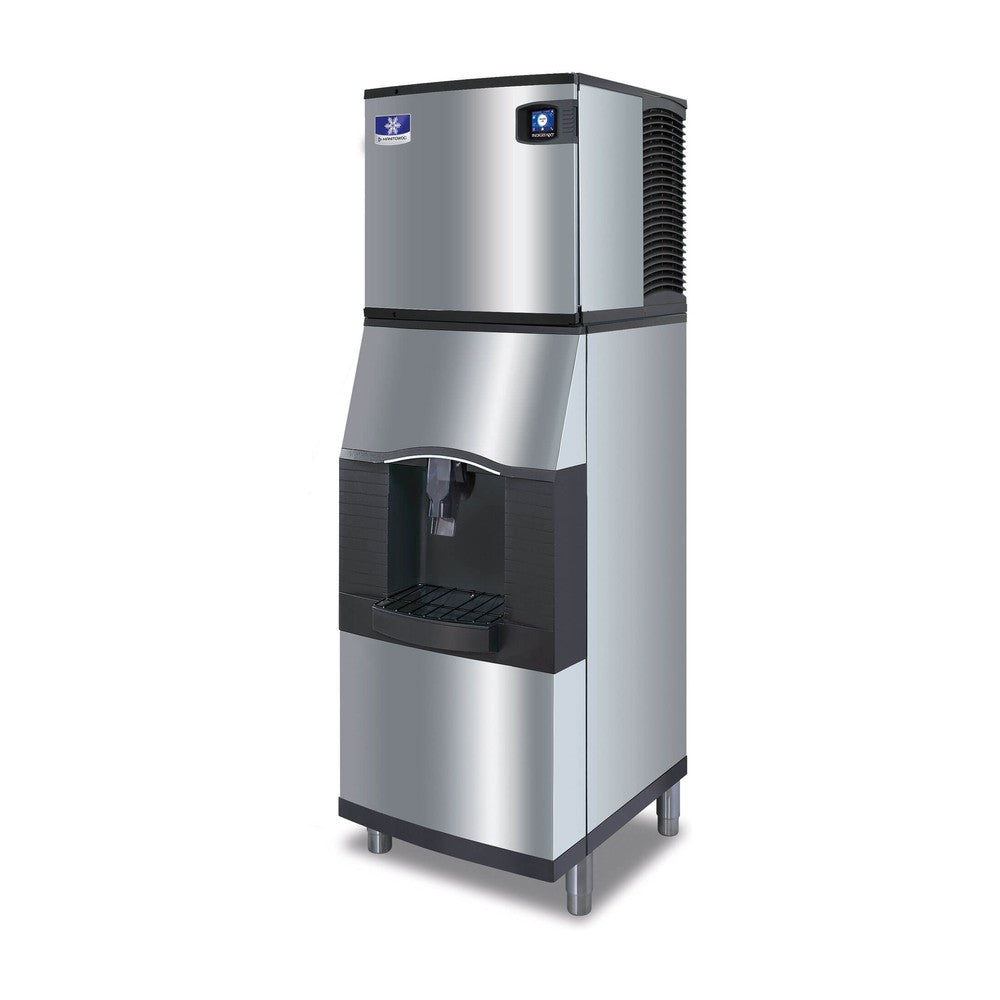

The SPA162-161 is Manitowoc's 22-inch touchless hotel ice dispenser for ice only. It stores up to 120 pounds of cube ice under a matching 22-inch Manitowoc ice machine and lets guests fill an ice bucket or a glass by pressing the container against the lever, so hands never touch the dispenser. It is a compact choice for hotel and motel ice alcoves, dormitories, hospital floors and break areas.

Fit and installation: This is the dispenser only; the ice machine is ordered separately. It accepts a single 22-inch-wide Manitowoc ice machine, and Manitowoc's spec sheet pairs it with Indigo NXT IT0420 and IT0620-series 22-inch cubers in dice or half-dice cube. The dispenser stands 54 inches tall on its 6-inch legs and about 75.5 inches with an ice machine on top. It plugs into a standard 115V outlet (NEMA 5-15P cord) and needs a drain for the melt pan. Dispensers need no minimum clearance of their own; follow the ice machine's clearance requirements.

Features:

• Touchless lever: the bucket, pitcher or glass activates the chute, not a hand
• About 9.25" of clearance from the grate to the bottom of the chute, enough for ice buckets and most tall glasses
• Built-in agitator keeps stored ice moving so the bin empties completely
• Oversized drain pan catches overflow ice and spills
• DuraTech exterior: corrosion-resistant stainless finish with a clear coat that resists fingerprints and dirt
• Front door removes easily for service and cleaning
• With an Indigo NXT ice machine on top, production can be scheduled to shut off overnight

Specifications:

• Model: SPA162-161
• Type: Freestanding touchless hotel ice dispenser
• Ice storage: Up to 120 lbs
• Ice type: Dice or half-dice cube (from the Manitowoc cuber on top)
• Accepts: 22" wide Manitowoc ice machine
• Cup clearance: 9.25" grate to chute
• Electrical: 115V, 60 Hz, single phase; 1.6 A motor; 15 A maximum fuse; 6 ft cord with NEMA 5-15P plug
• Dimensions (W x D x H): 22" x 31.2" x 54" (dispenser only, on 6" legs)
• Height with ice machine: About 75.5"
• Weight: 165 lbs
• Exterior: DuraTech
• Certifications: NSF, cULus, CE; ADA compliant
• Ice machine: Not included; sold separately

What's included: The SPA162-161 dispenser. The ice machine, any adapter kit and water filtration are ordered separately. See the SFA192-161 for the ice-and-water version of this dispenser.

Manitowoc Warranty:

3 years parts and labor on the dispenser. The ice machine on top carries its own Manitowoc warranty.

Brand / MPN: Manitowoc / SPA162-161
