Manitowoc SPA312-161, Freestanding Hotel Ice Cube Dispenser, 180 Lb Storage

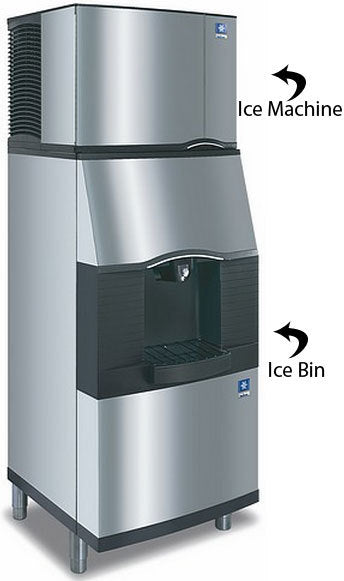

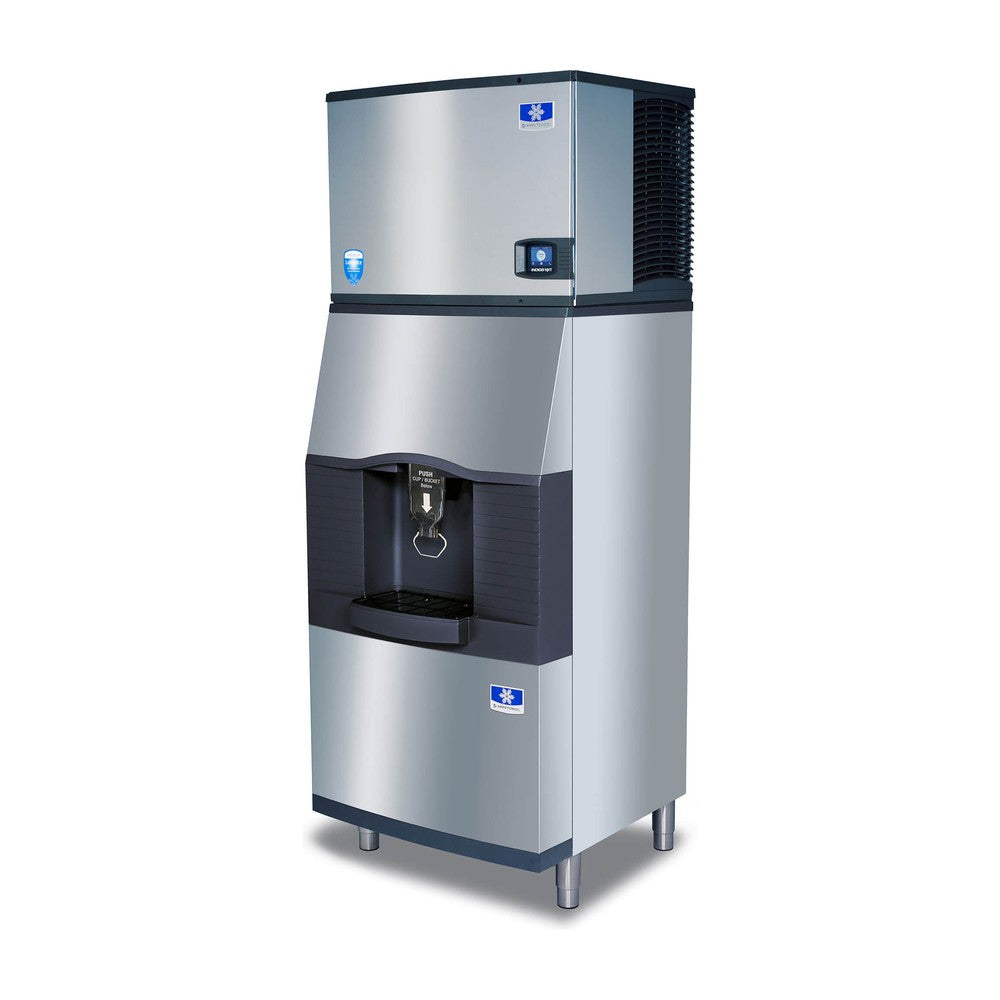

Built for busier ice stations, the SPA312-161 is a 30-inch, ice-only touchless dispenser with 180 pounds of storage, half again as much as the 22-inch model. A Manitowoc ice machine sits on top, and the container itself works the touchless lever, which keeps the dispensing area more sanitary in high-traffic hotel corridors, resorts, hospitals and large break rooms.

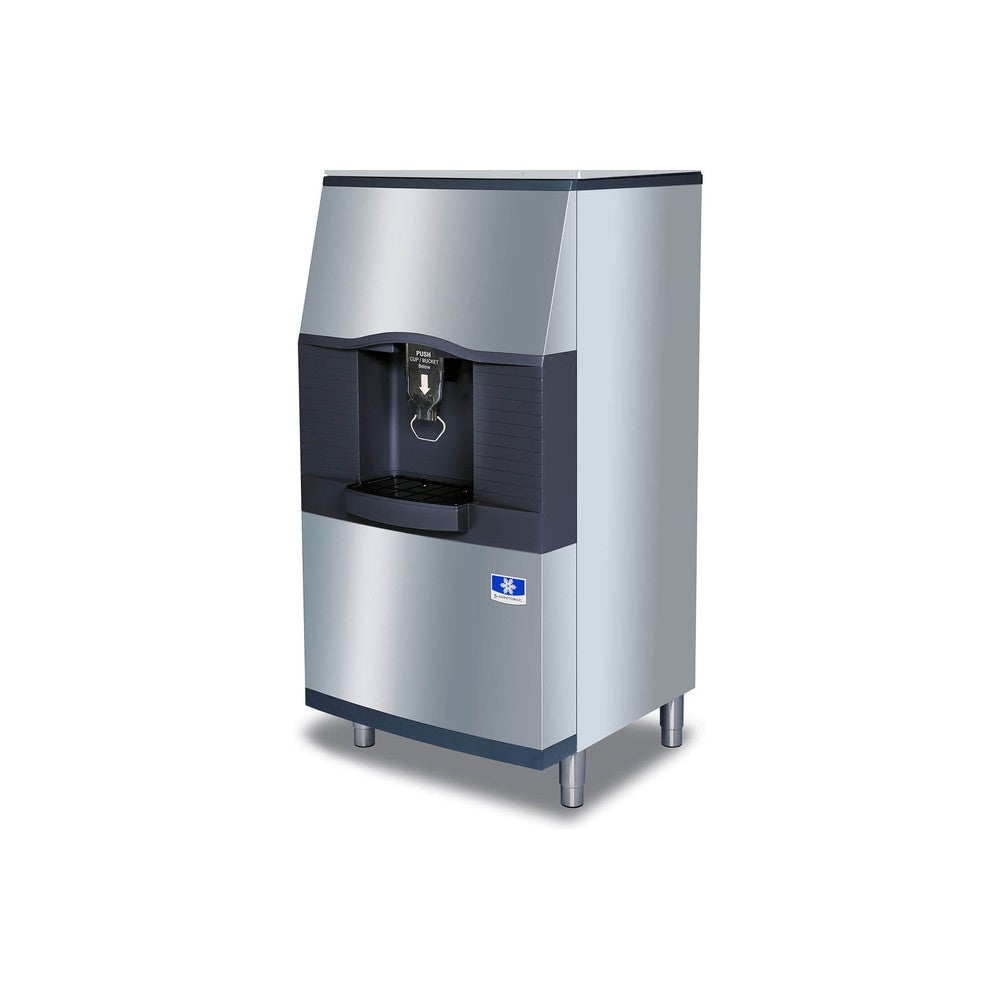

Fit and installation: This is the dispenser only; the ice machine is ordered separately. It accepts a single 30-inch or 22-inch-wide Manitowoc ice machine, and Manitowoc's spec sheet pairs it with Indigo NXT IT0300, IT0450, IT0500 and IT0750-series cubers in dice or half-dice cube. A 22-inch ice machine on this 30-inch dispenser needs Manitowoc's K-00365 adapter and K-00348 baffle (sold separately). The dispenser stands 60.5 inches tall on its 6-inch legs and about 82 inches with an ice machine on top. It plugs into a standard 115V outlet (NEMA 5-15P cord) and needs a drain for the melt pan. Dispensers need no minimum clearance of their own; follow the ice machine's clearance requirements.

Features:

• Touchless lever: the bucket, pitcher or glass activates the chute, not a hand
• About 9.25" of clearance from the grate to the bottom of the chute, enough for ice buckets and most tall glasses
• Built-in agitator keeps stored ice moving so the bin empties completely
• Oversized drain pan catches overflow ice and spills
• DuraTech exterior: corrosion-resistant stainless finish with a clear coat that resists fingerprints and dirt
• Front door removes easily for service and cleaning
• With an Indigo NXT ice machine on top, production can be scheduled to shut off overnight

Specifications:

• Model: SPA312-161
• Type: Freestanding touchless hotel ice dispenser
• Ice storage: Up to 180 lbs
• Ice type: Dice or half-dice cube (from the Manitowoc cuber on top)
• Accepts: 30" or 22" wide Manitowoc ice machine (22" needs K-00365 adapter and K-00348 baffle)
• Cup clearance: 9.25" grate to chute
• Electrical: 115V, 60 Hz, single phase; 1.6 A motor; 15 A maximum fuse; 6 ft cord with NEMA 5-15P plug
• Dimensions (W x D x H): 30" x 32" x 60.5" (dispenser only, on 6" legs)
• Height with ice machine: About 82"
• Weight: 209 lbs
• Exterior: DuraTech
• Certifications: NSF, cULus, CE; ADA compliant
• Ice machine: Not included; sold separately

What's included: The SPA312-161 dispenser. The ice machine, any adapter kit and water filtration are ordered separately. See the SFA292-161 for the ice-and-water version of this dispenser.

Manitowoc Warranty:

3 years parts and labor on the dispenser. The ice machine on top carries its own Manitowoc warranty.

Brand / MPN: Manitowoc / SPA312-161
