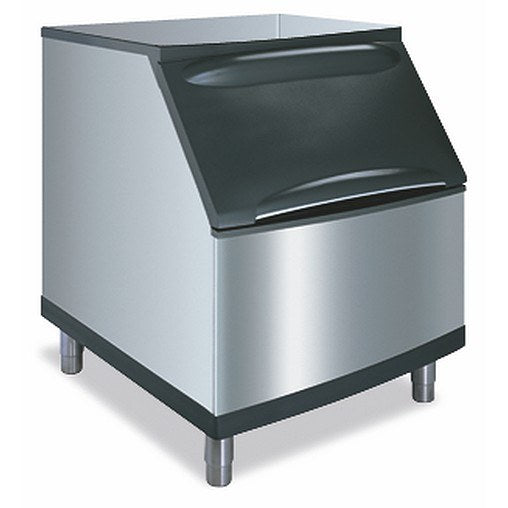

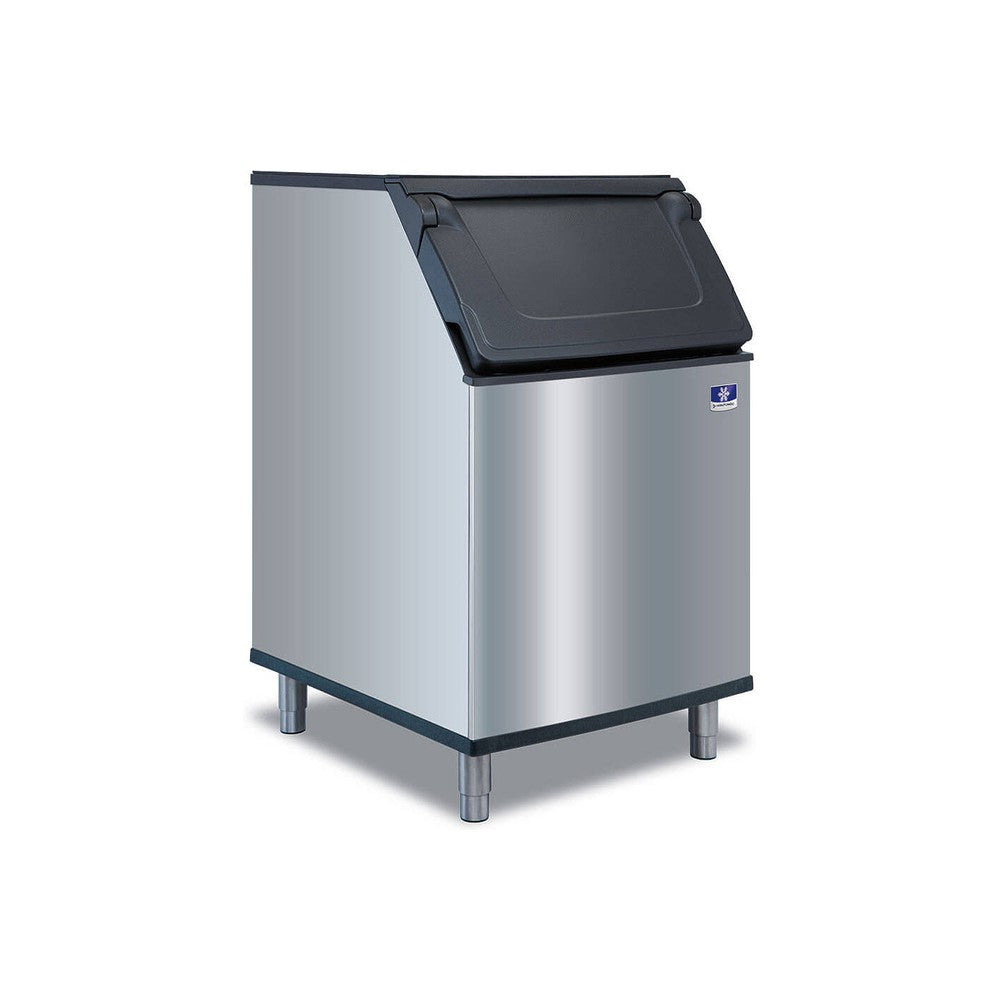

Manitowoc D570, 30" 532 Lb Ice Storage Bin, DuraTech Exterior

Model Specifics: 532 lb ice storage · 30" wide · 50" height · For 30" cubers through the 1200 series · DuraTech exterior

30" Ice Bin for Mid-Size Cubers:

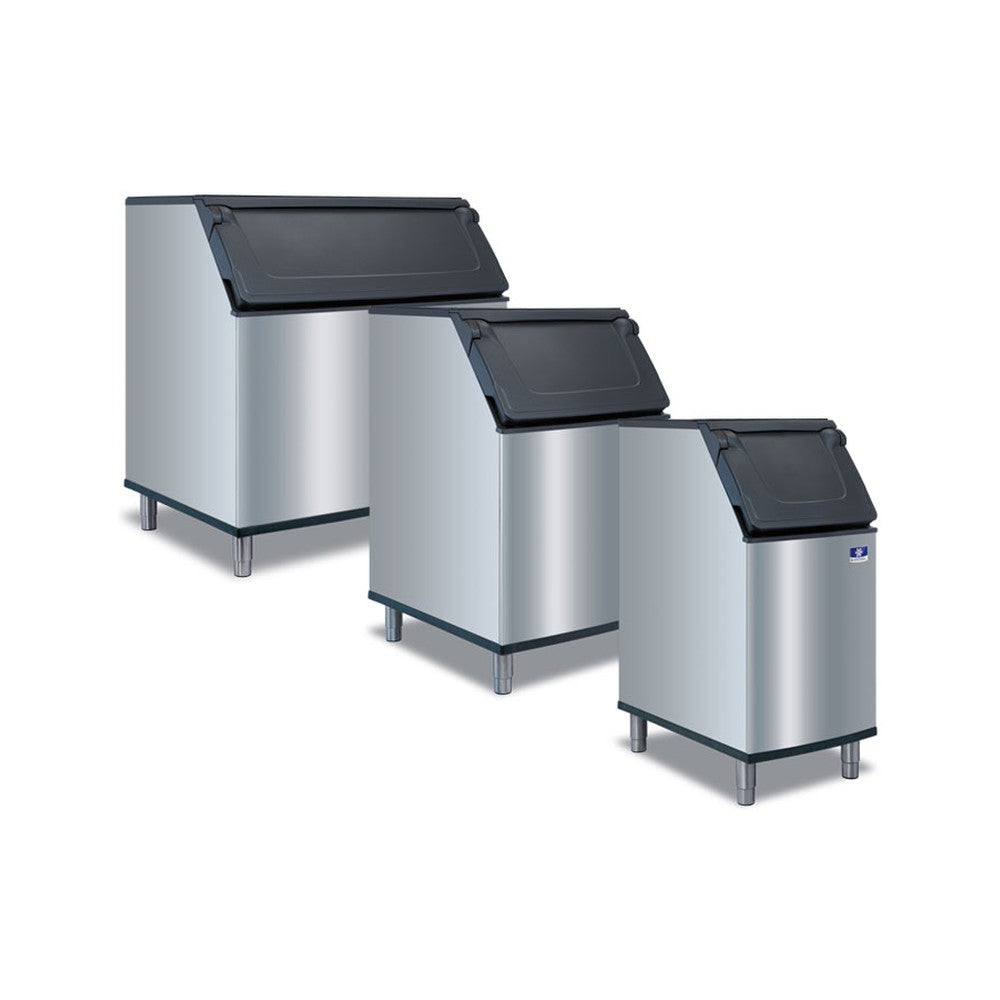

The D570 is the 50-inch-tall, 30-inch-wide member of the D-style family, storing up to 532 lbs of ice. It pairs with 30-inch Indigo NXT cube machines from the 0300 through the 1200 series and with 30-inch RNF1100 nugget and RFF1300 flake machines, which makes it one of the most versatile bins in the line for restaurants, hotels and healthcare kitchens.

Compatible ice machines (per Manitowoc's application chart):

• 30" Indigo NXT cube machines, 0300 through 1200 series (no adapter needed)
• 22" Indigo NXT 0420 and 0620 cubers with adapter K00472
• RFP0320, RNP0620 and RFP0620 with adapter K00472
• 30" RNF1100 nugget and RFF1300 flake machines (no adapter needed)
• Not recommended: 1400/1800 dual-evaporator models and RNP0320

Machines installed side by side must be water-cooled, remote or have a top air discharge. An ice machine wider than the bin cannot be used. Ice machine and adapter kits are sold separately.

Features:

• Angled, foamed-insulated door opens at 53 degrees for easier scooping from the bottom of the bin, reduces sweating and keeps ice longer
• Stay-up cammed door latch holds the door open while scooping
• Built-in side grips let you lift the door one-handed from the left, right or center
• Built-in scoop holder keeps the scoop handle above the ice line (optional external holder K00461 sold separately)
• DuraTech metal exterior: better corrosion resistance than stainless steel, smudge resistant and easy to clean
• Arctic Blue polyurethane bin liner
• 3/4" bin drain
• NSF approved sanitary ice scoop (about 5.3 lbs per scoop) and adjustable 6" to 7.75" chrome legs included

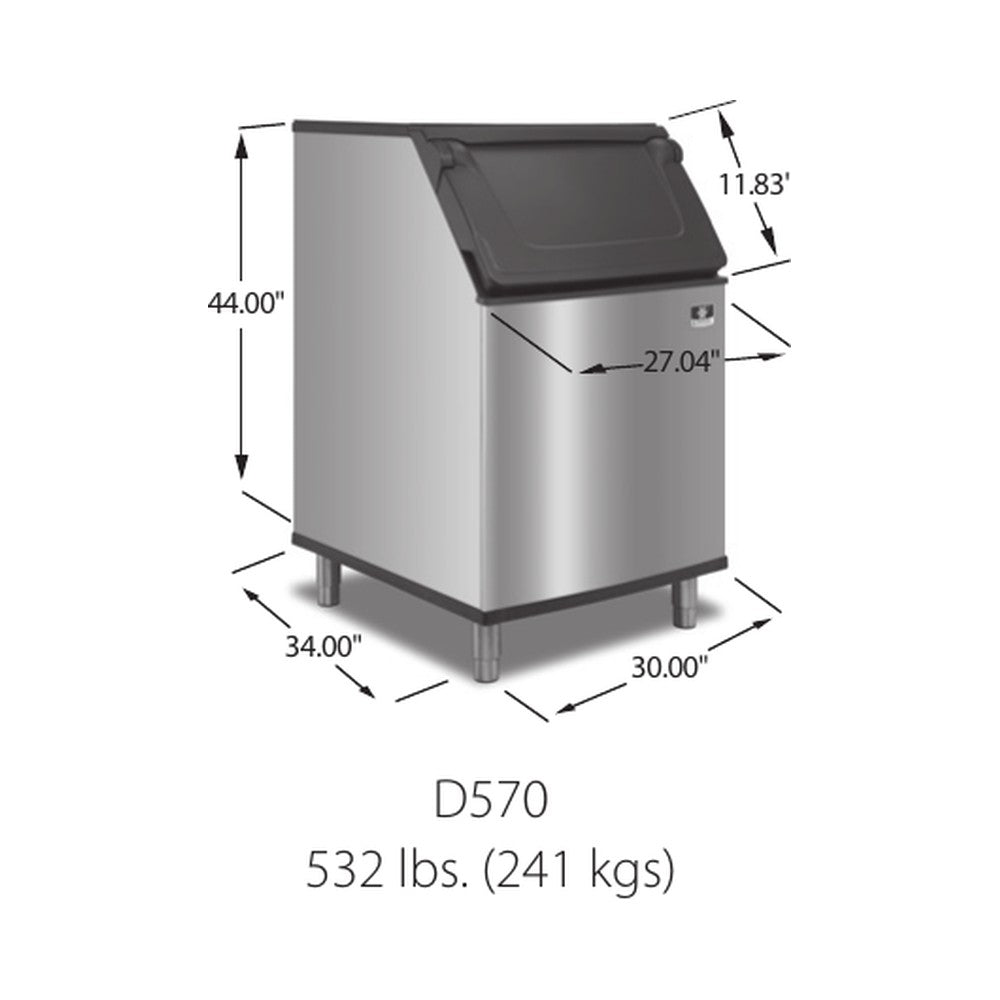

Specifications:

• Model: D570
• Ice storage: 532 lbs (application capacity)
• AHRI certified volume: 17.9 cu. ft.
• Width: 30"
• Depth: 34"
• Height: 50" (includes 6" legs)
• Weight: 115 lbs
• Exterior: DuraTech
• Certification: NSF

Good to know: Running a 48" machine or need more storage? See the 48" D970 (882 lbs).

Manitowoc Limited Commercial Warranty:

• Bin and accessories: Three (3) years parts and labor

Brand / MPN: Manitowoc / D570
