Hoshizaki HS-2033, 8" Top Kit
Description
Description
Model Specifics: 8" ABS top kit · For 30" B-250SF and B-500SF bins, plus B-900SF · Closes an 8" gap beside the ice machine
8-Inch Top Kit for 22" Ice Machines on 30" Bins:

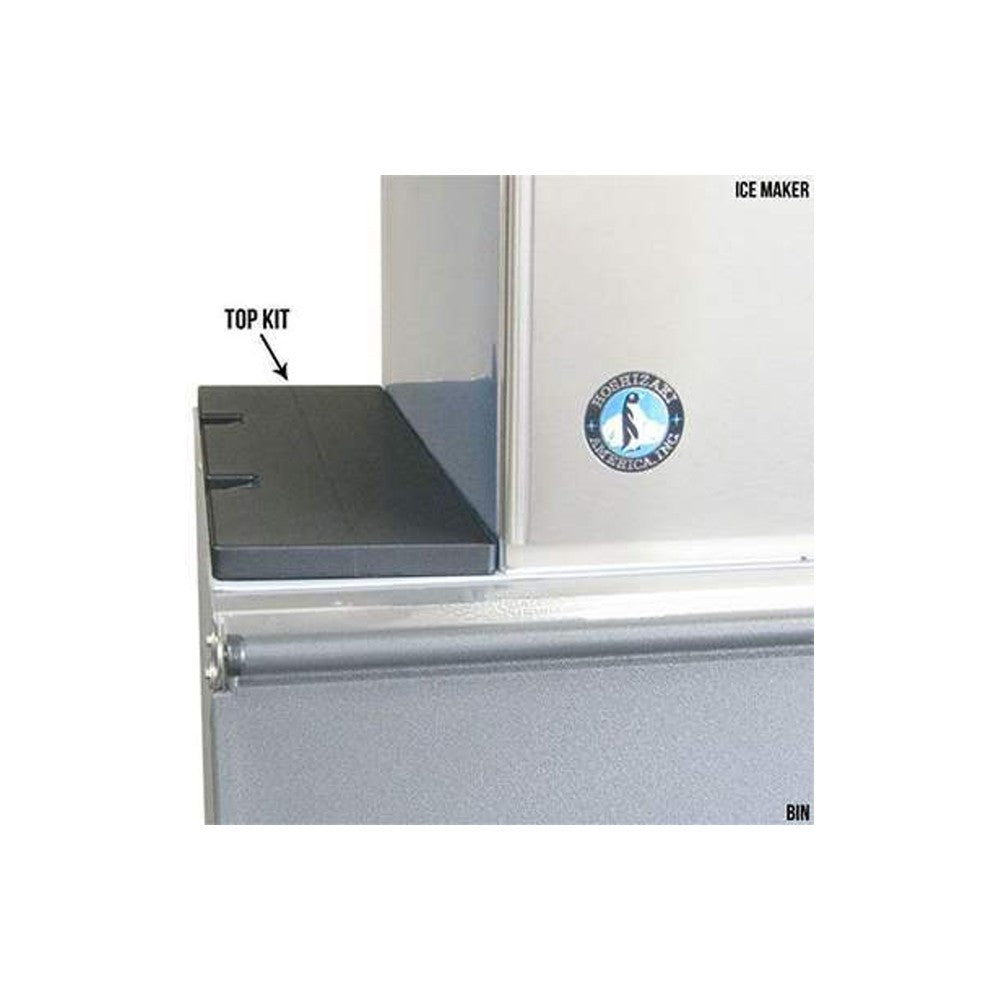

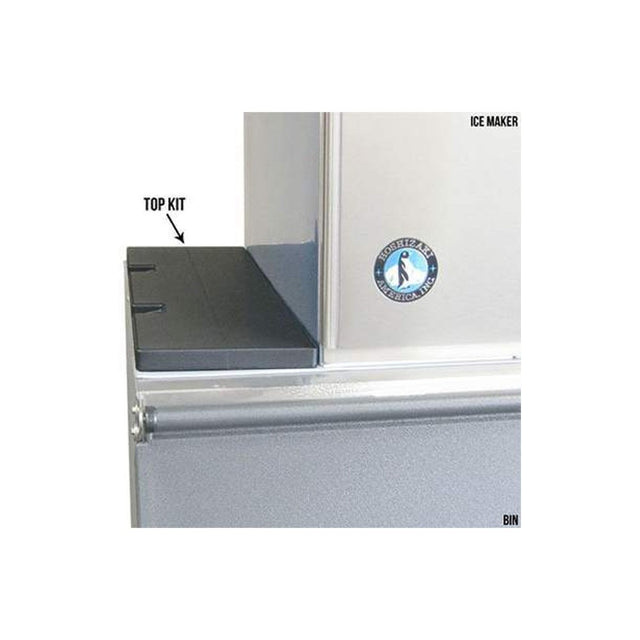

Put a 22-inch Hoshizaki cuber or flaker on a 30-inch bin and 8 inches of the bin top are left uncovered. The HS-2033 is the molded ABS panel made for exactly that gap, so ice stays protected and the stack looks finished.
It is the go-to kit for the B-250SF low-profile bin and the B-500SF. On the 52-inch B-900SF it closes the space left by two 22-inch heads, or works with the HS-2035 under a single 22-inch machine.
Where It Fits:
- B-250SF or B-500SF with a 22" KM-350M, KM-520M, KM-660M, F-450M, F-801M or F-1002M: HS-2033 alone
- B-250SF or B-500SF with a 22" KMD-410M, KMS-822M, FD-650M-C, FD-1002M-C or F-622/822/1022MAK-C: HS-2033 + HS-2129
- B-900SF with two 22" machines (2 x KM-350M/520M/660M, IM-500S, 2 x F-450M/801M/1002M): HS-2033 alone
- B-900SF with one 22" KM or F model: HS-2033 + HS-2035
- B-900SF with one 22" KMD/KMS/FD model: HS-2033 + HS-2035 + HS-2132
- B-900SF with two 22" KMD-410M or FD/F-MAK-C units: HS-2033 + HS-2132
What's Included:
- One 8" ABS top kit
Installation Notes:
- Set the ice machine on the bin first, then seat the top kit in the open section of the bin top beside it so the bin opening is fully closed.
- Use only the combination shown for your bin and ice machine; some setups need a second kit, listed above.
- Follow the ice machine and bin instruction manuals for leveling, drain and water connections. Questions about fit? Contact us with your bin and ice machine model numbers before you order.
Fit is based on Hoshizaki's Top Kit Matrix (March 2026). Base model numbers are shown; send us your full model number if you want us to confirm fit.
Brand / MPN: Hoshizaki / HS-2033
Specifications
Specifications
| CATEGORY | Adapters |
|---|---|
| DIMENSIONS | 8" W (W" x D" X H") |
| EQUIPMENT MODELS THIS PART WORKS WITH | Bins: B-250SF, B-500SF, B-900SF B-250SF/B-500SF: 22" units alone (KM-350M, KM-520M, KM-660M, F-450M, F-801M, F-1002M); 22" KMD/KMS/FD units with HS-2129 (KMD-410M, KMS-822M, FD-650M-C, FD-1002M-C, F-622MAK-C, F-822MAK-C, F-1022MAK-C) B-900SF: 2 x 22" units alone (2 x KM-350M / KM-520M / KM-660M, IM-500S, 2 x F-450M / F-801M / F-1002M); 22" units with HS-2035; 22" KMD/KMS/FD units with HS-2035 + HS-2132; 2 x 22" KMD/FD units with HS-2132 (2 x KMD-410M, 2 x FD-650M-C / FD-1002M-C, 2 x F-622MAK-C / F-822MAK-C / F-1022MAK-C) |
| EXTERIOR | ABS |
| INCLUDES | 1 x 8" ABS top kit |
| NOTE | 8" ABS filler; a 22" machine on a 30" bin leaves 8" open |
Spec Sheet (PDF)
