Hoshizaki HS-2034, 14" Top Kit

Model Specifics: 14" ABS top kit · For 30" ice machines on B-700SF and B-800SF bins · Closes a 14" gap

14-Inch Top Kit for 30" Ice Machines on 44" Bins:

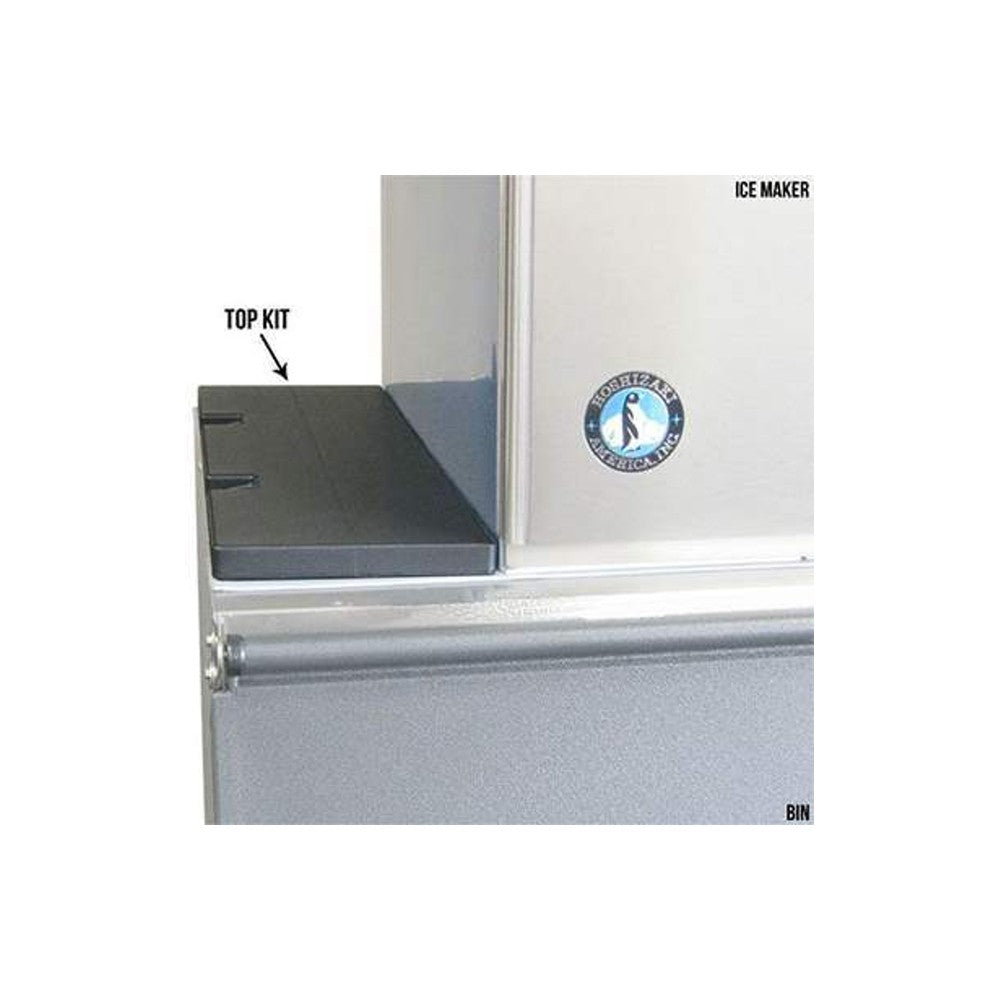

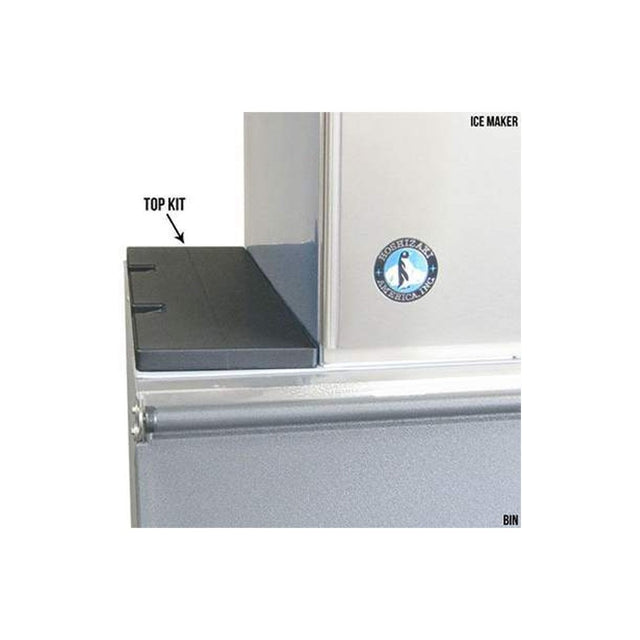

A 30-inch Hoshizaki modular head on the 44-inch B-700SF leaves a 14-inch section of bin top exposed. The HS-2034 is the molded ABS cover sized for that opening, keeping warm room air and debris out of the ice.

On the 48-inch B-800SF the same kit is paired with the 4-inch HS-2032 to make up the extra width. Deeper KMD and KMS models also need Hoshizaki's rear extension kit for the bin they sit on.

Where It Fits:

• B-700SF with a 30" KM-901M, KM-1100M, KM-1340M, KM-1601M, KML series, F-1501M or F-2001M: HS-2034 alone
• B-700SF with a 30" KMD-355M, KMD-505M, KMD-705M, KMD-460M, KMD-530M, KMD-860M, KMS-1402M or KMS-2000M: HS-2034 + HS-2130
• B-800SF with a 30" KM, KML or F model: HS-2034 + HS-2032
• B-800SF with a 30" KMD or KMS model: HS-2034 + HS-2032 + HS-2131

What's Included:

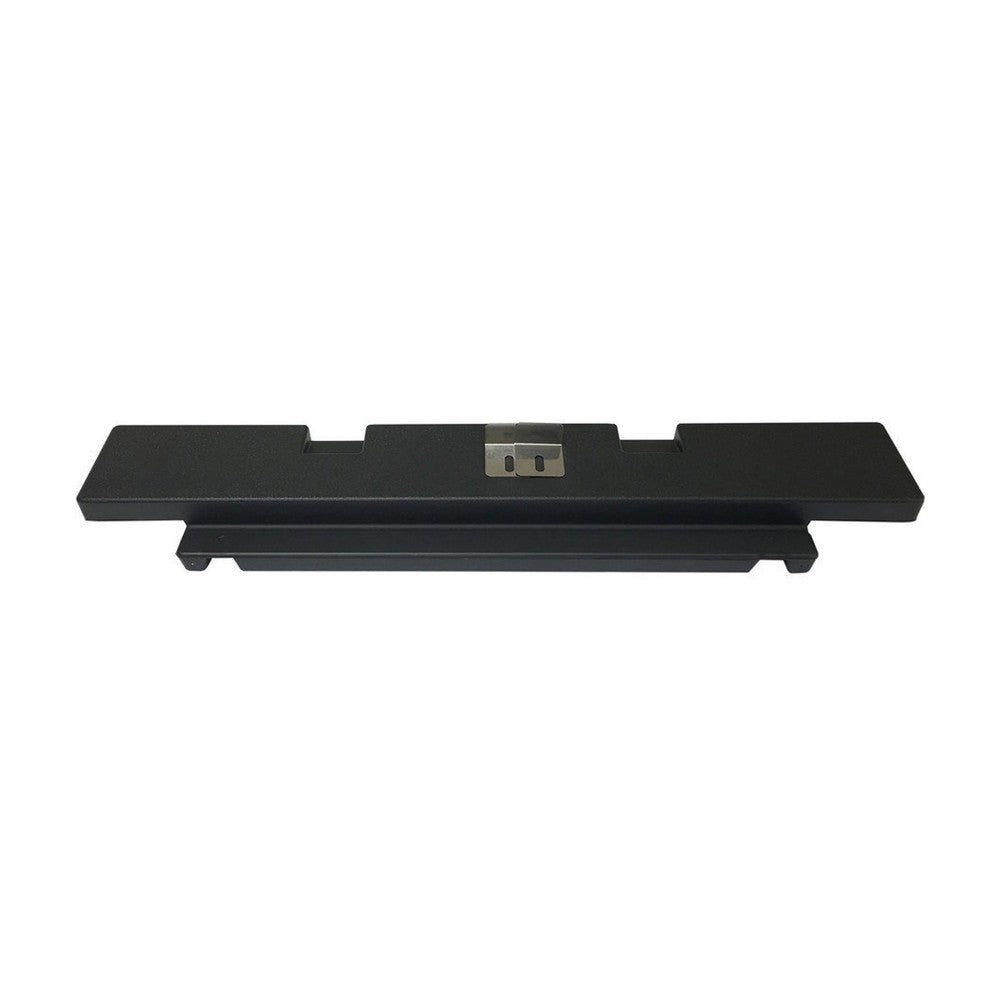

• One 14" ABS top kit

Installation Notes:

• Set the ice machine on the bin first, then seat the top kit in the open section of the bin top beside it so the bin opening is fully closed.
• Use only the combination shown for your bin and ice machine; some setups need a second kit, listed above.
• Follow the ice machine and bin instruction manuals for leveling, drain and water connections. Questions about fit? Contact us with your bin and ice machine model numbers before you order.
• Air-cooled KMD-460MAJ and KMD-530MAJ also require Hoshizaki's HS-5065 front panel filter kit.

Fit is based on Hoshizaki's Top Kit Matrix (March 2026). Base model numbers are shown; send us your full model number if you want us to confirm fit.

Brand / MPN: Hoshizaki / HS-2034
