Hoshizaki HS-2035, 22" Top Kit
Description
Description
Model Specifics: 22" ABS top kit · For B-700SF, B-800SF and B-900SF bins · Closes a 22" gap
22-Inch Top Kit for Single Machines on Wide Bins:
The HS-2035 is the largest ABS filler Hoshizaki makes. It covers a 22-inch run of bin top, which is the space left when a single 22-inch machine is mounted on a 44-inch B-700SF, or when a 30-inch machine sits on the 52-inch B-900SF.
That lets you start with one smaller ice machine on a big bin and add capacity later. On the B-800SF and B-900SF it combines with the HS-2032 or HS-2033 to close the remaining width.
Where It Fits:
- B-700SF with a 22" KM-350M, KM-520M, KM-660M, F-450M, F-801M or F-1002M: HS-2035 alone
- B-700SF with a 22" KMD-410M, KMS-822M or FD/F-MAK-C model: HS-2035 + HS-2130
- B-800SF with a 22" KM or F model: HS-2035 + HS-2032
- B-800SF with a 22" KMD/KMS/FD model: HS-2035 + HS-2032 + HS-2131
- B-900SF with a 30" KM-901M, KM-1100M, KM-1340M, KM-1601M, KML series, F-1501M or F-2001M: HS-2035 alone
- B-900SF with a 22" KM or F model: HS-2035 + HS-2033
- B-900SF with a 22" KMD/KMS/FD model: HS-2035 + HS-2033 + HS-2132
- B-900SF with a 30" KMD or KMS-1402M/2000M: HS-2035 + HS-2132
What's Included:
- One 22" ABS top kit
Installation Notes:

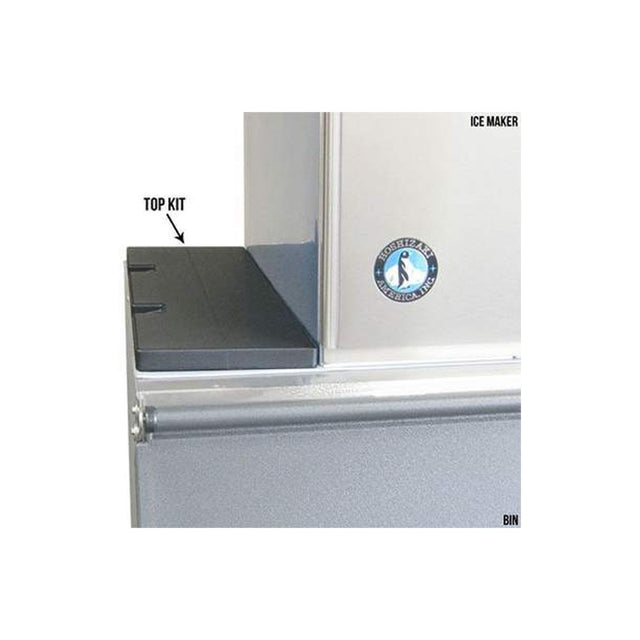

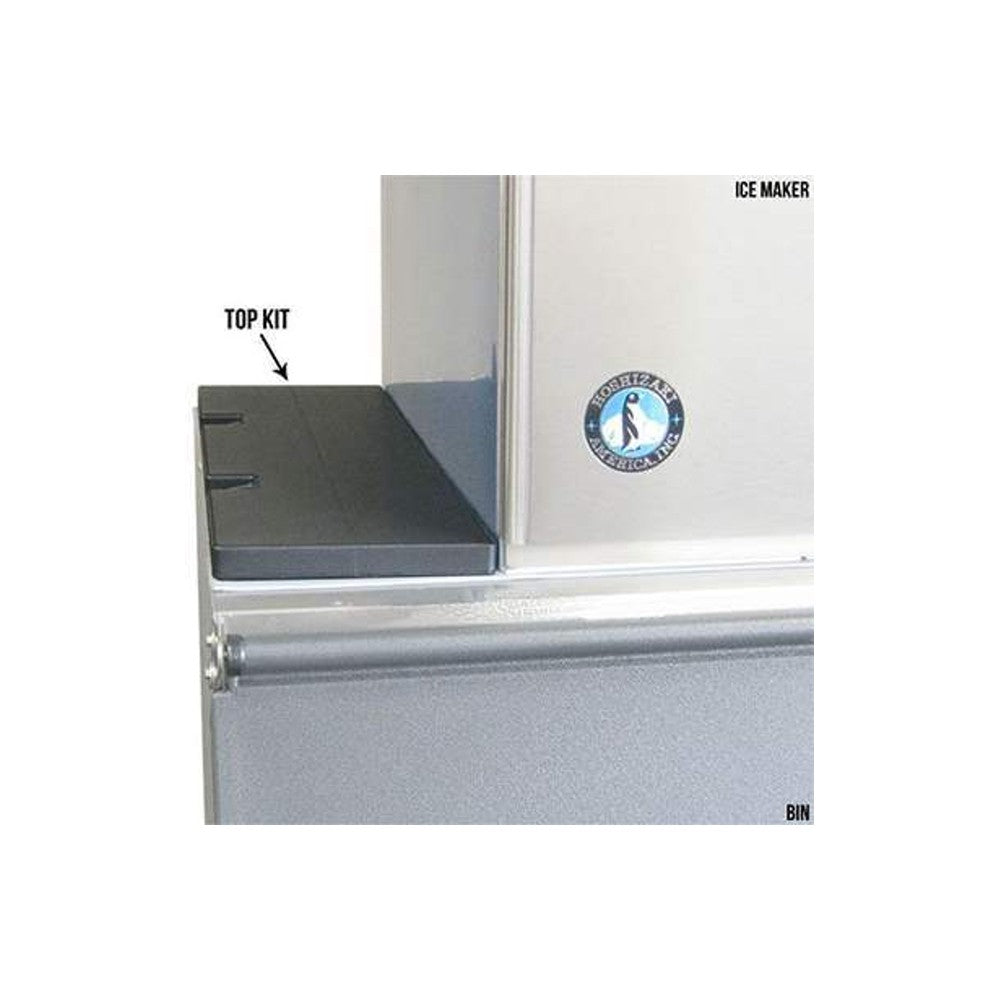

- Set the ice machine on the bin first, then seat the top kit in the open section of the bin top beside it so the bin opening is fully closed.
- Use only the combination shown for your bin and ice machine; some setups need a second kit, listed above.
- Follow the ice machine and bin instruction manuals for leveling, drain and water connections. Questions about fit? Contact us with your bin and ice machine model numbers before you order.
Fit is based on Hoshizaki's Top Kit Matrix (March 2026). Base model numbers are shown; send us your full model number if you want us to confirm fit.
Brand / MPN: Hoshizaki / HS-2035
Specifications
Specifications
| CATEGORY | Adapters |
|---|---|
| DIMENSIONS | 22" W (W" x D" X H") |
| EQUIPMENT MODELS THIS PART WORKS WITH | Bins: B-700SF, B-800SF, B-900SF B-700SF: 22" units alone (KM-350M, KM-520M, KM-660M, F-450M, F-801M, F-1002M); 22" KMD/KMS/FD units with HS-2130 (KMD-410M, KMS-822M, FD-650M-C, FD-1002M-C, F-622MAK-C, F-822MAK-C, F-1022MAK-C) B-800SF: 22" units with HS-2032; 22" KMD/KMS/FD units with HS-2032 + HS-2131 B-900SF: 30" units alone (KM-901M, KM-1100M, KM-1340M, KM-1601M, KML series, F-1501M, F-2001M); 22" units with HS-2033; 22" KMD/KMS/FD units with HS-2033 + HS-2132; 30" KMD/KMS units with HS-2132 (KMD-355M, KMD-505M, KMD-705M, KMD-460M, KMD-530M, KMD-860M, KMS-1402M, KMS-2000M) |
| EXTERIOR | ABS |
| INCLUDES | 1 x 22" ABS top kit |
| NOTE | 22" ABS filler; the widest kit in the ABS family |
Spec Sheet (PDF)
