Hoshizaki HS-2130, Top Kit for B-700 Ice Bin
Description
Description
Model Specifics: Top kit extension · For the 44" B-700SF bin · KMD, KMS and FD ice machines
Rear Extension Kit for KMD, KMS and FD Machines on the B-700SF:
The HS-2130 is Hoshizaki's 44-inch extension bracket. It fastens along the back of a B-700SF so a deeper KMD, KMS or FD machine is fully supported and sealed to the bin instead of hanging past the rear edge.
With two 22-inch FD or F-MAK-C cubelet machines side by side, this kit is all you need. A single 30-inch KMD or KMS adds the 14-inch HS-2034, and a single 22-inch KMD/KMS/FD model adds the 22-inch HS-2035.
Where It Fits:
- B-700SF with two 22" FD-650M-C, FD-1002M-C or F-622/822/1022MAK-C units: HS-2130 alone
- B-700SF with a 30" KMD-355M, KMD-505M, KMD-705M, KMD-460M, KMD-530M, KMD-860M, KMS-1402M or KMS-2000M: HS-2130 + HS-2034
- B-700SF with a 22" KMD-410M, KMS-822M or FD/F-MAK-C model: HS-2130 + HS-2035
- Not for two KMD-410M units side by side, or for KMS-1122MLJ
What's Included:
- 1 extension bracket for 44" wide bins (Hoshizaki part 3A4931G01)
- 5 self-tapping hex head screws (#12 x 3/4")
- 2 strips of foam tape (1118 mm length)
- 2 mounting brackets
- 2 stainless steel hex head bolts (5 x 12 mm)
Installation Notes:

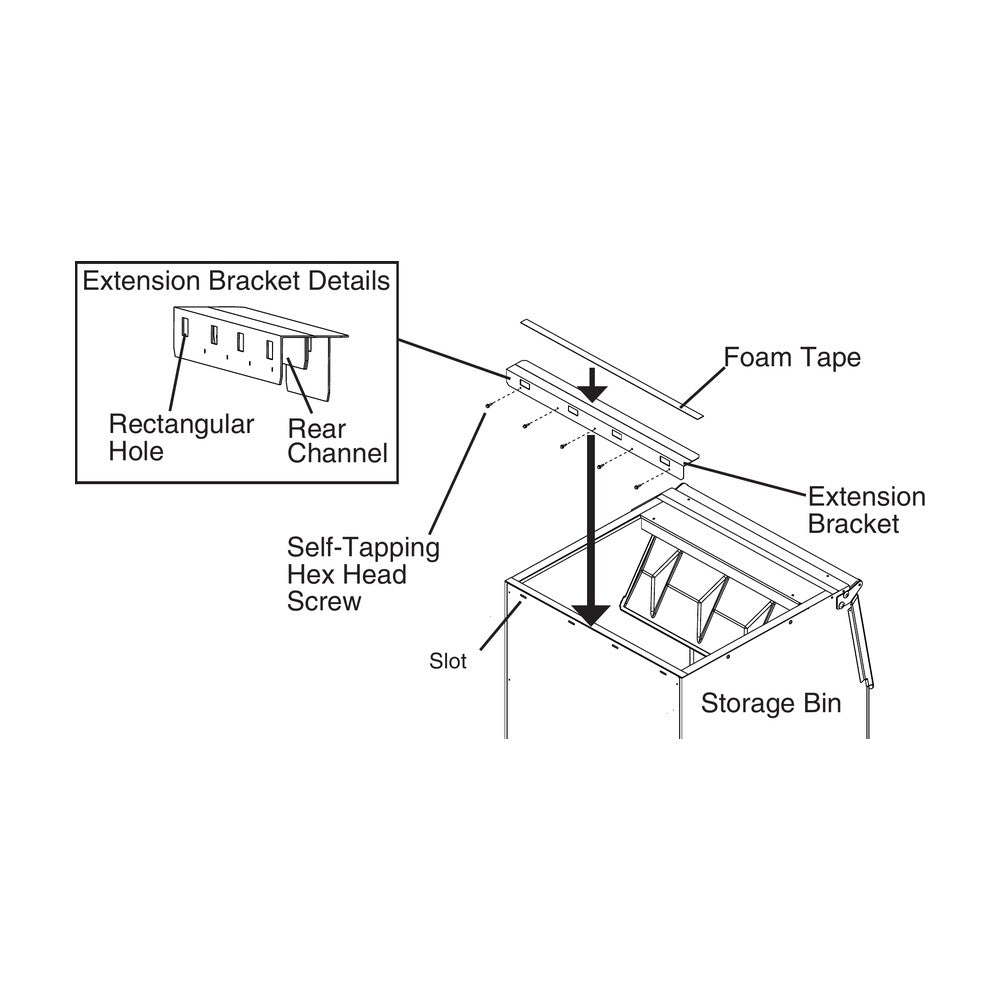

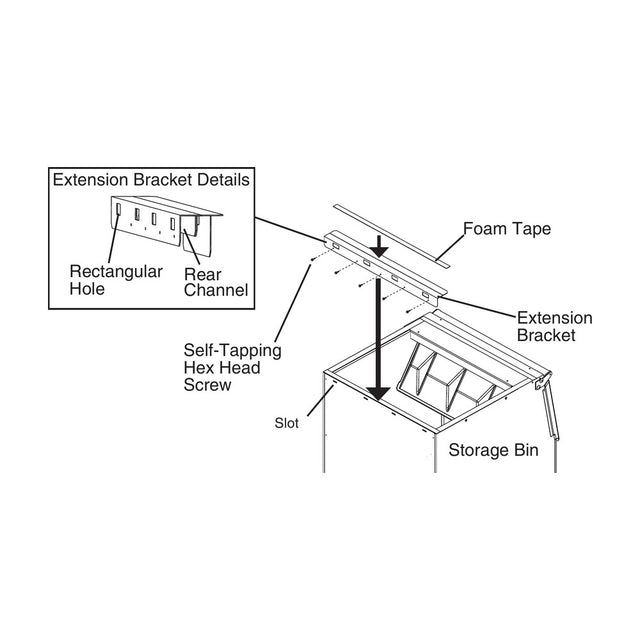

- The bracket fits over the rear of the bin and is fastened with the self-tapping screws through the bin's slots.
- Foam tape goes on top of the bracket and across the front of the bin top so the ice machine seals to the bin; Hoshizaki gives a trim measurement for KMD and KMS units.

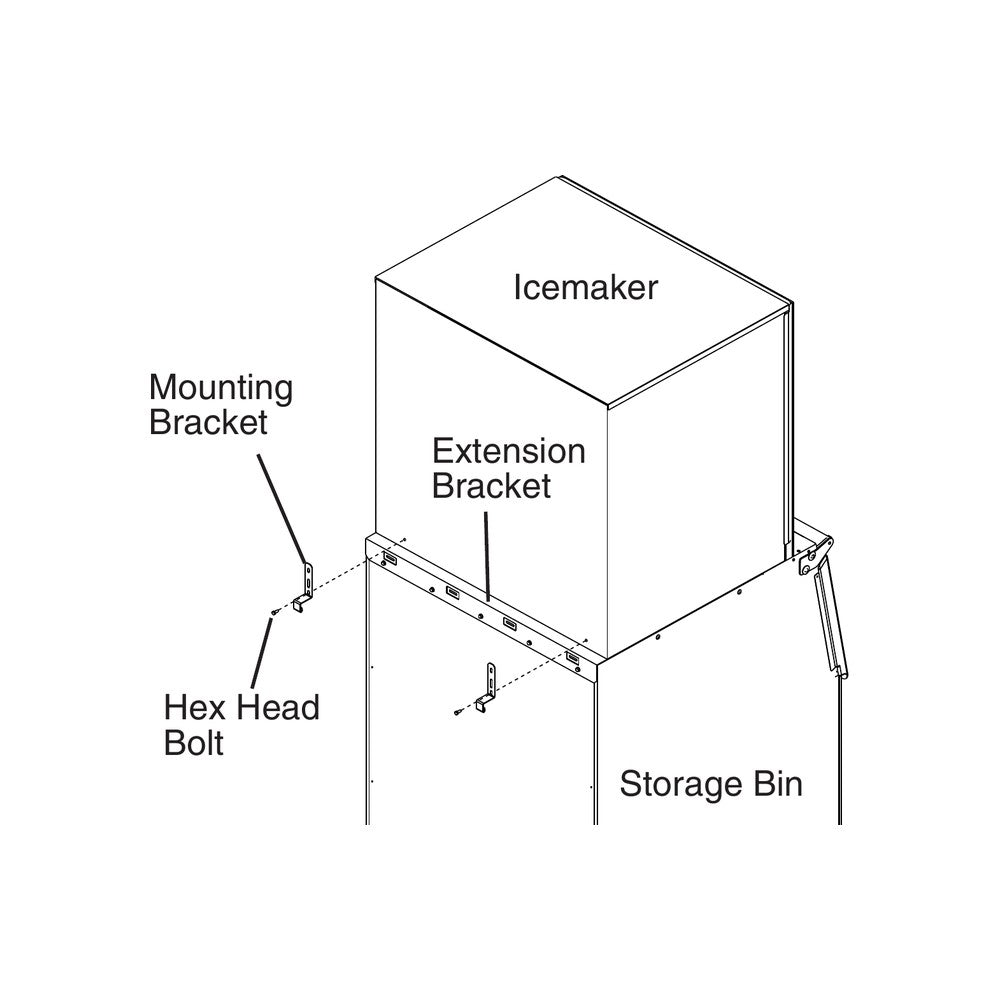

- After the ice machine is set in place, lock it to the bin with the two mounting brackets and stainless bolts, then level the bin legs.
- Remove the ice machine's panels before lifting it into place to avoid damage.
- Air-cooled KMD-460MAJ and KMD-530MAJ also require Hoshizaki's HS-5065 front panel filter kit.
Hoshizaki installation instructions: download PDF
Fit is based on Hoshizaki's Top Kit Matrix (March 2026). Base model numbers are shown; send us your full model number if you want us to confirm fit.
Brand / MPN: Hoshizaki / HS-2130
Specifications
Specifications
| CATEGORY | Adapters |
|---|---|
| EQUIPMENT MODELS THIS PART DOESNT WORK WITH | KMS-1122MLJ; 2 x KMD-410M side by side |
| EQUIPMENT MODELS THIS PART WORKS WITH | Bins: B-700SF (44" wide) Ice machines: 2 x 22" FD/F-MAK-C units alone (2 x FD-650M-C / FD-1002M-C, 2 x F-622MAK-C / F-822MAK-C / F-1022MAK-C); 30" KMD/KMS units with HS-2034 (KMD-355M, KMD-505M, KMD-705M, KMD-460M, KMD-530M, KMD-860M, KMS-1402M, KMS-2000M); 22" KMD/KMS/FD units with HS-2035 (KMD-410M, KMS-822M, FD-650M-C, FD-1002M-C, F-622MAK-C, F-822MAK-C, F-1022MAK-C) |
| INCLUDES | Extension bracket 3A4931G01, 5 self-tapping screws, 2 foam tape strips (1118 mm), 2 mounting brackets, 2 SS hex bolts |
| NOTE | Rear extension for deeper KMS, KMD and FD machines on 44" wide bins |
Spec Sheet (PDF)
