Turbo Air TCBE-96SDR-N, 96-3/8" 4 Drawer Refrigerated Chef Base
Turbo Air TCBE-96SDR-N, 96-3/8" 4 Drawer Refrigerated Chef Base is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

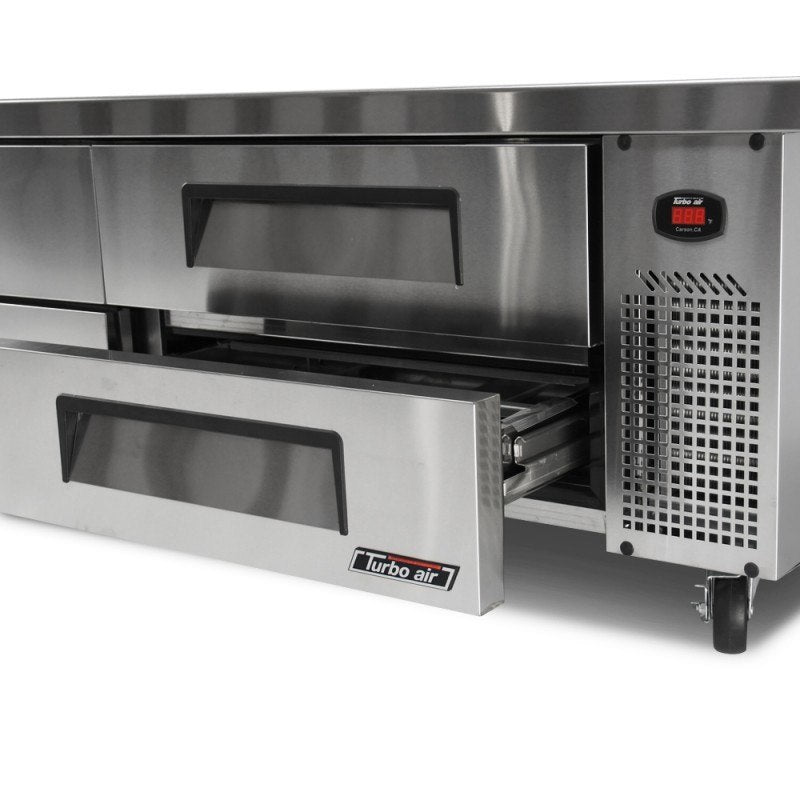

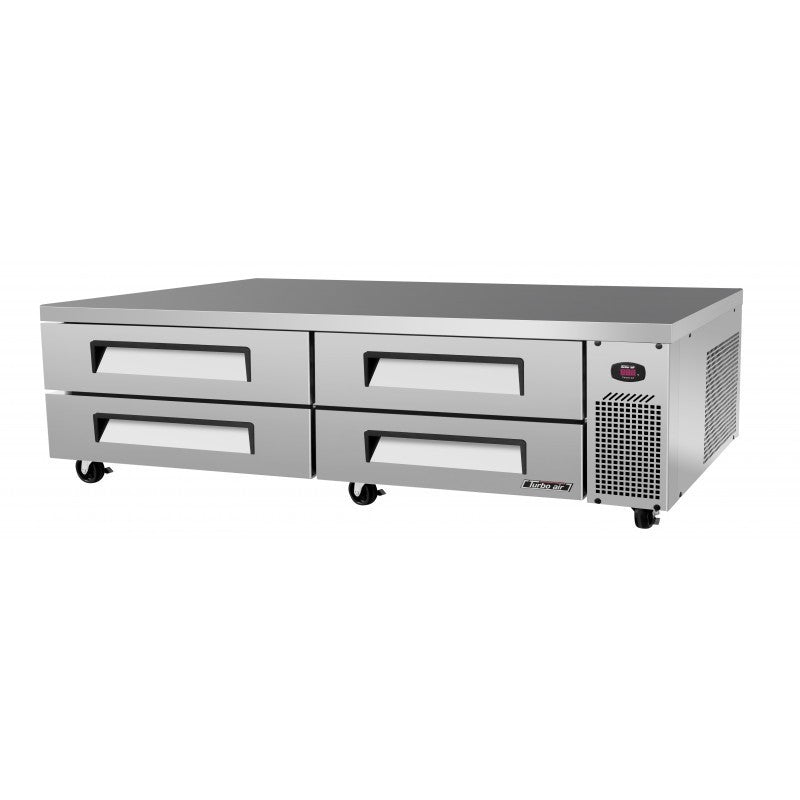

The Turbo Air TCBE-96SDR-N is a 96-3/8" wide 4 drawer refrigerated chef base from Turbo Air's Super Deluxe series. It sits under griddles, charbroilers and other countertop cooking equipment and keeps proteins and prepped food cold right at the line. It offers 18.6 cu. ft. of storage.
Standard features include:
- Self-cleaning condenser device

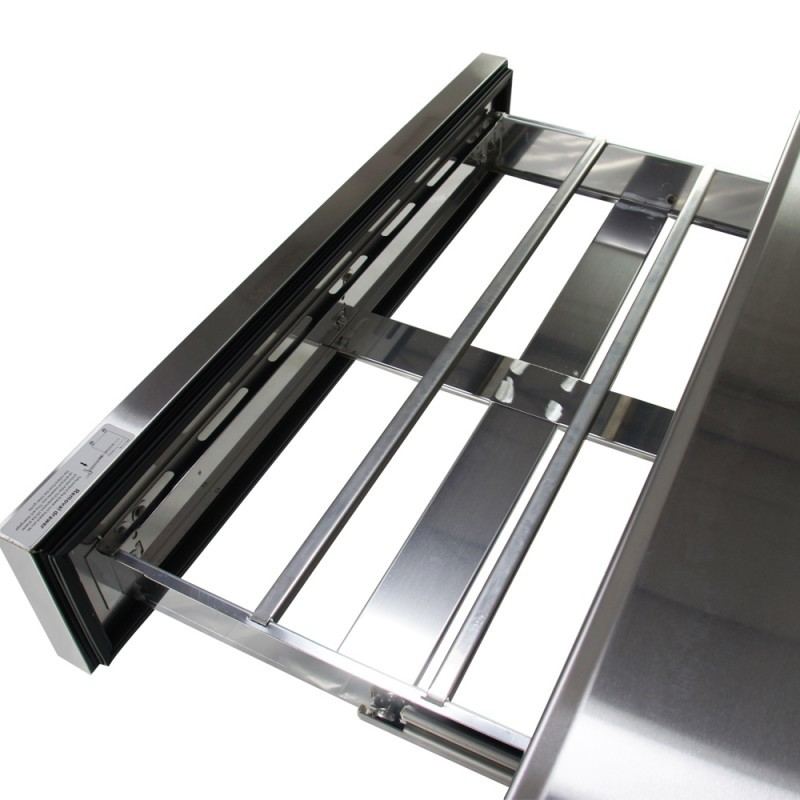

- (4) durable drawers with recessed handles
- Capacity: (3) full size pans per drawer (NOT included) 16 ga. stainless steel one-piece reinforced insulated top
- Stainless steel front & sides
- Digital temperature display
Specifications:
- Model: TCBE-96SDR-N
- Exterior dimensions (W x D x H): 96-3/8" x 32" x 20-1/4" (height without 5" casters)
- Capacity: 18.6 cu. ft.
- Drawers: 4
- Temperature range: 33°F to 38°F
- Compressor: 2/5 HP, R-290 refrigerant
- Electrical: 115V/60Hz/1-ph, 6.3 amps, NEMA 5-15P
- Net / shipping weight: 484 lb / 517 lb
- Warranty: 5 years parts & labor, 7 years compressor (manufacturer)
Good to know:
On the TCBE-96SDR-N, the 20-1/4" height on the spec sheet does not include the 5" casters, so measure your opening against the total before ordering. Allow an extra 1" behind the 32" cabinet depth for the rear spacers. It runs on a standard 115V NEMA 5-15P outlet and draws 6.3 amps.
Specifications
Specifications
| AMPS | 6.3 |
|---|---|
| CUBIC FEET | 18.6 |
| DIMENSIONS | 96-3/8" x 32" x 20-1/4" (W" x D" X H") |
| DRAWERS | 4 |
| EXTERIOR | Stainless Steel |
| HP | 2/5 |
| INTERIOR | Stainless Steel |
| OEMS | TCBE-96SDR |
| PHASE | 1 |
| POWER | NEMA 5-15P |
| VOLTS | 115 |
| WARRANTY | 5 Years Parts & Labor, 7 Years Compressor |
| WEIGHT | 484 lb |
Spec Sheet (PDF)
