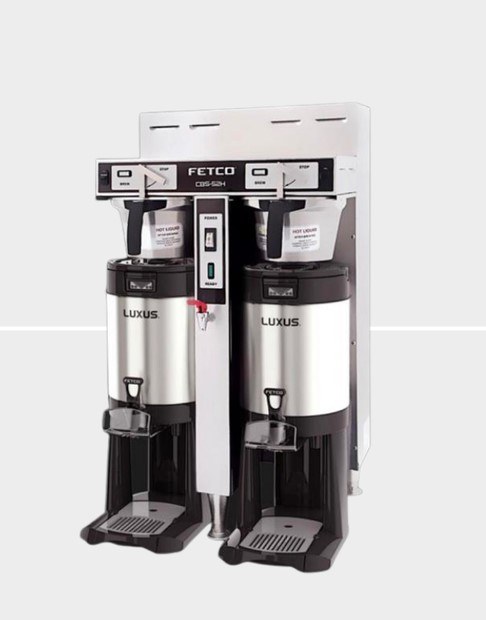

Fetco CBS-52H-15 (C52046), Handle Operated Twin Thermal Server Coffee Brewer, 9.1-12.1 kW, 120/208-240V 3-Ph

The Fetco CBS-52H-15 (C52046) is a twin handle-operated brewer that fills two 1.5-gallon thermal servers. This configuration comes with stainless steel brew baskets and is set up for 9.1-12.1 kW, 120/208-240V three-phase.

Best for:

• Restaurants and cafeterias serving two coffees
• Banquet and catering refill stations
• Operators who prefer one-pull brewing

Key specifications:

• Model: CBS-52H-15 (configuration code C52046)
• Brew stations: 2
• Output: up to 475 8 oz cups per hour
• Brews into: two 1.5 gal thermal servers
• Tank capacity: 3 gal
• Brew basket: Stainless steel brew baskets
• Paper filter size: 15" x 5 1/2"
• Electrical: 9.1-12.1 kW, 120/208-240V three-phase
• Water connection: 3/8" male flare, 1.5 gpm minimum, 20-75 psig
• Dimensions: 21" W x 16" D x 36" H
• Shipping weight: 100 lb
• Certifications: UL, NSF

Features:

• Handle-operated start: lock the brew basket and pull the handle to begin
• Program the recipe once for repeatable batches
• Manual hot water faucet set away from the brew basket and steam
• Dual brew basket lock tied into the start switch
• Gravity-fed dispense tube that resists lime buildup

What's included:

• Brewer with two stainless steel brew baskets. Thermal servers, filters and water filtration are sold separately.
• Fetco spec sheet with full electrical options and clearances is linked on this page

Installation notes:

• Hardwire or connect per the electrical configuration above; a licensed electrician should install
• Connect to a cold water line with the pressure and flow listed above; a water filter is recommended
• Check the spec sheet for clearances and the exact heater configuration before ordering

Warranty:

• 1 year parts and labor
• 2 years parts on electromechanical components
• 3 years parts on circuit boards
