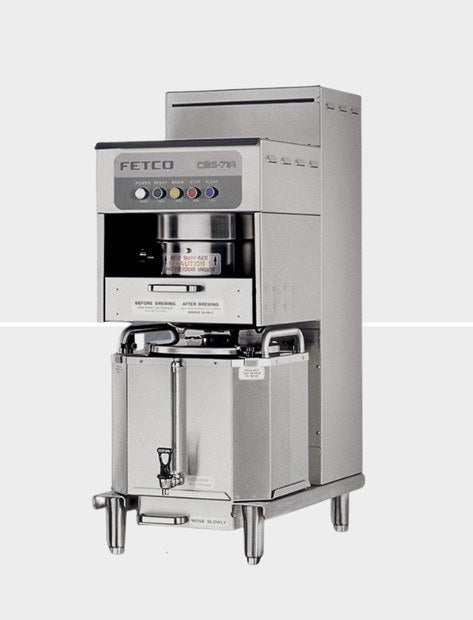

Fetco CBS-71A (C71037), High Volume Single Coffee Brewer, Countertop, 20.8-30 kW, 440-480V 3-Ph

The Fetco CBS-71A (C71037) is a countertop high-volume brewer that brews 6-gallon batches straight into a LUXUS thermal dispenser. This configuration is set up for 20.8-30 kW, 440-480V three-phase.

Best for:

• Stadiums, arenas and convention centers
• Hospitals, universities and corporate cafeterias
• Central coffee production for refill service

Key specifications:

• Model: CBS-71A (configuration code C71037)
• Brew stations: 1
• Output: up to 480 8 oz cups per hour
• Brews into: 6 gal LUXUS thermal dispenser (LBD-6)
• Tank capacity: 6 gal
• Paper filter size: 23" x 9"
• Electrical: 20.8-30 kW, 440-480V three-phase
• Water connection: 3/8" male flare, 2 gpm minimum, 20-75 psig
• Dimensions: 18" W x 37" D x 48.5" H
• Shipping weight: 313 lb
• Certifications: UL, NSF

Features:

• Program recipe parameters once for repeatable results
• Steam-containing brew compartment, so external ventilation is usually not needed
• Controls contact time and bypass percentage for precise extraction
• Large spray pan saturates the coffee bed evenly
• Brews directly into a 6 gallon LUXUS thermal dispenser (sold separately)

What's included:

• Brewer only. The 6 gallon LUXUS dispenser, filters and water filtration are sold separately.
• Fetco spec sheet with full electrical options and clearances is linked on this page

Installation notes:

• Hardwire or connect per the electrical configuration above; a licensed electrician should install
• Connect to a cold water line with the pressure and flow listed above; a water filter is recommended
• Check the spec sheet for clearances and the exact heater configuration before ordering

Warranty:

• 1 year parts and labor
• 2 years parts on electromechanical components
• 3 years parts on circuit boards
