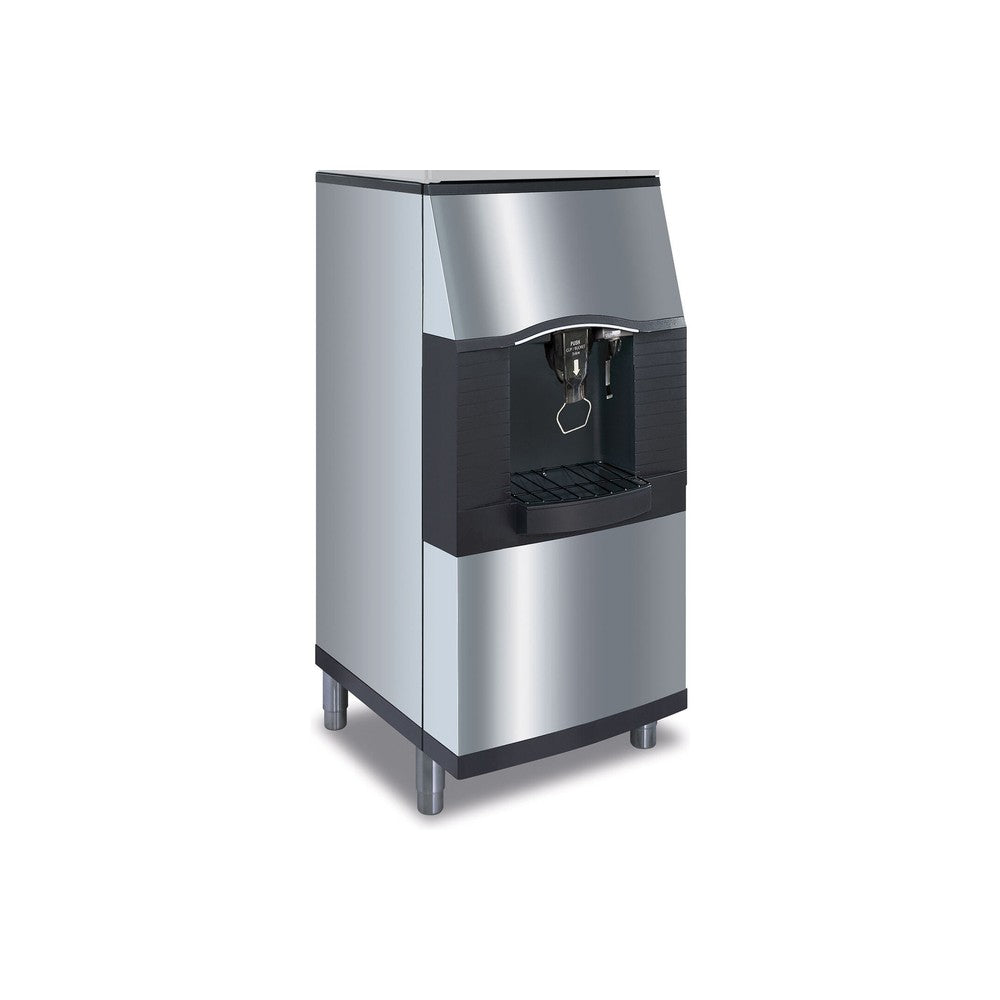

Manitowoc SFA192-161, Freestanding Cube Ice Hotel Ice & Water Dispenser, 120 Lb Storage

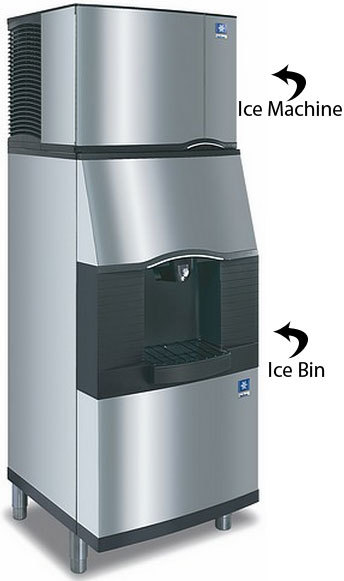

The SFA192-161 adds a built-in water valve to Manitowoc's 22-inch touchless hotel dispenser, so one footprint serves both ice and drinking water. It holds up to 120 pounds of cube ice from a 22-inch Manitowoc machine mounted on top, and guests or staff dispense by pressing a bucket, pitcher or cup against the lever. It works well on hotel floors, in hospital nourishment rooms, offices and fitness centers where people want water as well as ice.

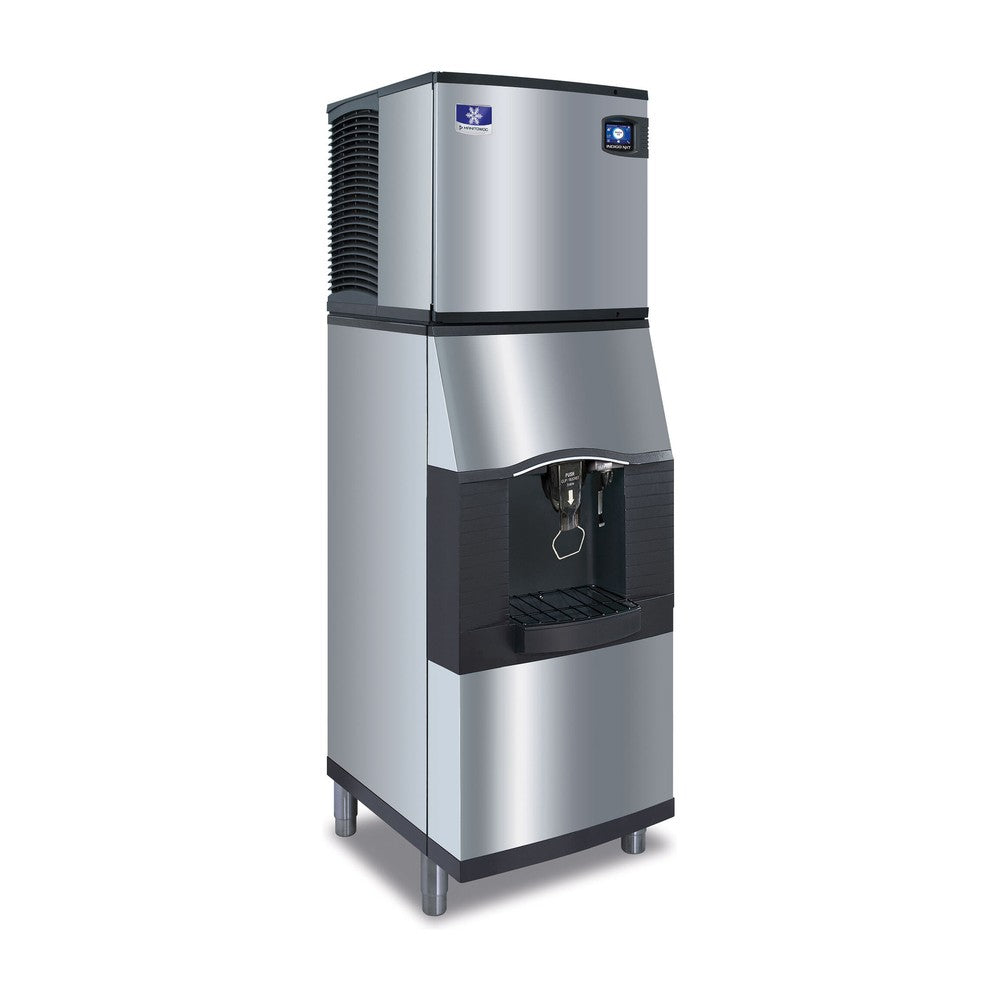

Fit and installation: This is the dispenser only; the ice machine is ordered separately. It accepts a single 22-inch-wide Manitowoc ice machine, and Manitowoc's spec sheet pairs it with Indigo NXT IT0420 and IT0620-series 22-inch cubers in dice or half-dice cube. The dispenser stands 54 inches tall on its 6-inch legs and about 75.5 inches with an ice machine on top. It plugs into a standard 115V outlet (NEMA 5-15P cord) and needs a drain for the melt pan plus a potable water line for the water valve. Dispensers need no minimum clearance of their own; follow the ice machine's clearance requirements.

Features:

• Touchless lever: the bucket, pitcher or glass activates the chute, not a hand
• Built-in water valve dispenses drinking water as well as ice
• About 9.25" of clearance from the grate to the bottom of the chute, enough for ice buckets and most tall glasses
• Built-in agitator keeps stored ice moving so the bin empties completely
• Oversized drain pan catches overflow ice and spills
• DuraTech exterior: corrosion-resistant stainless finish with a clear coat that resists fingerprints and dirt
• Front door removes easily for service and cleaning
• With an Indigo NXT ice machine on top, production can be scheduled to shut off overnight

Specifications:

• Model: SFA192-161
• Type: Freestanding touchless hotel ice & water dispenser
• Ice storage: Up to 120 lbs
• Ice type: Dice or half-dice cube (from the Manitowoc cuber on top)
• Accepts: 22" wide Manitowoc ice machine
• Cup clearance: 9.25" grate to chute
• Electrical: 115V, 60 Hz, single phase; 1.6 A motor; 15 A maximum fuse; 6 ft cord with NEMA 5-15P plug
• Dimensions (W x D x H): 22" x 31.2" x 54" (dispenser only, on 6" legs)
• Height with ice machine: About 75.5"
• Weight: 168 lbs
• Exterior: DuraTech
• Certifications: NSF, cULus, CE; ADA compliant
• Ice machine: Not included; sold separately

What's included: The SFA192-161 dispenser. The ice machine, any adapter kit and water filtration are ordered separately. See the SPA162-161 for the ice-only version of this dispenser.

Manitowoc Warranty:

3 years parts and labor on the dispenser. The ice machine on top carries its own Manitowoc warranty.

Brand / MPN: Manitowoc / SFA192-161
