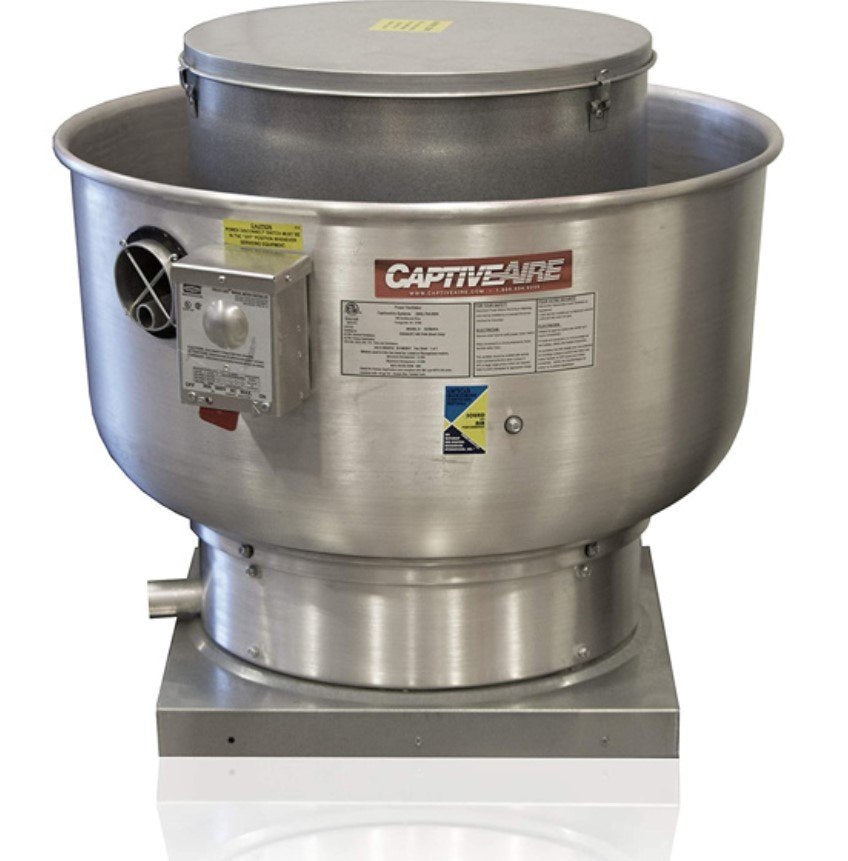

Captive-Aire CAS-DU180HFA-Grease, Centrifugal Upblast Direct Drive DU180HFA Roof Mounted

DU180HFA High Speed Direct Drive Centrifugal Upblast Exhaust Fan with disconnect switch and 18-3/4" wheel. Exhaust Fan handles 3000 CFM @ -1.000" wc ESP. Fan runs at 1183 RPM. Exhaust Motor: 1.500 HP, 3 Phs, 208 V, 60Hz, 4.4 FLA, ODP, Premium (E-Plus3) Eff.

A fan mounted VFD is included for speed control. Fan mounted VFD's are not suitable for areas with ASHRAE design conditions below -10 F or above 100 F.

Includes grease cup for kitchen-duty centrifugal exhaust fans (part #GC-CUF).
The dimensions of the grease cup are 17-1/8 L X 5-1/16 W X 3-3/4 H (20 GA.) It includes the down spout.

SPECIFICATIONS:

• HP: 1.5
• Phase: 3
• Motor Type: ODP
• Voltage: 208
• FLA: 4.4
• Fan/Motor RPM Range: 600-1407
• Speed Controller Type: VFD (factory mounted in the fan)
• Exhaust Fan UL Listing: UL 762 (Restaurant Duty)
• CFM Range: 1000-5500

*MAY USE OTHER CAPTIVE-AIRE BRAND LABEL
