Ventilation Direct VXD85-1 H/P, 115 Volts High Speed Direct Drive Centrifugal Upblast Exhaust 3000 CFM
Ventilation Direct VXD85-1 H/P, 115 Volts High Speed Direct Drive Centrifugal Upblast Exhaust 3000 CFM is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Ventilation Direct VXD85-1 H/P, 115 Volts High Speed Direct Drive C...
Description
Description

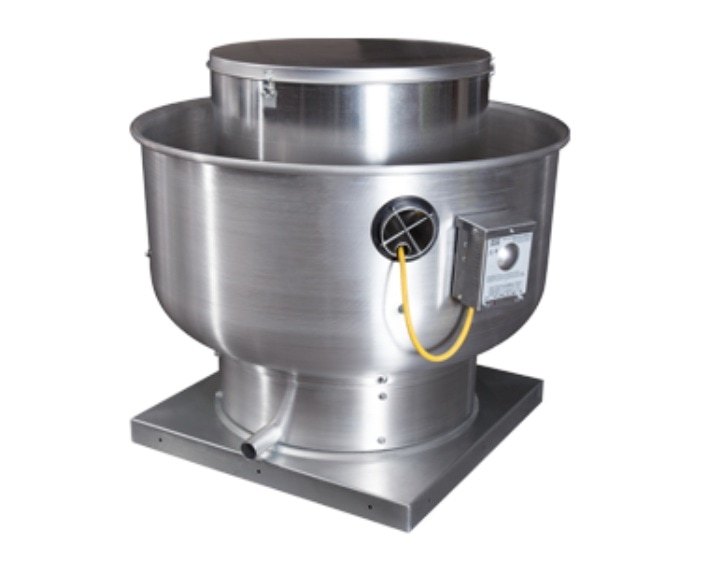

VXD85 - Premium Efficiency 1 Phase Direct Drive Restaurant Exhaust Fans with
Electronically Commutated Motors and Speed Control 800 to 3000 CFM
High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control (single phase only), disconnect switch and 15-3/4" wheel.
Includes Electronically Commutated (EC) Motor for operation between 300 and 1800 RPM
EC motors provide greater efficiency than conventional ODP motors
- Exhaust Fan handles 3000 CFM @ -0.400" wc ESP, Fan runs at 1586 RPM
- Base Size: 24.75"x 24.75"
- Exhaust Motor: 1.00 HP, 1 Phase 115 V, 60Hz, 10.2 FLA, ODP-ECM (Open Drip Proof Electronically Commutated Motor)
- 800 to 3000 CFM
- UL705, UL762, & ULC-S645 Rated
