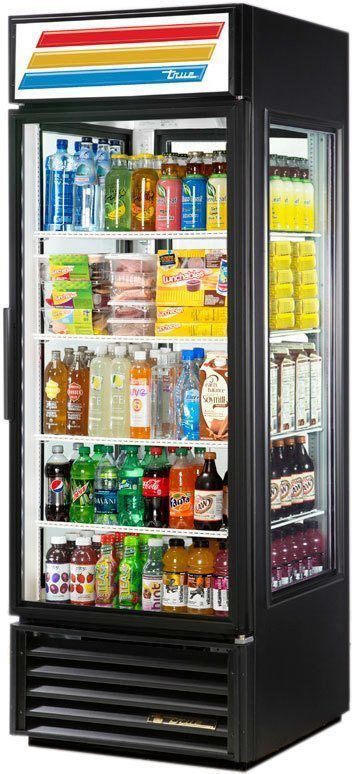

True G4SM-23-HC~TSL01

OEM Numbers

G4SM-23-HC~TSL01, G4SM-23, G4SM-23-LD

Spec Sheet (PDF)

REFRIGERATION SYSTEM

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP). • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.

CABINET CONSTRUCTION

• Exterior - attractive, non-peel or chip copper powder coated cold rolled steel ends with matching cabinet top and back; durable and permanent. • Low-E, double pane thermal insulated glass sides and door assembly. The latest in energy efficient technology.

DOOR

• “Low-E”, double pane thermal insulated glass door assembly with extruded aluminum frame. The latest in energy efficient technology. • Door fitted with 12” (305 mm) long extruded handle. • Self closing door. Positive seal, torsion type closure system. • Magnetic door gasket of one piece construction, removable without tools for ease of cleaning

ELECTRICAL

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
