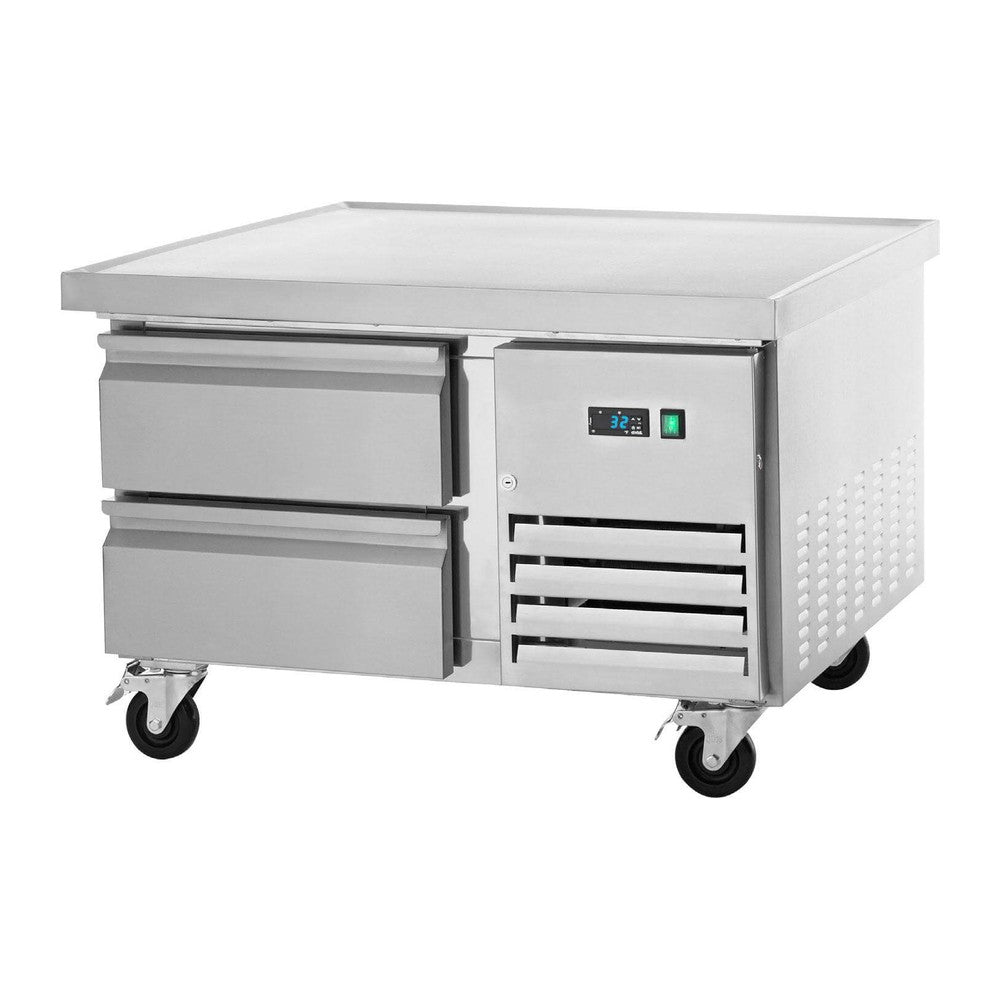

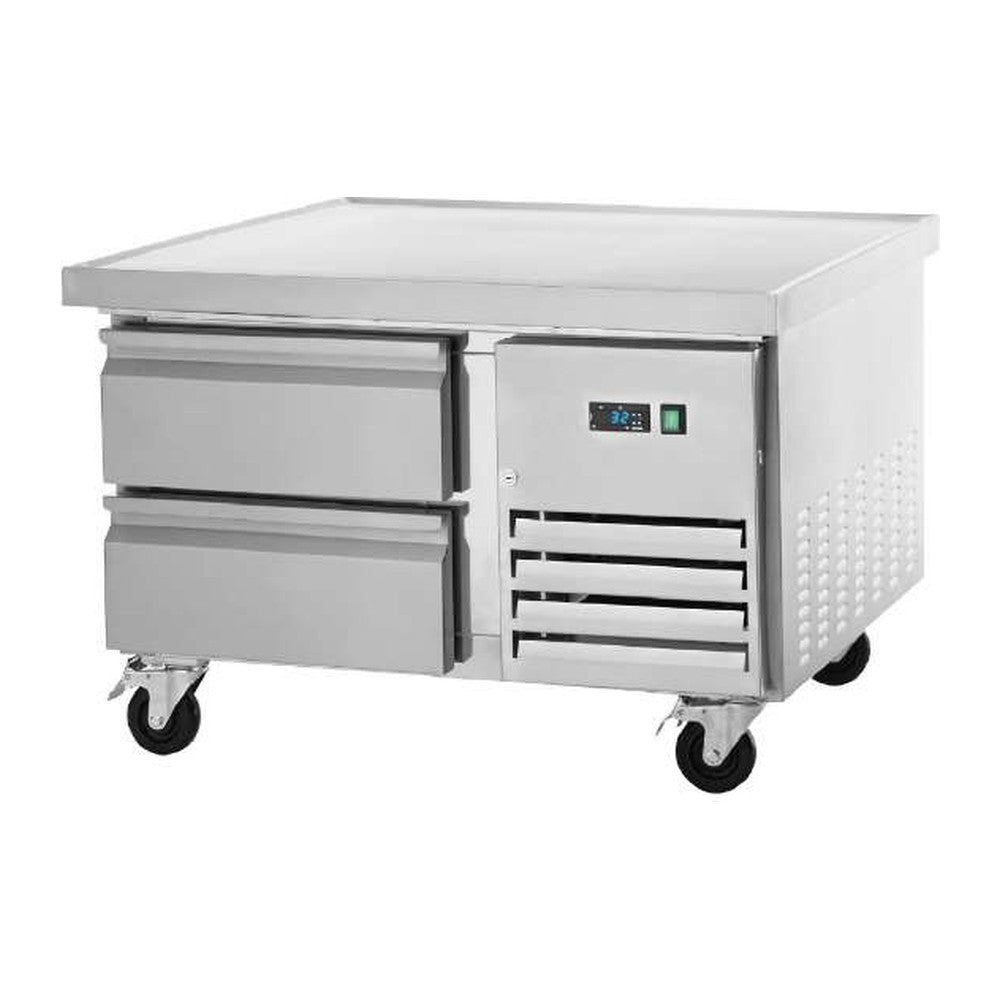

Arctic Air ARCB36, 38" 2 Drawer Refrigerated Chef Base

The Arctic Air ARCB36 is a compact 38" refrigerated chef base that turns the space under a countertop griddle, charbroiler or fryer into cold storage right where the cook needs it. Two refrigerated drawers keep proteins and prepped ingredients within reach, so the line spends less time walking to the reach-in. It is a smart fit for small kitchens, food halls, cafés and short cook lines.

Features

• Heavy-duty stainless top, insulated with a ceramic fabric layer over the foam to block heat from the equipment above
• Marine edge on all sides, with a 1" overhang on each side (2" overall) so countertop equipment sits flat
• Full-extension drawers on heavy-duty Fulterer telescoping cartridge slides let you load and unload pans without tipping them
• Stainless drawer fronts, liners and frames, plus stainless hooked adapter bars and removable magnetic gaskets
• Electronic thermostat with an external digital LED display
• R290 hydrocarbon refrigerant and a front-access condensing unit for easy cleaning
• Stainless front, sides and top; plate-mount casters (two locking) on reinforced mounting points

Key specifications

• Drawers: 2 refrigerated drawers; each drawer holds one 12" x 20" x 6" deep food pan (2 pans total, not included)
• Dimensions (W x D x H): 38" x 32" x 27-5/8" (height includes 5" casters)
• Temperature range: 33°F to 41°F
• Electrical: 115V, 2.1 amps, 1/3 HP, 8 ft cord with NEMA 5-15P plug
• Refrigerant: R290
• Weight: 230 lbs
• Certifications: ETL listed, ETL sanitation (NSF Standard 7)

What's included

Chef base cabinet with two drawers, stainless adapter bars and plate-mount casters. Food pans are sold separately.

Good to know

• Warranty: 3 years parts and labor plus 6 years on the compressor from Arctic Air. Commercial use only; mobile or outdoor installs are limited to 1 year.
• At 38" wide, it is sized for a single 36" griddle, charbroiler or hot plate section.
• If the equipment on top runs hotter than 280°F at the cooking surface, add a heat shield to keep the top from warping.
• Ships free by freight. Liftgate and residential delivery are available for an added fee.
