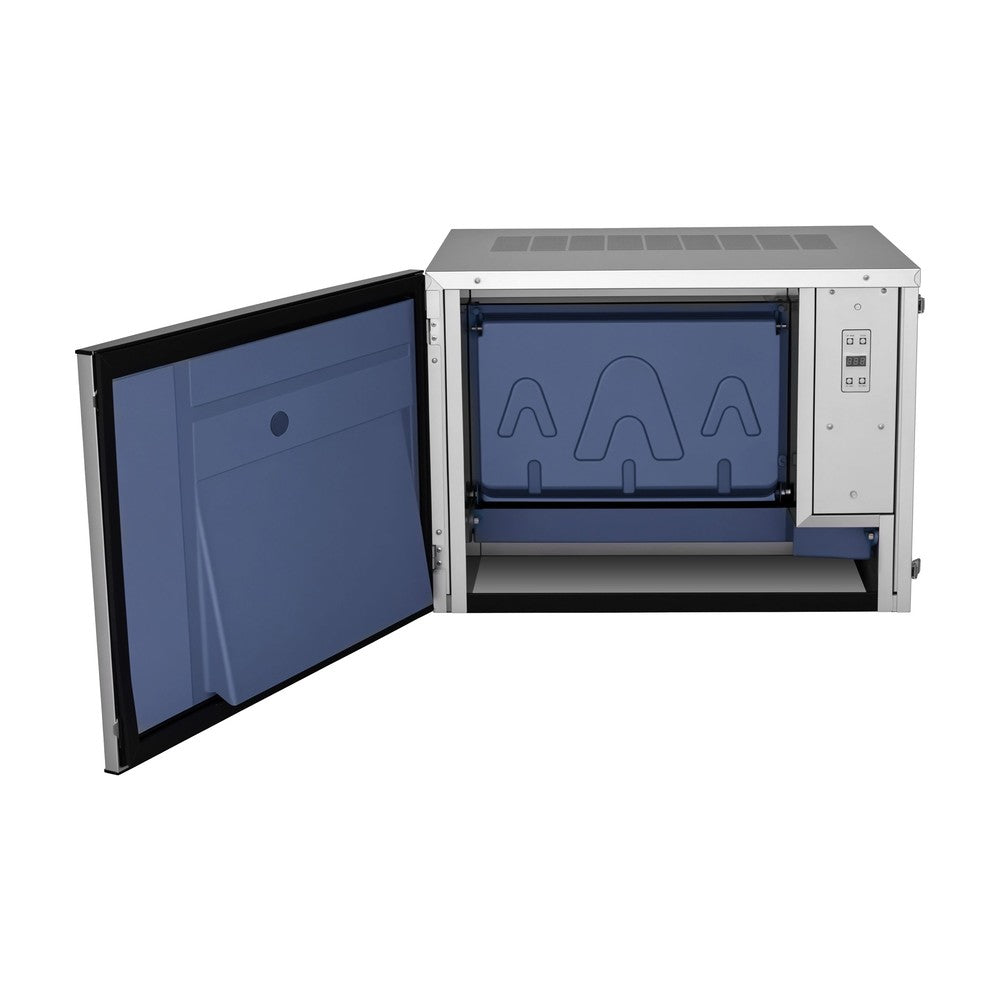

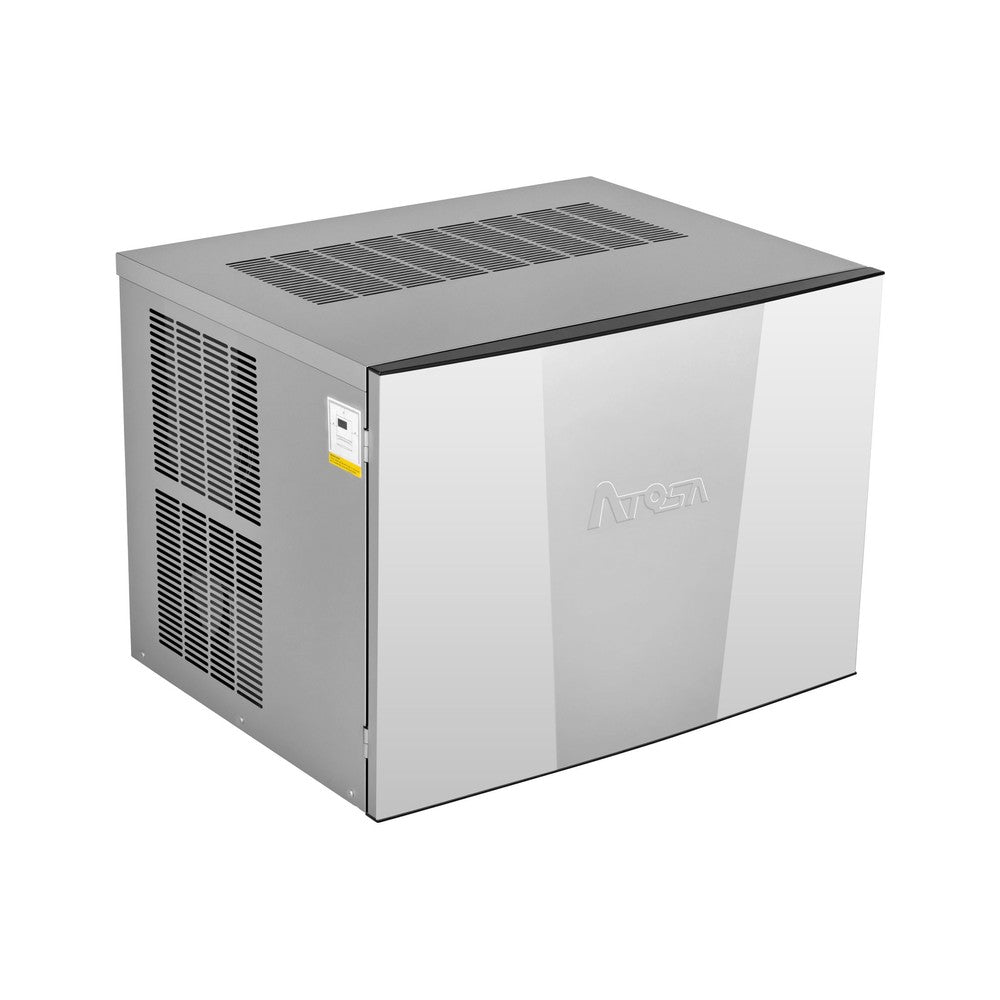

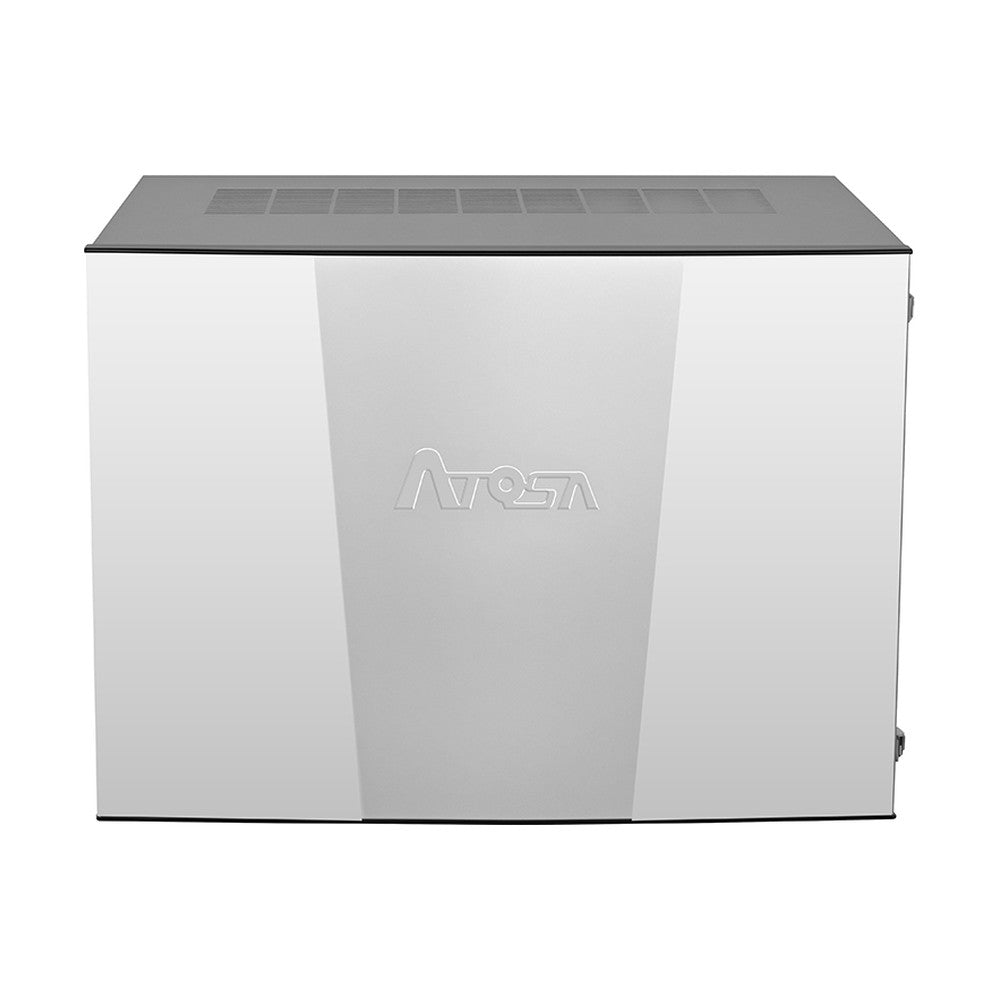

Atosa YRM0450A-161, 30-3/4" Air Cooled Half Cube Ice Machine, 450 Lb

The Atosa YRM0450A-161 is a low-profile, 30-3/4-inch-wide modular head that makes up to 450 lbs of half-dice ice a day on 115-volt power. Standing only 22 inches tall, it is a practical pick for restaurants and bars that need a full-width machine but have limited clearance above the bin.

It is the current replacement for Atosa's earlier YR450-AP-161 30-inch head.

Bin fit and installation: This is an ice machine head only; the storage bin is sold separately. It sits directly on Atosa's 30-inch BYR0400 bin with no adaptor, while Atosa's larger BYR700 bin uses BYR0700-series adaptor kits. If you are pairing it with any other bin, confirm the correct Atosa adaptor or top kit before ordering. A floor drain is required.

Features:

• Half-dice cubes (3/8" x 7/8" x 7/8") that pack tightly in cups and cool drinks fast
• Durable stainless steel exterior
• Digital control panel
• Air-cooled condenser with a removable air filter for quick cleaning
• Screwless front panel for easier servicing
• Self-contained refrigeration system
• R290 natural refrigerant with a very low environmental impact
• 115V single-phase power, NEMA 5-15P plug
• ENERGY STAR® certified; NSF and ETL listed

What's included:

• 3M water filter system (replace the cartridge about every 6 months, depending on water quality)
• Water inlet hose and drain hose
• Ice scoop

Optional accessories (sold separately):

• Bin thermostat kit BYR0400217031: needed when the head feeds a beverage dispenser or fountain system instead of a standard bin; it senses a full bin and stops production

Specifications:

• Ice production: Up to 450 lbs per 24 hours
• Ice type: Half-dice cube, 3/8" x 7/8" x 7/8"
• Condenser: Air-cooled
• Refrigerant: R290
• Electrical: 115V/60Hz, single phase, 11.9 amps (1,150 W), NEMA 5-15P plug
• Dimensions (W x D x H): 30-3/4" x 24-1/4" x 22" (head only)
• Weight: 146 lbs
• Exterior: Stainless steel
• Certifications: NSF, ETL, ENERGY STAR
• Storage bin: Not included; sold separately

Installation notes: Leave room around the cabinet for airflow, and clean the condenser and air filter regularly to keep production up. Install the included water filter before first use.

Atosa Warranty:

2 years parts & labor, 5 years compressor & evaporator. Routine maintenance and cleaning are not covered.

Brand / MPN: Atosa / YRM0450A-161
