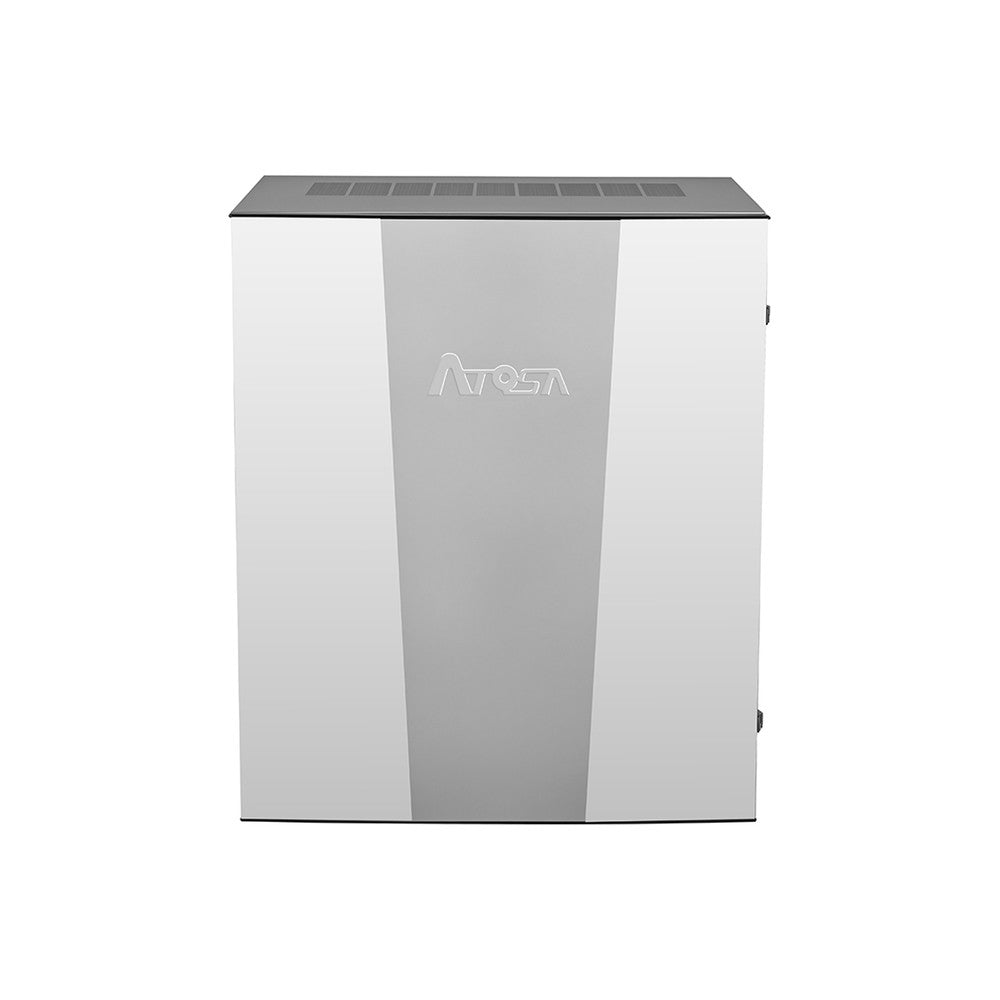

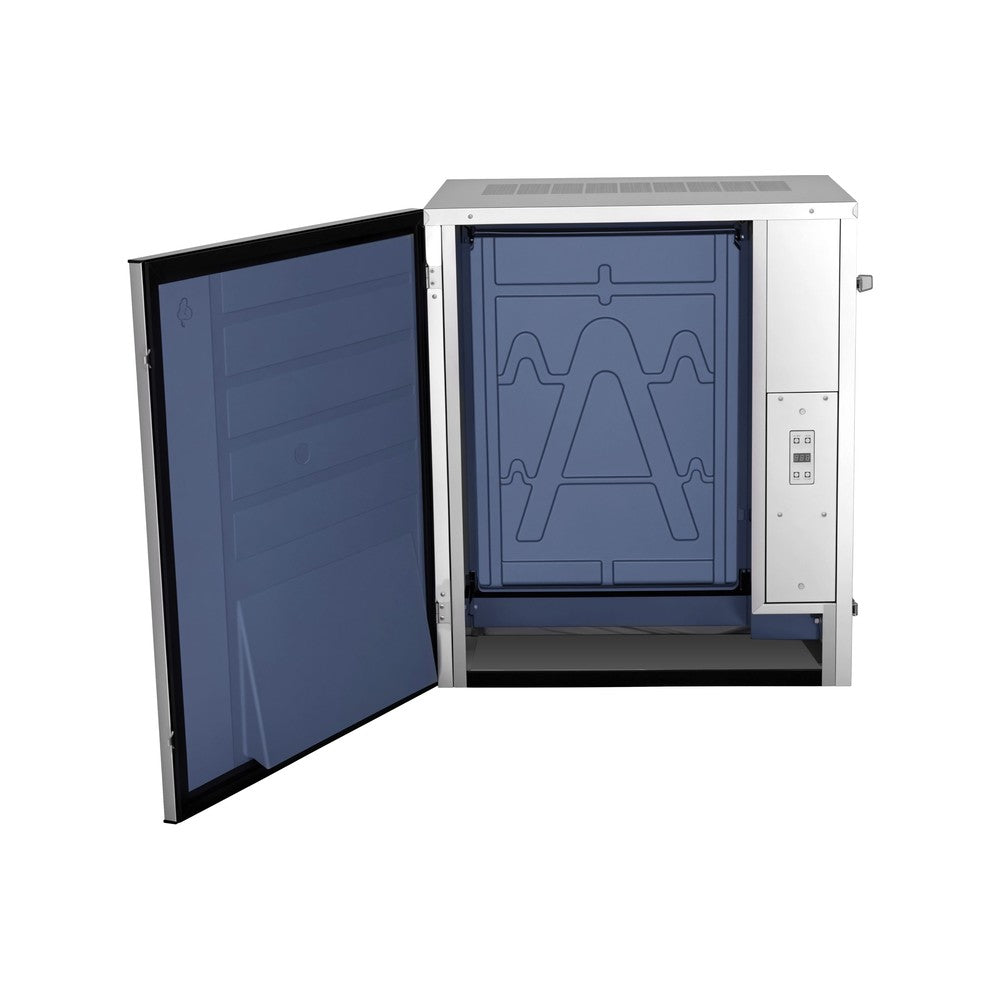

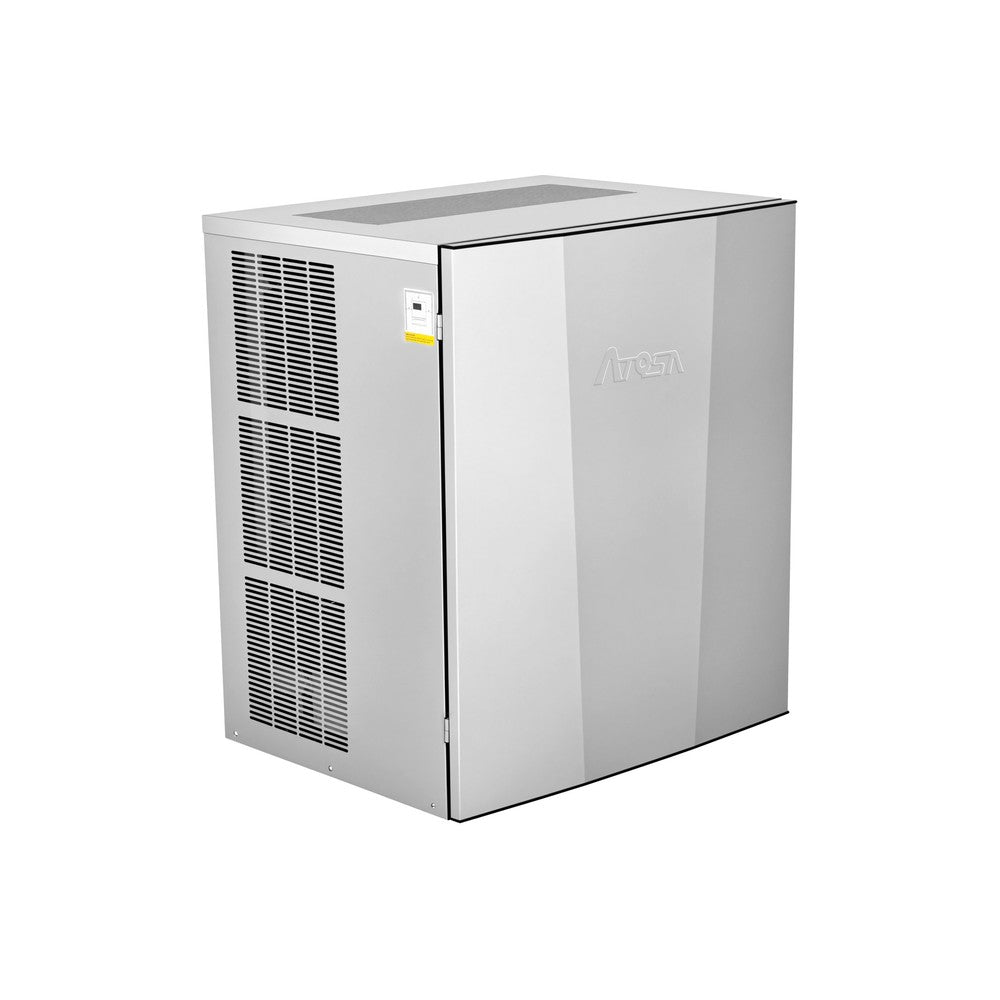

Atosa YRM1000A-261, 30-3/4" Air Cooled Half Cube Ice Machine, 1,000 Lb

At up to 1,000 lbs a day, the Atosa YRM1000A-261 is the largest head in Atosa's modular cube line, built for hotels, hospitals, stadium concessions and large restaurants that need about half a ton of ice daily from a single 30-inch footprint.

It runs on a 208-230V single-phase circuit with a NEMA 6-20P plug and stands 35 inches tall, so check the clearance above your bin.

Bin fit and installation: This is an ice machine head only; the storage bin is sold separately. It sits directly on Atosa's 30-inch BYR0400 bin with no adaptor, while Atosa's larger BYR700 bin uses BYR0700-series adaptor kits. If you are pairing it with any other bin, confirm the correct Atosa adaptor or top kit before ordering. A floor drain is required.

Features:

• Half-dice cubes (3/8" x 7/8" x 7/8") that pack tightly in cups and cool drinks fast
• Durable stainless steel exterior
• Digital control panel
• Air-cooled condenser with a removable air filter for quick cleaning
• Screwless front panel for easier servicing
• Self-contained refrigeration system
• R404A refrigerant (per Atosa's specification table for this model)
• 208-230V single-phase power, NEMA 6-20P plug
• NSF and ETL listed

What's included:

• 3M water filter system (replace the cartridge about every 6 months, depending on water quality)
• Water inlet hose and drain hose
• Ice scoop

Optional accessories (sold separately):

• Bin thermostat kit BYR0400217031: needed when the head feeds a beverage dispenser or fountain system instead of a standard bin; it senses a full bin and stops production

Specifications:

• Ice production: Up to 1,000 lbs per 24 hours
• Ice type: Half-dice cube, 3/8" x 7/8" x 7/8"
• Condenser: Air-cooled
• Refrigerant: R404A
• Electrical: 208-230V/60Hz, single phase, 14.5 amps (2,870 W), NEMA 6-20P plug
• Dimensions (W x D x H): 30-3/4" x 24-1/4" x 35" (head only)
• Weight: 231 lbs
• Exterior: Stainless steel
• Certifications: NSF, ETL
• Storage bin: Not included; sold separately

Installation notes: Leave room around the cabinet for airflow, and clean the condenser and air filter regularly to keep production up. Install the included water filter before first use.

Atosa Warranty:

2 years parts & labor, 5 years compressor & evaporator. Routine maintenance and cleaning are not covered.

Brand / MPN: Atosa / YRM1000A-261
