Beverage Air BBN48HC-PT-B, 48" 4 Solid Door Shallow Depth Pass-Thru Back Bar Cooler

The Beverage Air BBN48HC-PT-B is a 48" shallow-depth pass-thru back bar cooler with four solid doors and 12.56 cu. ft. of storage, finished in black. It keeps bottled beer, mixers and garnishes cold under the bar where bartenders can reach them in a single step.

Features:

• Exterior: black painted steel
• Interior: galvanized steel
• Electronic temperature control

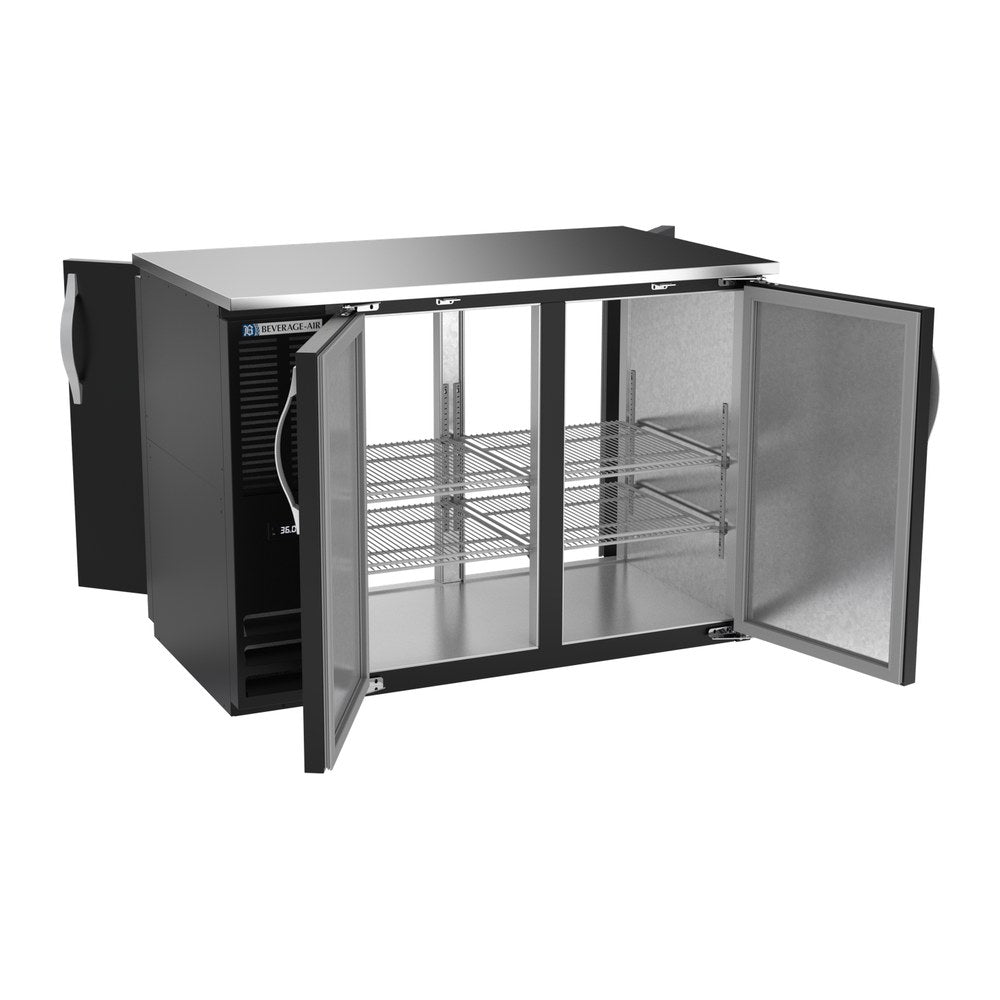

• Self-closing doors with a 120° stay-open feature
• 4 epoxy-coated wire shelves
• LED interior lighting
• Magnetic snap-in door gaskets for a tight seal
• 6" casters
• R290 hydrocarbon refrigerant that meets CARB, SNAP and DOE rules
• Adaptive defrost

Specifications:

• Model: BBN48HC-PT-B
• Exterior dimensions: 48" W x 30-1/8" D x 34" H
• Capacity: 12.56 cu. ft.
• Doors: 4
• Shelves: 4
• Temperature: 36°F to 38°F
• Refrigeration: 1/4 HP, R290, left mount compressor
• Electrical: 115V/60Hz/1Ph, 3 amps, NEMA 5-15P plug, 8' cord
• Shipping weight: 320 lb
• Warranty: 7 years parts & labor, 7 years compressor (manufacturer)

Good to know:

• Plan for about 61-7/16" of depth in front of the unit with a door open 90°.
• Each door opening measures about 16-3/4" x 29-1/16", which is worth checking against your largest pans or cases.
• It plugs into a standard 115V outlet (NEMA 5-15P); a dedicated circuit is recommended.
• Factory options include wine model, wire shelf divider and additional shelves. Ask us before ordering if you need one.
• Beverage-Air warranty is 7 years on parts, labor and compressor for commercial use; residential installations are not covered.
• This model replaces Beverage-Air's earlier BB48HC-1-PT-B and BB48HC-1-PT-B-27 (the stainless steel top version); the 1" stainless steel top is now standard.
• Ships free by freight. Liftgate delivery is available for $85.
