Beverage Air PH1-1HS-PT Pass-Thru Heated Holding Cabinet, 4 Solid Half Doors, 3 Shelf, 208-240V

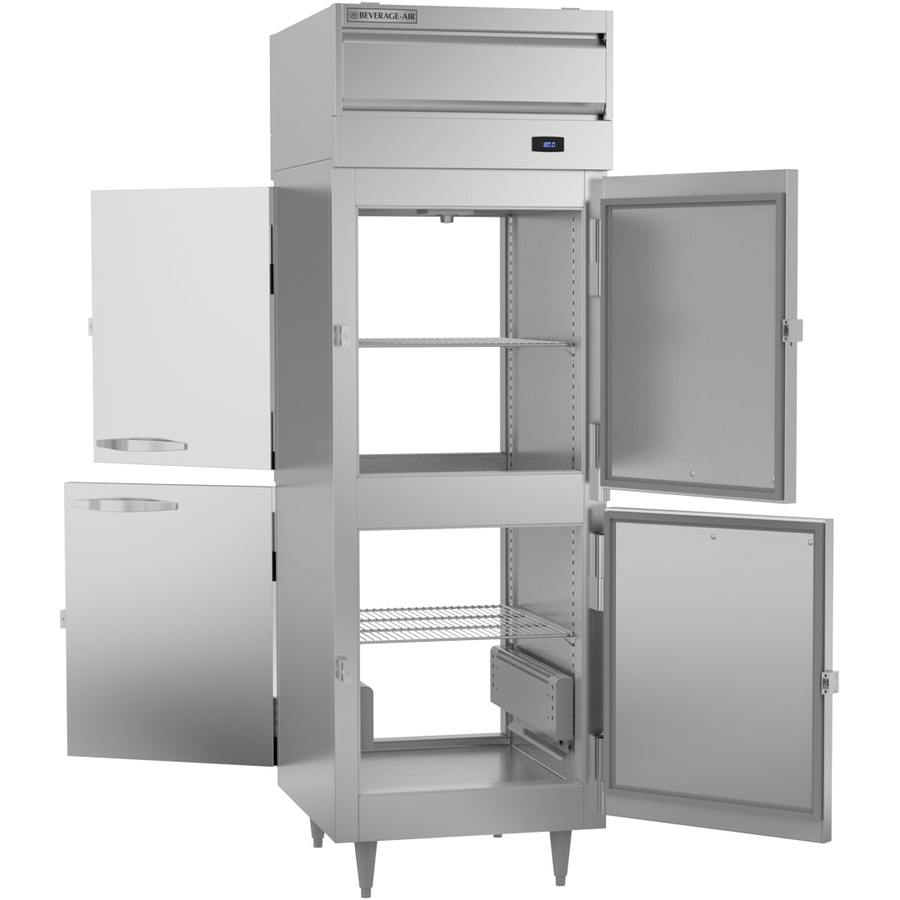

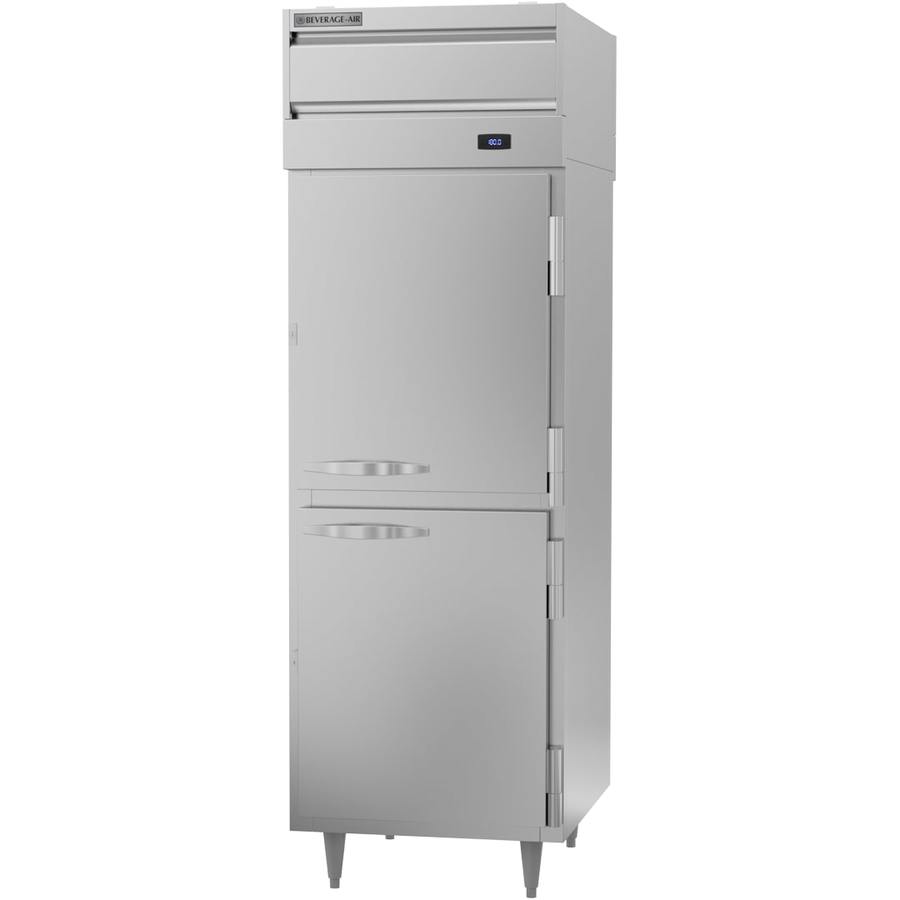

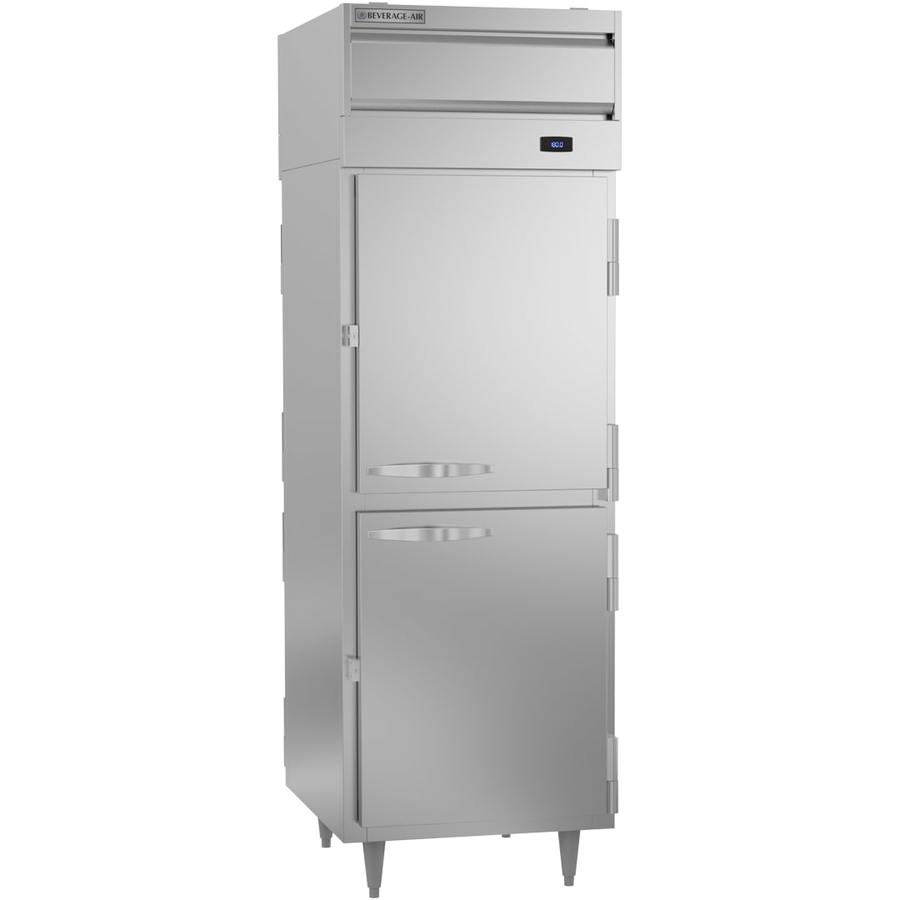

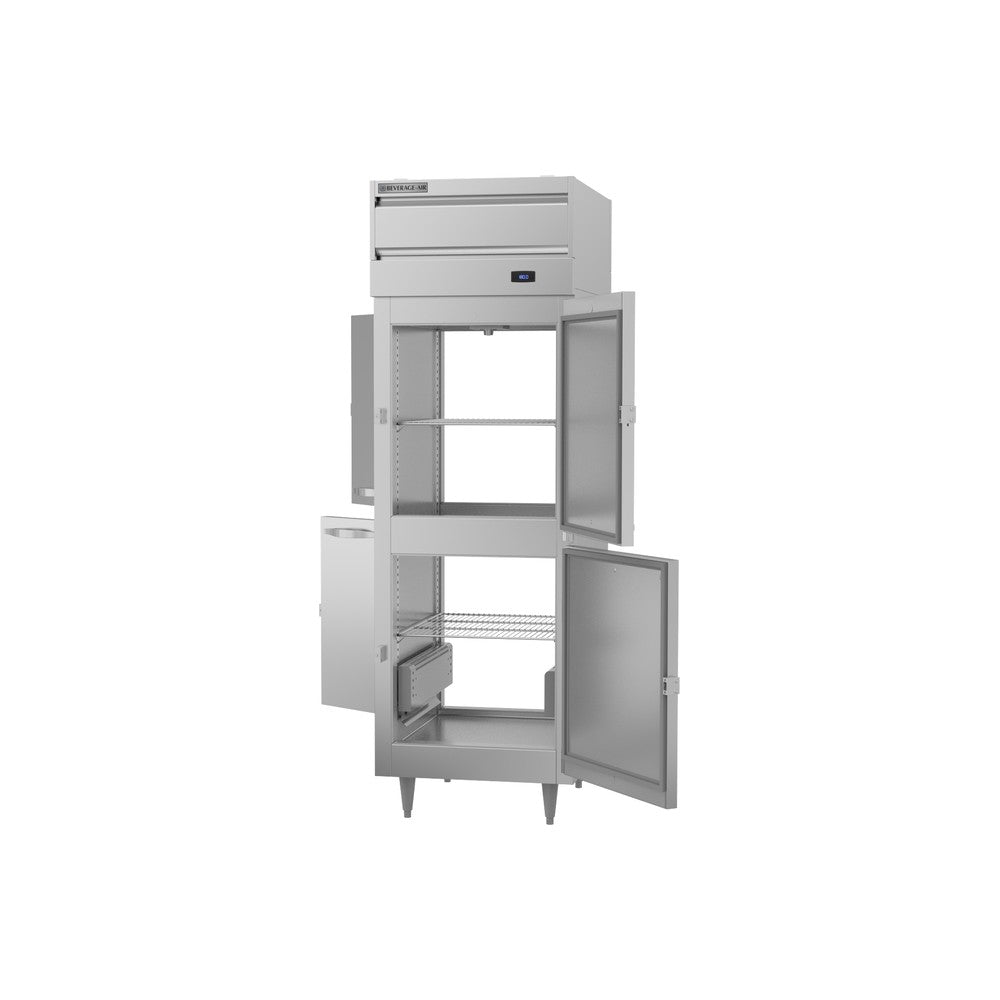

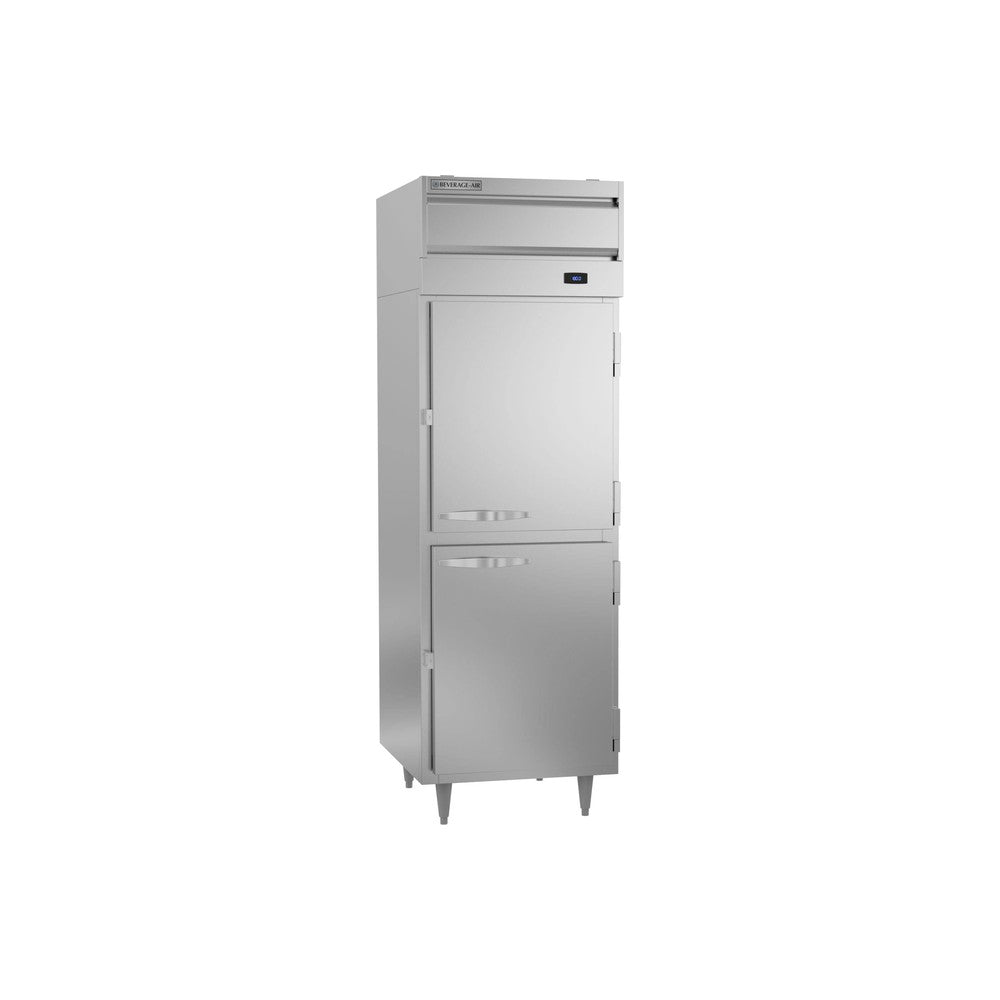

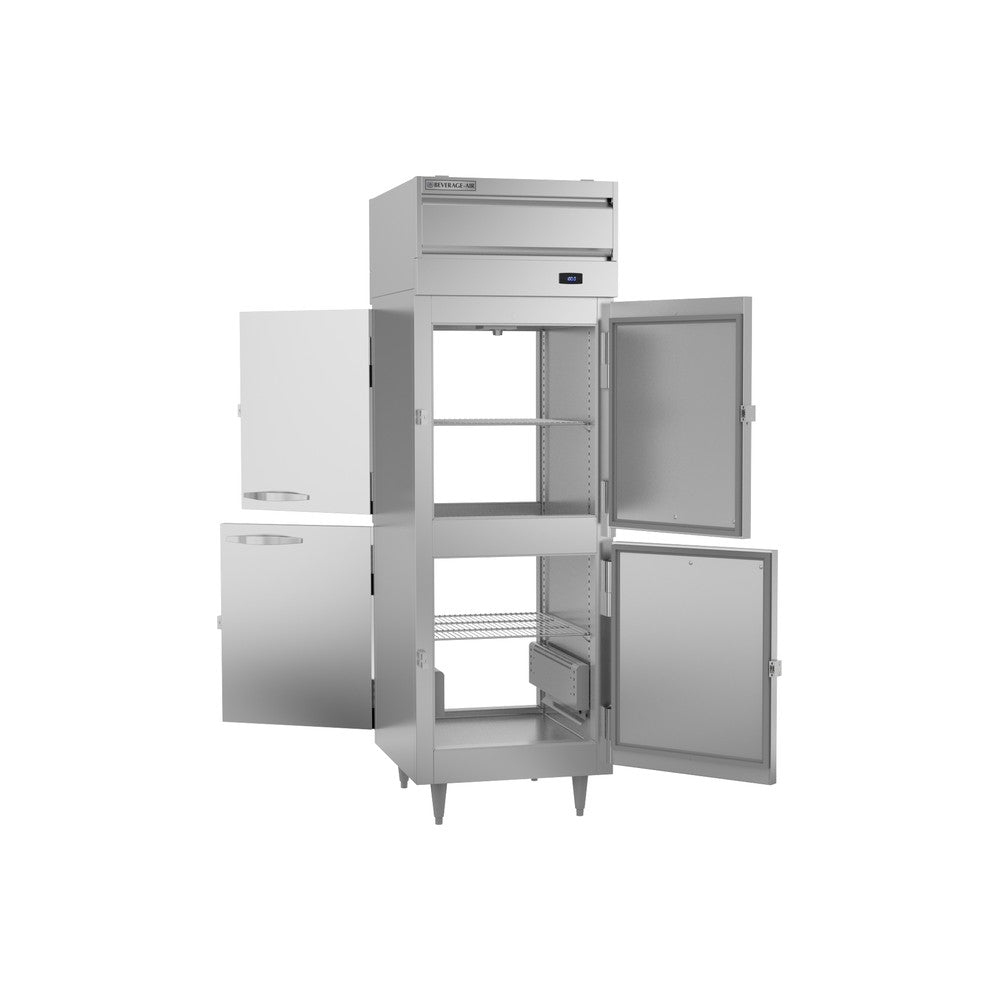

The Beverage Air PH1-1HS-PT combines pass-thru access with half doors: two solid half doors on the front and two on the back. The kitchen can restock the top or bottom from one side while service pulls from the other, and only the compartment in use is opened. The cabinet holds 80°F to 180°F with adjustable humidity vents and a 1,500 W fan-forced heater.

Best for:

• High-volume pass-thru stations between kitchen and dining room
• Cafeterias and stadium concessions with constant reloading
• Kitchens holding two types of food in one cabinet

Key specifications:

• Model: PH1-1HS-PT
• Sections: 1; doors: 4 solid half doors (front and rear, pass-thru)
• Shelves: 3 included
• Temperature range: 80°F to 180°F
• Electrical: 208-240V, 60 Hz, single phase, 1,500 W total, 5.9 / 6.8 A; 8' cord with NEMA 6-20P plug
• Overall size: 26-1/2" W x 38.4" D x 83-3/4" H on 6" legs
• Shipping weight: 340 lb

Features:

• Stainless steel exterior with a corrosion-resistant aluminum interior
• Front-panel thermometer and adjustable thermostat, calibrated from 80°F to 180°F
• Manual humidity vents in the cabinet top let you hold moist or crisp foods
• Two 750 W strip heaters per section with an externally mounted blower for even heat from top to bottom
• Self-closing doors on cam-lift hinges with a heavy-duty cylinder lock and snap-in magnetic gasket
• Pass-thru design: load from the kitchen side and serve from the other
• Half doors open one compartment at a time, so less heat escapes during service
• 3 silver freeze shelves
• 6" adjustable legs; 3" or 6" casters available

Installation notes:

• 208-240V single phase; plan a dedicated 15 A circuit and a NEMA 6-20 receptacle
• Not insulated: keep clear of refrigeration and allow 12" above the top for service
• Door hinging is chosen when ordering; tell us if you need a specific swing
• Leave access on both sides for pass-thru loading

Warranty:

• 7 year parts and labor from Beverage-Air
