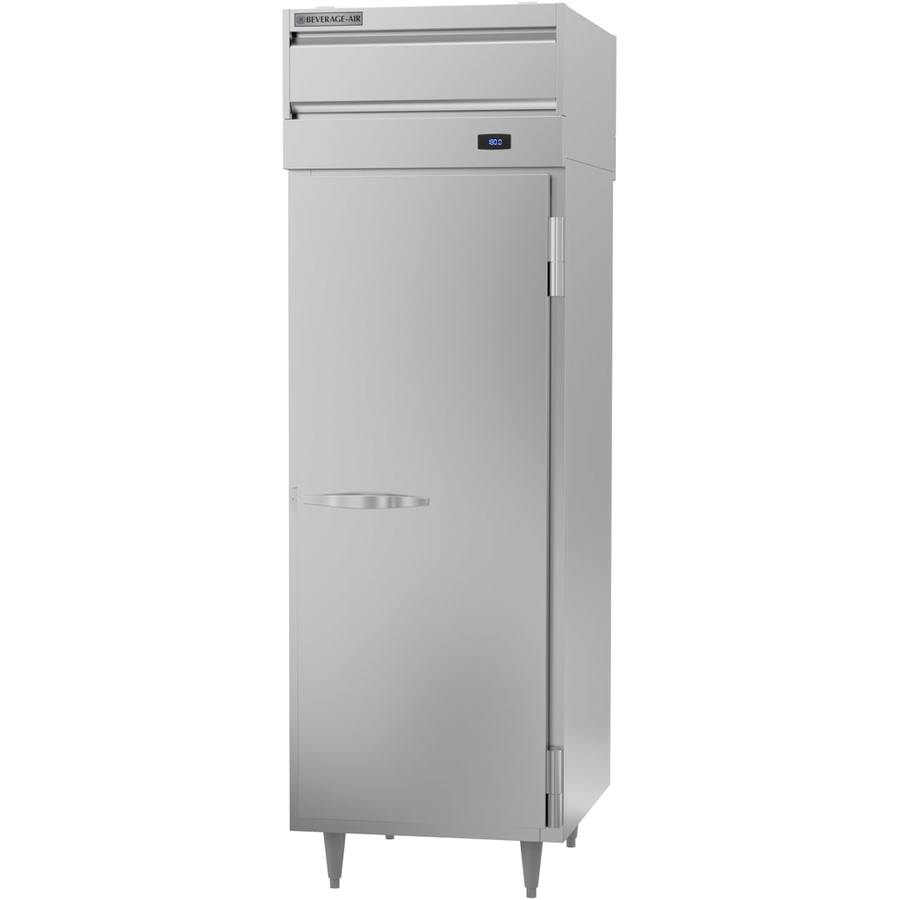

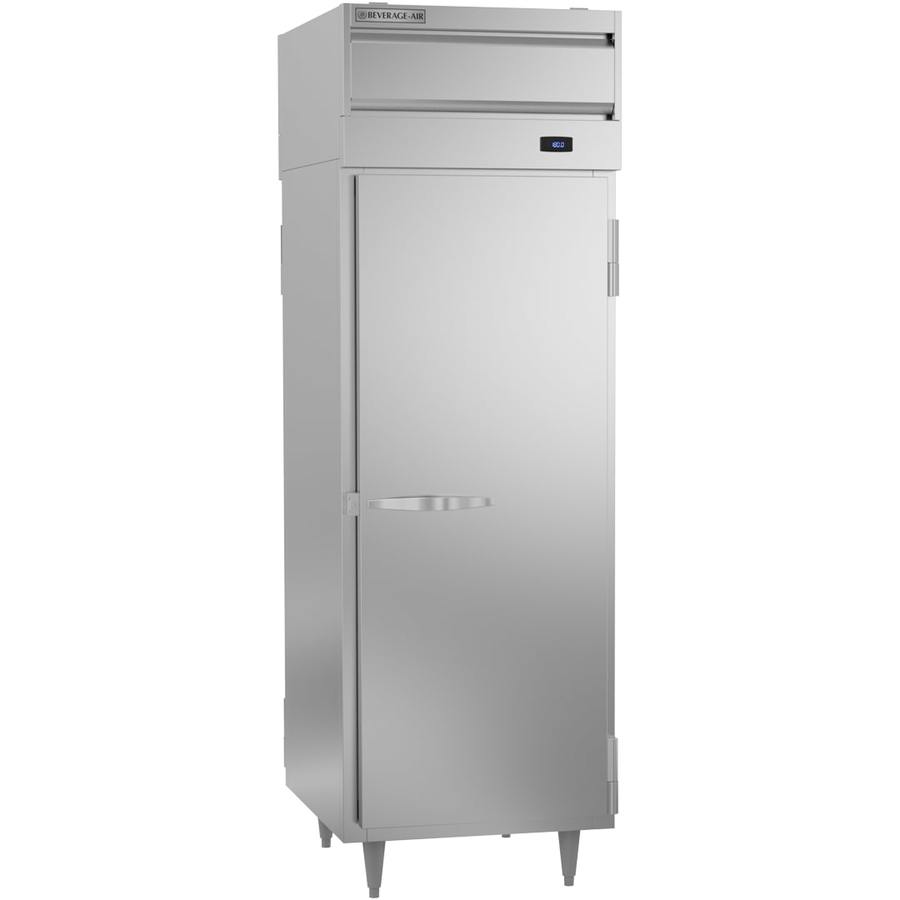

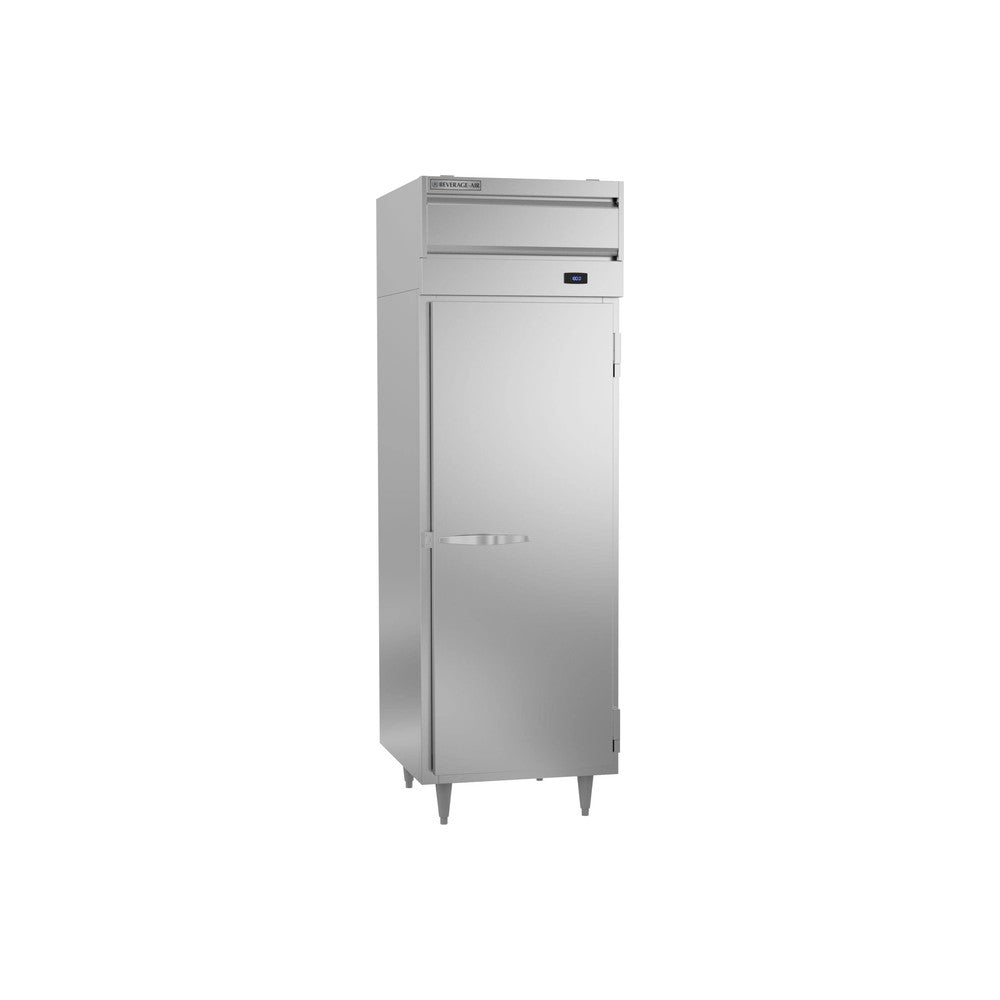

Beverage Air PH1-1S-PT Pass-Thru Heated Holding Cabinet, 2 Solid Doors, 3 Shelf, 208-240V

The Beverage Air PH1-1S-PT is a 26-1/2" wide pass-thru heated holding cabinet with a solid door on the front and another on the back. Cooks load hot food from the kitchen side while servers pull it from the other, keeping traffic out of the line. It holds 80°F to 180°F with adjustable humidity vents and a 1,500 W fan-forced heater over three shelves.

Best for:

• Kitchens that pass food through a wall to a serving area
• Cafeterias and buffets refilled from the back of house
• Banquet operations with separate prep and pickup sides

Key specifications:

• Model: PH1-1S-PT
• Sections: 1; doors: 2 solid doors (front and rear, pass-thru)
• Shelves: 3 included
• Temperature range: 80°F to 180°F
• Electrical: 208-240V, 60 Hz, single phase, 1,500 W total, 5.9 / 6.8 A; 8' cord with NEMA 6-20P plug
• Overall size: 26-1/2" W x 38.4" D x 83-3/4" H on 6" legs
• Shipping weight: 340 lb

Features:

• Stainless steel exterior with a corrosion-resistant aluminum interior
• Front-panel thermometer and adjustable thermostat, calibrated from 80°F to 180°F
• Manual humidity vents in the cabinet top let you hold moist or crisp foods
• Two 750 W strip heaters per section with an externally mounted blower for even heat from top to bottom
• Self-closing doors on cam-lift hinges with a heavy-duty cylinder lock and snap-in magnetic gasket

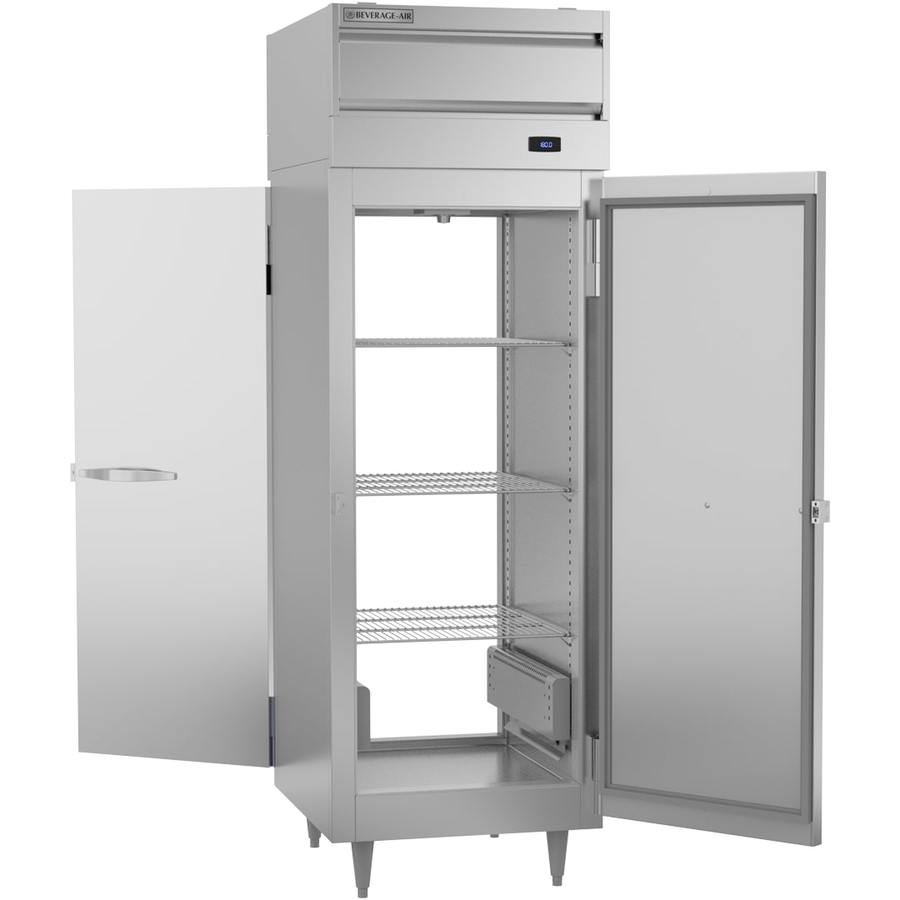

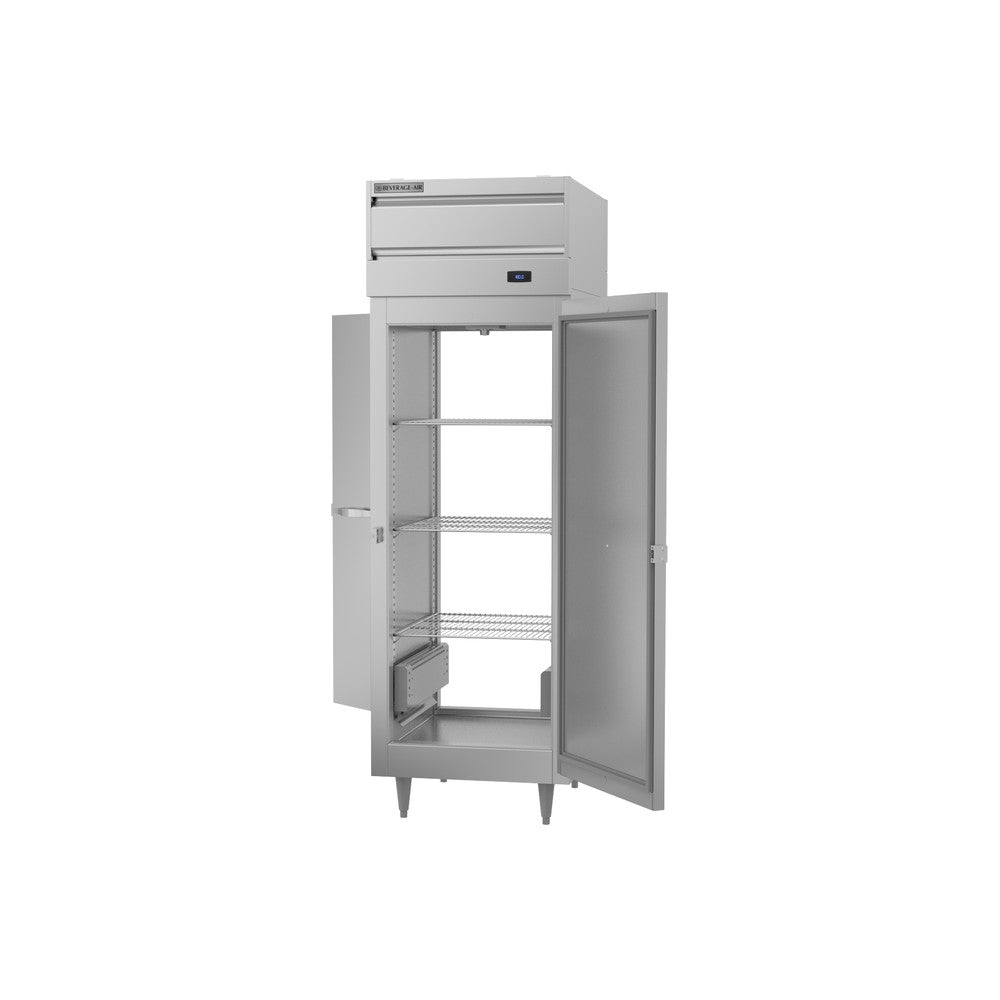

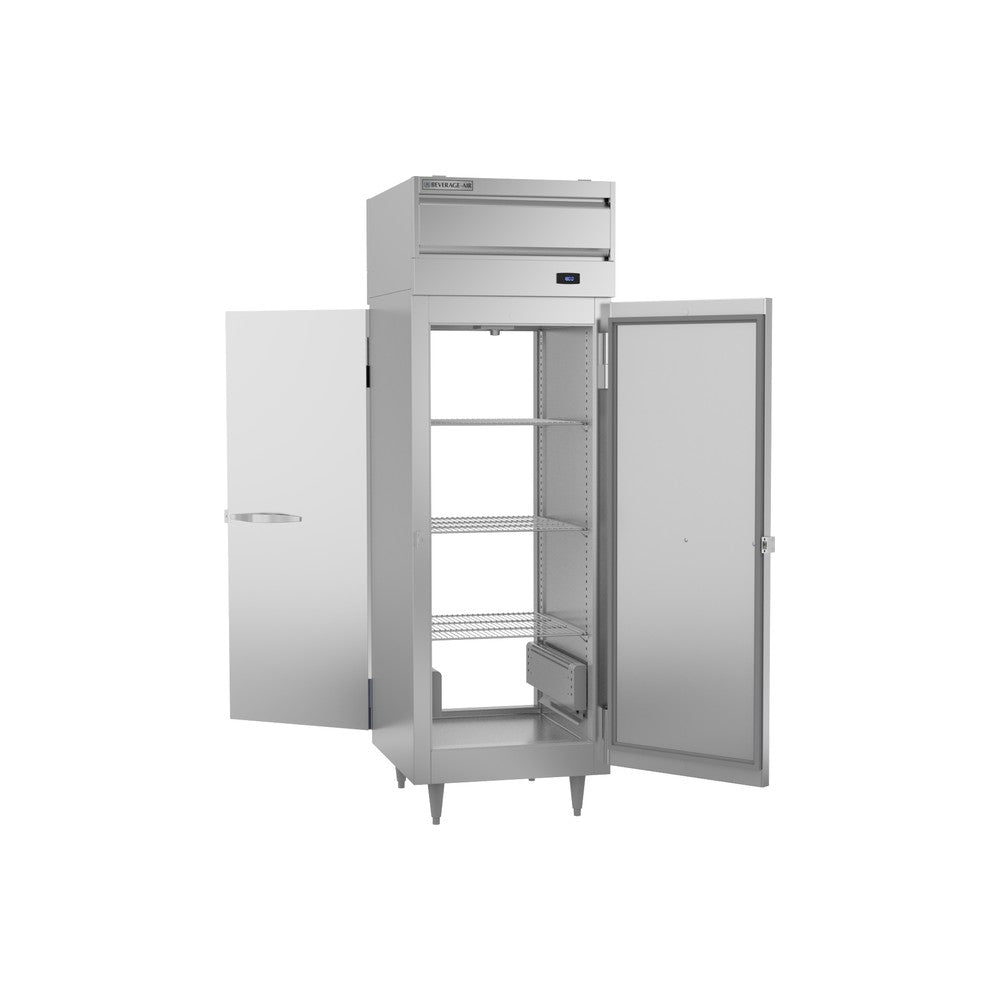

• Pass-thru design: load from the kitchen side and serve from the other
• 3 silver freeze shelves
• 6" adjustable legs; 3" or 6" casters available

Installation notes:

• 208-240V single phase; plan a dedicated 15 A circuit and a NEMA 6-20 receptacle
• Not insulated: keep clear of refrigeration and allow 12" above the top for service
• Door hinging is chosen when ordering; tell us if you need a specific swing
• Leave access on both sides for pass-thru loading

Warranty:

• 7 year parts and labor from Beverage-Air
