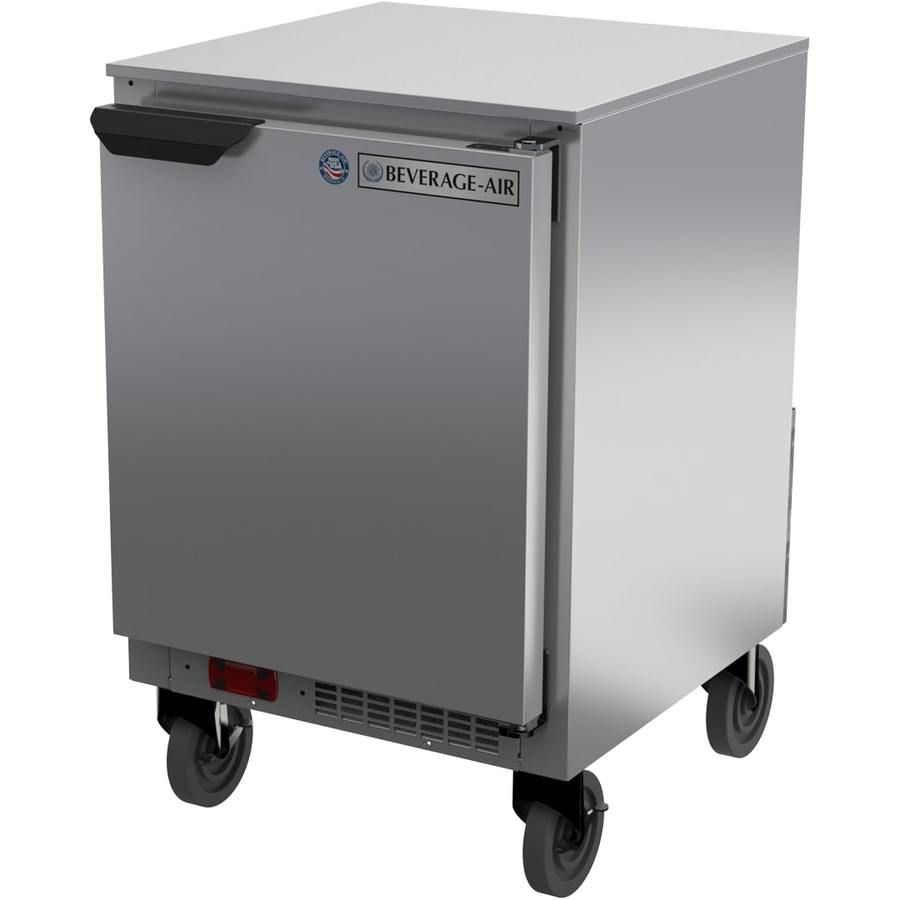

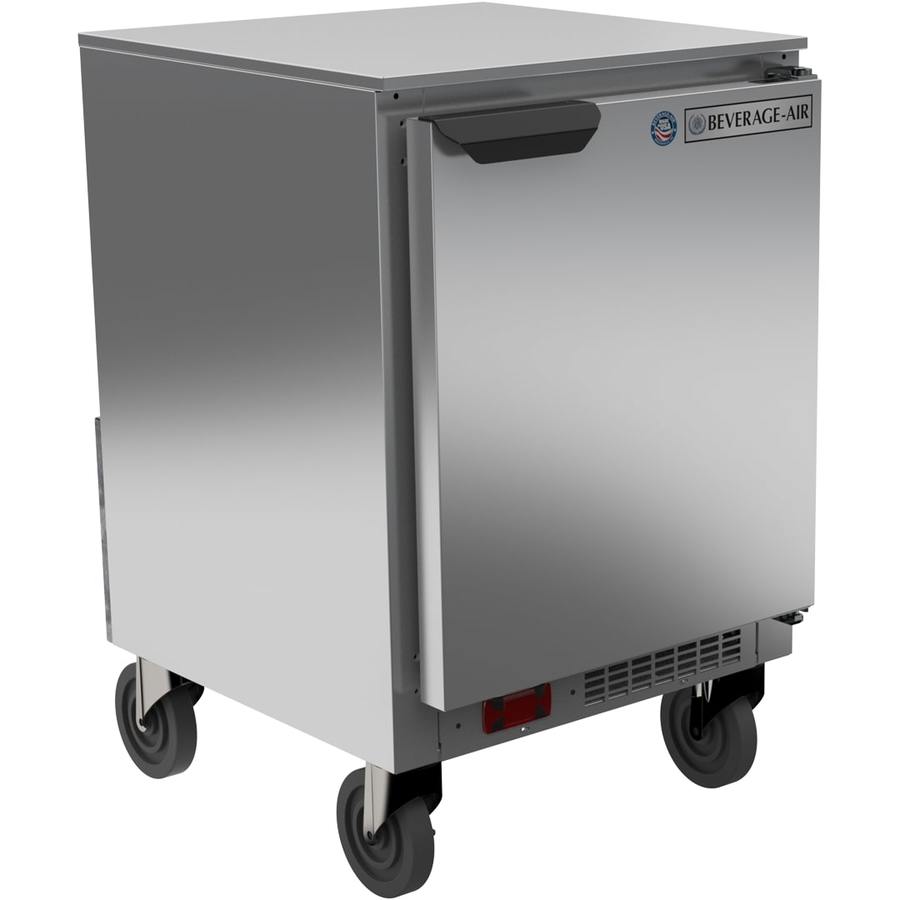

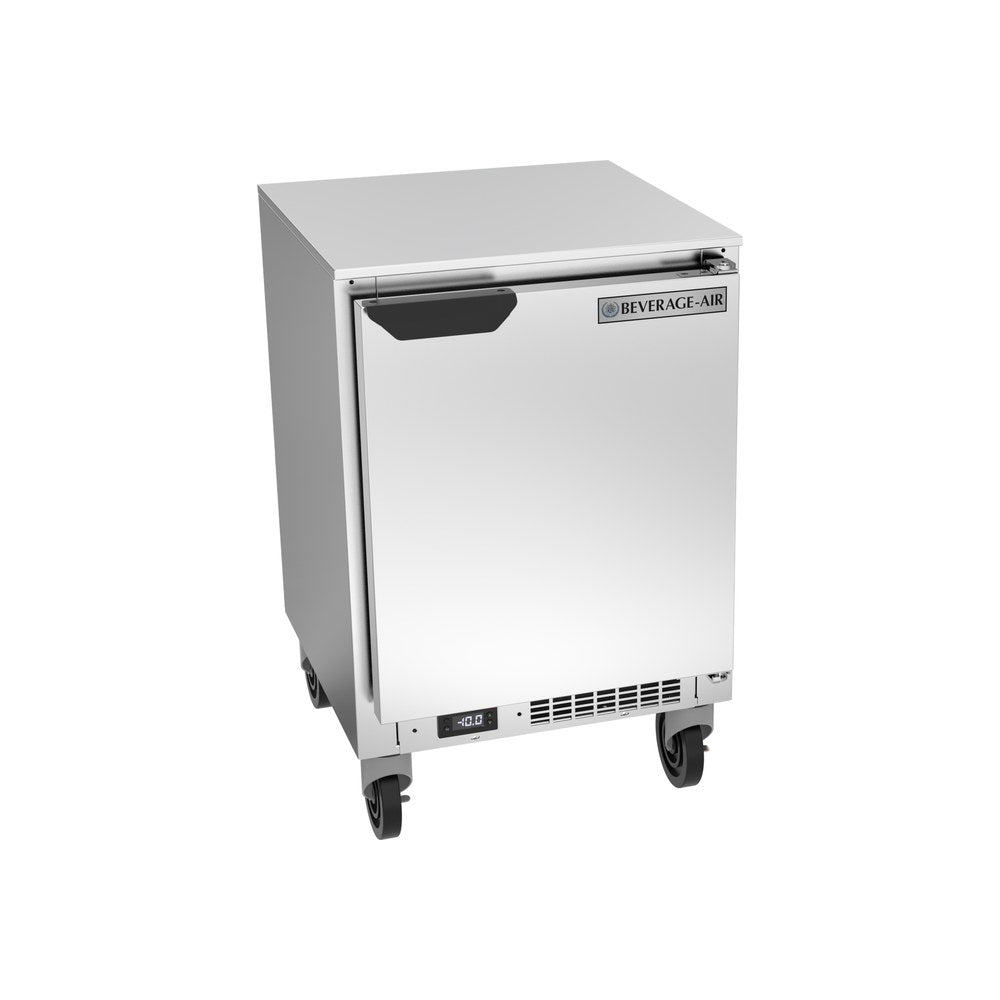

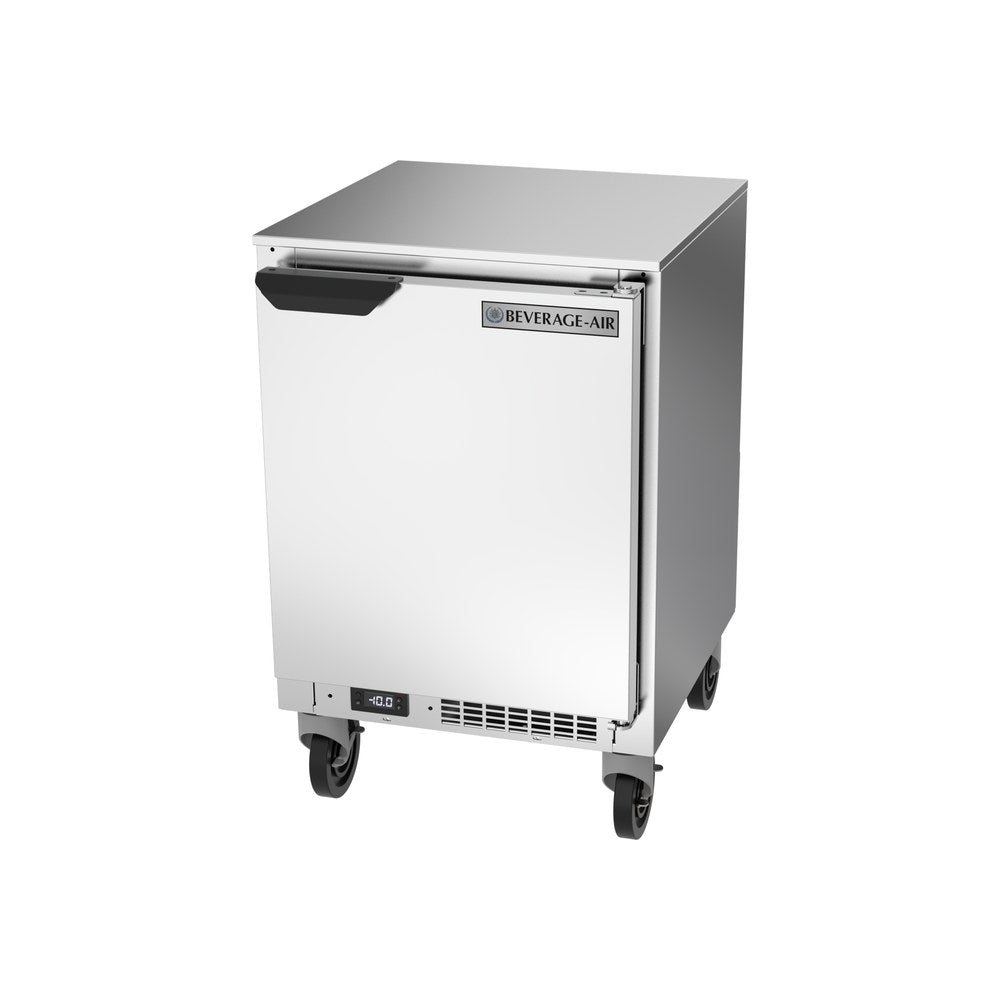

Beverage Air UCF20HC, 20" 1 Solid Door Undercounter Freezer

The Beverage Air UCF20HC is a commercial 20" undercounter freezer with one solid door and 2.34 cu. ft. of storage. Bars, cafes and kitchens use it to keep frozen items close to the point of use under an existing counter. Its compact width fits narrow spaces.

Features:

• Exterior: stainless steel front and sides
• Interior: corrosion-resistant aluminum
• Electronic temperature control
• Self-closing door with a 120° stay-open feature on cartridge-style hinges

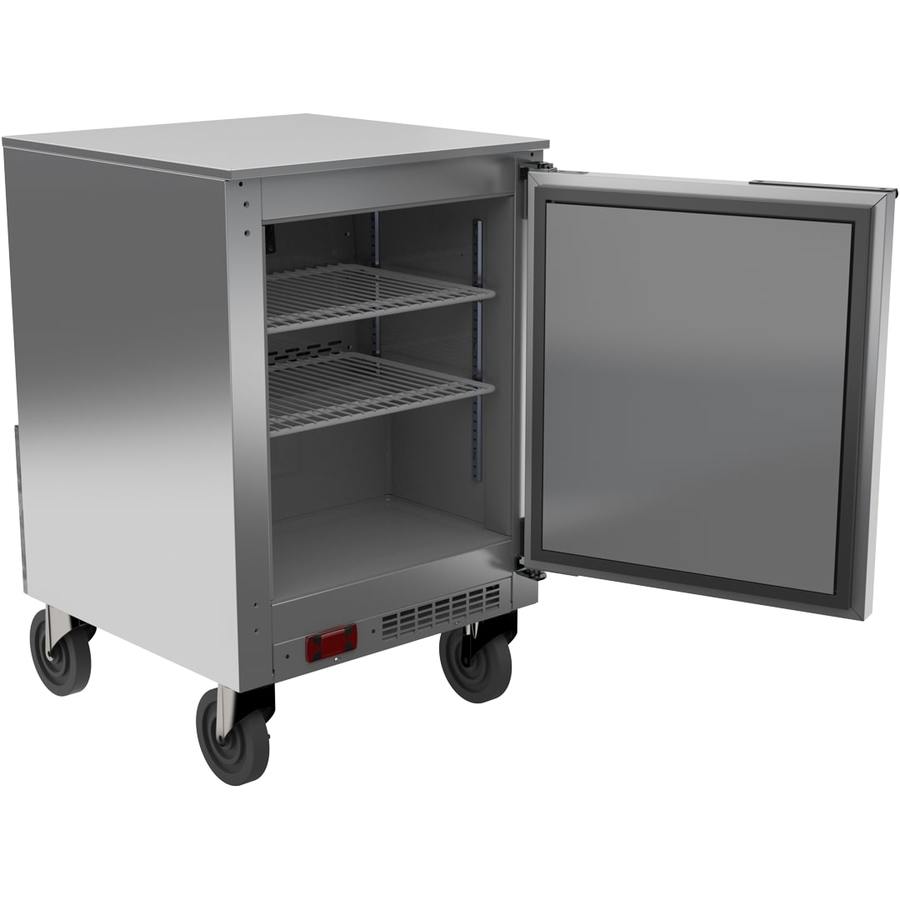

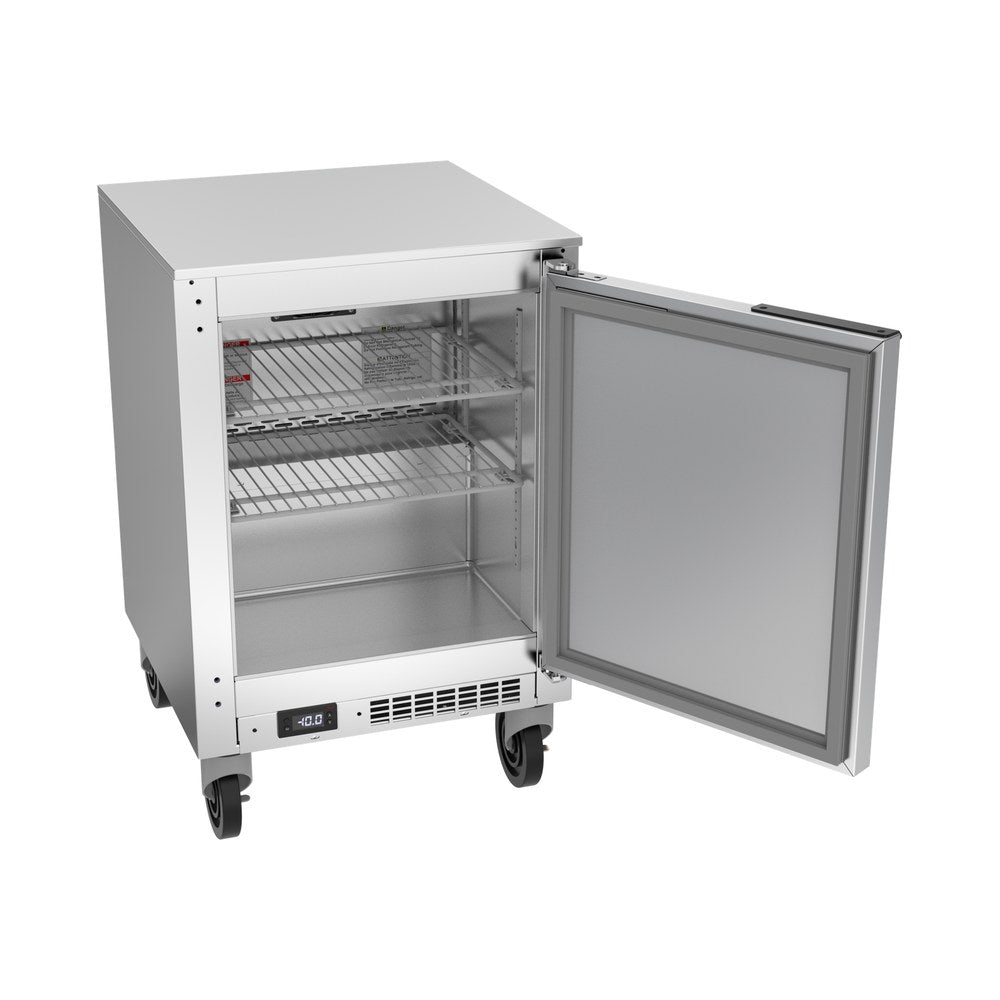

• 2 epoxy-coated wire shelves
• Magnetic snap-in door gaskets for a tight seal
• 6" casters, two with brakes
• R290 hydrocarbon refrigerant that meets CARB, SNAP and DOE rules
• Adaptive defrost
• Hot gas condensate evaporator (no drain line needed)

Specifications:

• Model: UCF20HC
• Exterior dimensions: 20" W x 24-1/2" D x 31-1/8" H
• Capacity: 2.34 cu. ft.
• Doors: 1
• Shelves: 2
• Temperature: down to -10°F
• Refrigeration: 1/4 HP, R290, rear mounted compressor
• Electrical: 115V/60Hz/1Ph, 2.5 amps, NEMA 5-15P plug, 8' cord
• Shipping weight: 130 lb
• Warranty: 7 years parts & labor, 7 years compressor (manufacturer)

Good to know:

• Plan for about 40-3/4" of depth in front of the unit with a door open 90°.
• The door hinge can be reversed in the field (hinge kit sold separately).
• It plugs into a standard 115V outlet (NEMA 5-15P); a dedicated circuit is recommended.
• Factory options include locks, wire shelf divider and 3" casters. Ask us before ordering if you need one.
• Beverage-Air warranty is 7 years on parts, labor and compressor for commercial use; residential installations are not covered.
• Ships free by freight. Liftgate delivery is available for $85.
