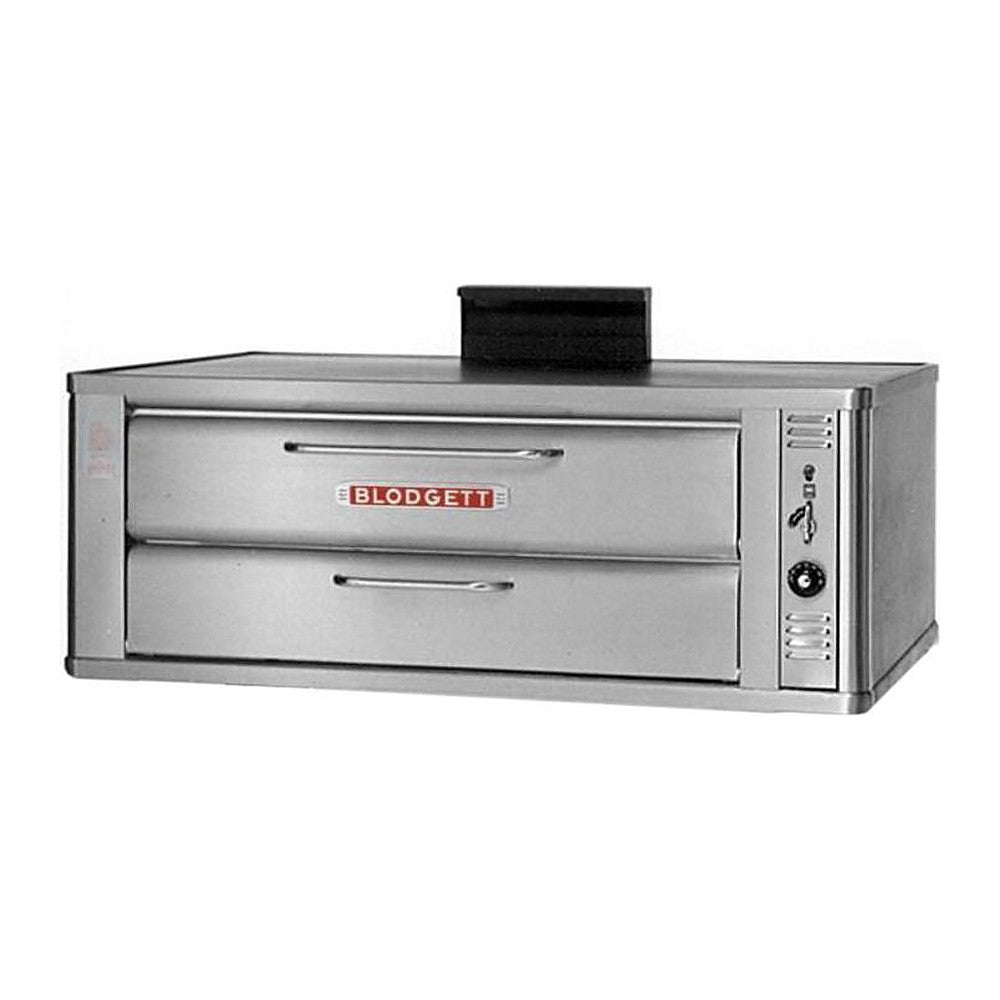

Blodgett 911 Base, 51" Gas Deck Oven Base Section, 33" x 22" x 7" Compartment, No Legs, 20,000 BTU

The Blodgett 911 Base is a single 911 oven section supplied without legs, used to add a deck to a Blodgett stack or to build up a custom configuration on a stand. It has one 33" x 22" x 7" baking compartment, a 20,000 BTU burner and a 200°F to 500°F thermostat.

Best for:

• Adding a 911 deck to an existing Blodgett stack
• Building a custom deck combination on a stand or curb
• Replacing a worn section in a stacked oven

Key specifications:

• Model: 911 Base
• Overall dimensions: 51" W x 30" D x 22" H
• Baking compartments: 1
• Compartment size: 33" x 22" x 7" (W x D x H)
• Total input: 20,000 BTU/hr
• Temperature range: 200°F to 500°F
• Pan capacity: 1 full-size 18" x 26" sheet pans
• Deck: 11-gauge press-formed, reinforced steel
• Gas: natural gas or propane (specify when ordering); 3/4" connection
• Shipping weight: 410 lb
• Certifications: NSF

Features:

• Stainless steel front, top, sides and back, fully insulated on all sides
• Aluminized steel baking compartment lining
• Counterbalanced doors (no springs) with concealed hinges and chrome-plated tubular steel handles
• Free-floating, easily removable duplex-tube burner in each section
• Separate burner door for ignition, cleaning and adjustment
• Liquid-pressure thermostat with a Fahrenheit dial on each section
• Flue vent on each compartment; draft diverter supplied
• Supplied without legs; order a stand, curb or stacking hardware separately as needed

Installation notes:

• Install by a licensed gas fitter in line with local codes
• Place under a vented commercial hood
• Specify natural gas or propane at order
• Allow 6" clearance to combustible and non-combustible construction
• Check door and hallway widths: the oven ships crated and needs a large entry opening

Warranty:

• 2 years parts and 1 year labor from Blodgett
• 5-year limited warranty on the oven door (parts only, glass excluded)
