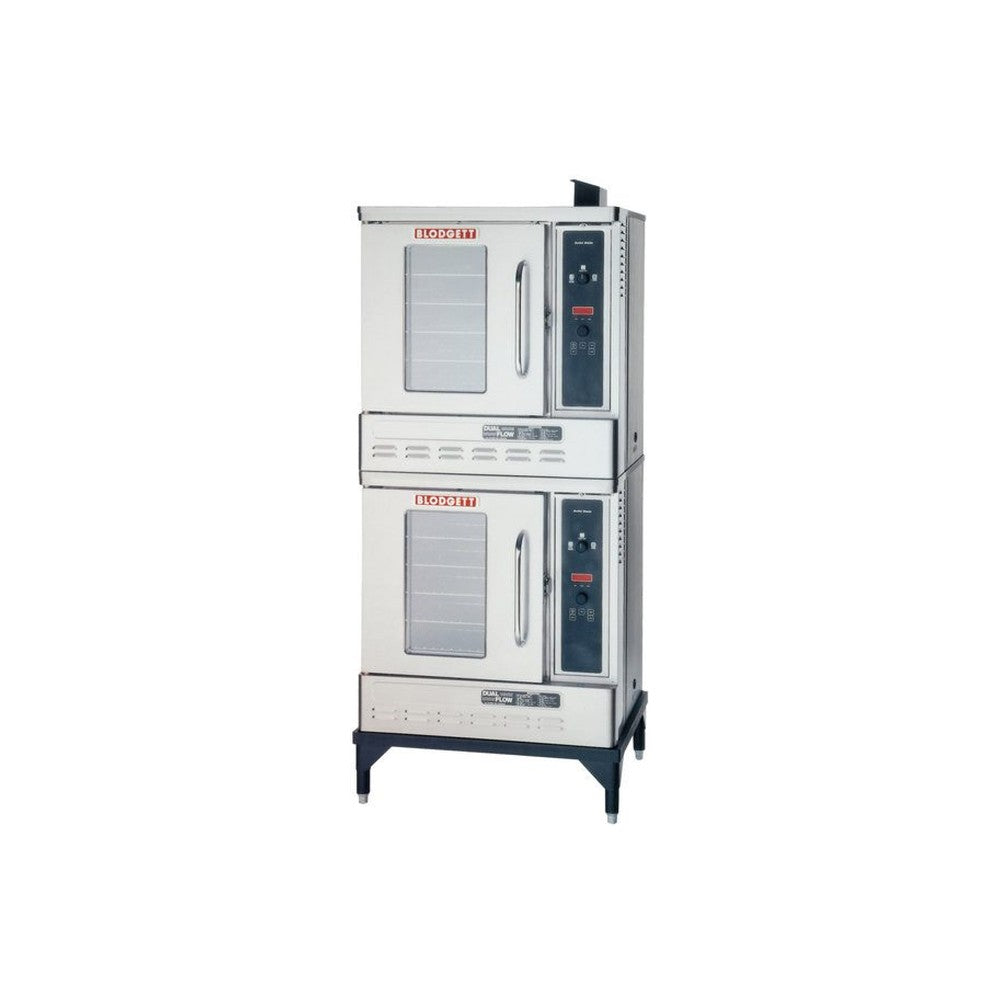

Blodgett DFG-50 DBL, Gas Double Deck Half Size Convection Oven, Standard Depth, Solid State Controls, 55,000 BTU

The Blodgett DFG-50 DBL is a DFG-50 half-size gas convection oven with two stacked sections. Each standard depth cavity holds five 13" x 18" half-size sheet pans on nine rack positions, and heat comes from a Dual Flow gas system that mixes direct and indirect heat, a removable dual-tube burner with electronic spark ignition and a 1/2 HP motor driving dual-inlet blower wheels (27,500 BTU per section). Solid state controls with a cook / cool-down selector make it easy to run.

Best for:

• Cafes, bakeries and small kitchens that need convection in a 30" footprint
• Cookies, pastries, half-sheet roasting and reheating
• Doubling capacity without adding floor space

Key specifications:

• Model: DFG-50 DBL
• Configuration: double deck, half size, standard depth
• Overall dimensions: 30.25" W x 25.1" D x 68.9" H
• Capacity: 10 half-size sheet pans (5 per section)
• Total input: 55,000 BTU/hr (27,500 per section)
• Gas: natural gas or propane (specify at order)
• Electrical: 120 V, single phase, for controls and blower
• Temperature range: 200°F to 500°F
• Shipping weight: 760 lb
• Certifications: ETL, NSF

Features:

• Porcelainized or stainless steel liner
• Dual-pane thermal glass or solid stainless steel door with a chrome-plated handle
• Five chrome-plated removable racks, nine rack positions
• Solid state infinite thermostat (200°F to 500°F) and 60-minute timer
• Stainless steel front, top and sides
• Each section has its own controls

Installation notes:

• Installation by a licensed gas fitter under a vented hood
• Specify natural gas or propane at order
• Check required clearances on the spec sheet

Warranty:

• 3 years parts and 2 years labor from Blodgett
• 5-year limited warranty on the oven door (parts only, glass excluded)
