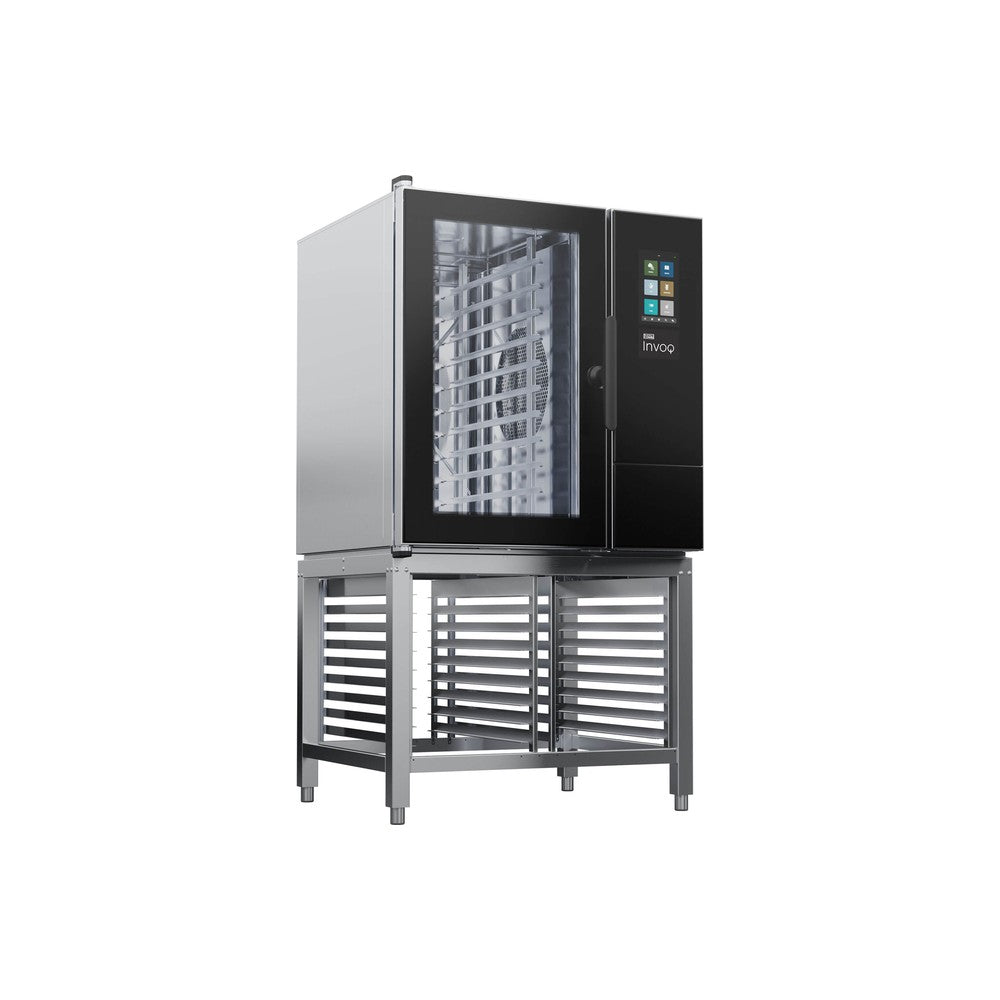

Blodgett INVOQ 101BE-PT, Electric Pass-Through Boiler Combi Oven with Stand, 10-1/1 GN, Touchscreen Controls, 18 kW

The Blodgett INVOQ 101BE-PT is an INVOQ 10-pan, 1/1 GN electric combi oven with pass-through doors front and back, supplied with a stand. It uses a dedicated boiler for fast, dense steam, and cooks with steam, convection or both, controlled from the INVOQ touchscreen. Each shelf takes a 12" x 20" hotel pan (1/1 GN); choose 8 racks at 3.35" spacing or 10 racks at 2.76" spacing when ordering.

Best for:

• Restaurants, hotels, banquet and catering kitchens replacing a steamer and a convection oven with one unit
• Roasting, steaming, baking, overnight cooking and rethermalizing
• Kitchens that want automatic cleaning and programmable recipes
• Bakery and production kitchens loading from one side and unloading from the other

Key specifications:

• Model: INVOQ 101BE-PT
• Configuration: single oven, 10-1/1 GN, with stand, pass-through
• Overall dimensions: 36.9" W x 41.7" D x 70.1" H
• Rack configuration: 8 racks at 3.35" spacing or 10 racks at 2.76" spacing (specify at order)
• Steam: boiler
• Power: 18 kW
• Electrical: 208 / 240 V, three phase (specify at order)
• Controls: INVOQ touchscreen with programmable recipes and automatic cleaning
• Shipping weight: 467 lb
• Certifications: ETL, UL, NSF, ENERGY STAR

Features:

• Steam, convection and combination cooking modes
• Automatic cleaning system
• Programmable multi-step recipes
• Stainless steel cooking chamber
• Integrated drain and water inlet systems with smart sensors
• Pass-through design with doors on both sides
• Stand included

Installation notes:

• Licensed electrician required; dedicated three-phase circuit
• Cold water supply and drain required; follow Blodgett water quality guidelines (a water treatment system is recommended)
• Specify voltage and rack configuration at order
• Install with the clearances shown on the spec sheet; a hood may be required by local code

Warranty:

• 1 year parts and labor from Blodgett
• Gaskets and wear items are covered for a shorter period; see the Blodgett warranty statement
