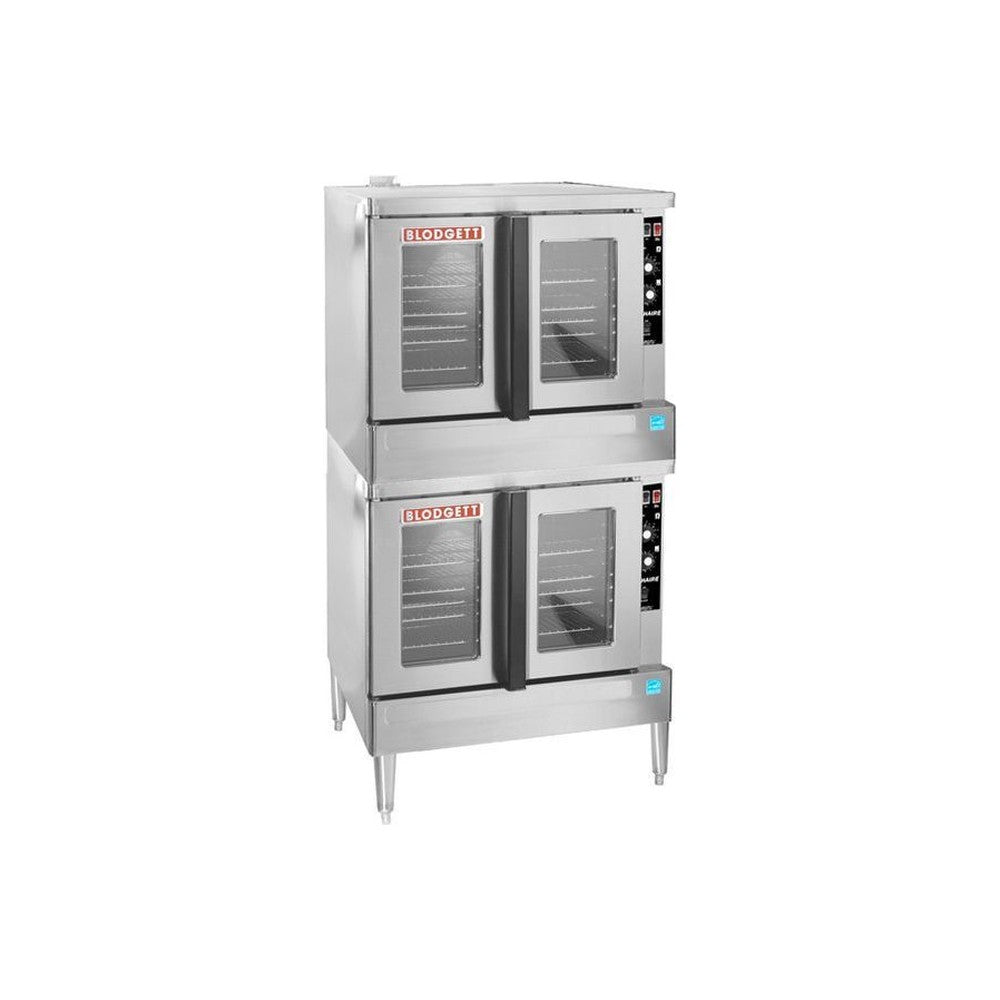

Blodgett ZEPH-100-E DBL, Zephaire Electric Double Deck Full Size Convection Oven, Standard Depth, 22 kW

The Blodgett ZEPH-100-E DBL is a Zephaire full-size electric convection oven, two standard depth sections. Each cavity takes five 18" x 26" sheet pans and uses three tubular heating elements (11 kW per section) and a two-speed 1/2 HP blower motor. Controls are a solid state infinite control with separate thermostat and timer dials, with a cook / cool-down switch.

Best for:

• Restaurants, schools, hotels and caterers that need dependable full-size convection baking and roasting
• Sheet-pan baking, roasting, reheating and finishing
• High-volume kitchens that need two ovens in one footprint

Key specifications:

• Model: ZEPH-100-E DBL
• Configuration: double deck, full size, standard depth
• Overall dimensions: 38.25" W x 36.88" D x 70.63" H
• Cavity (each): 29" W x 24.25" D x 24.25" H
• Capacity: 10 full-size sheet pans (5 per section)
• Power: 22 kW total (11 kW per section)
• Electrical: 208 / 220/240 V, single or three phase (specify at order)
• Temperature range: 200°F to 500°F
• Shipping weight: 960 lb
• Certifications: ETL, NSF, CE, ENERGY STAR

Features:

• Dual-pane thermal glass windows with simultaneous-opening doors
• Porcelainized steel liner
• Five chrome-plated racks per section
• Cook / cool-down mode selector
• Stainless steel front, top and sides
• Stacked sections each have their own controls

Installation notes:

• Installation by a licensed electrician on a dedicated circuit
• Specify voltage and phase at order
• Leave the clearances shown on the spec sheet for service access

Warranty:

• 2 years parts and 2 years labor from Blodgett
• 3-year limited warranty on the oven door (parts only, glass excluded)
