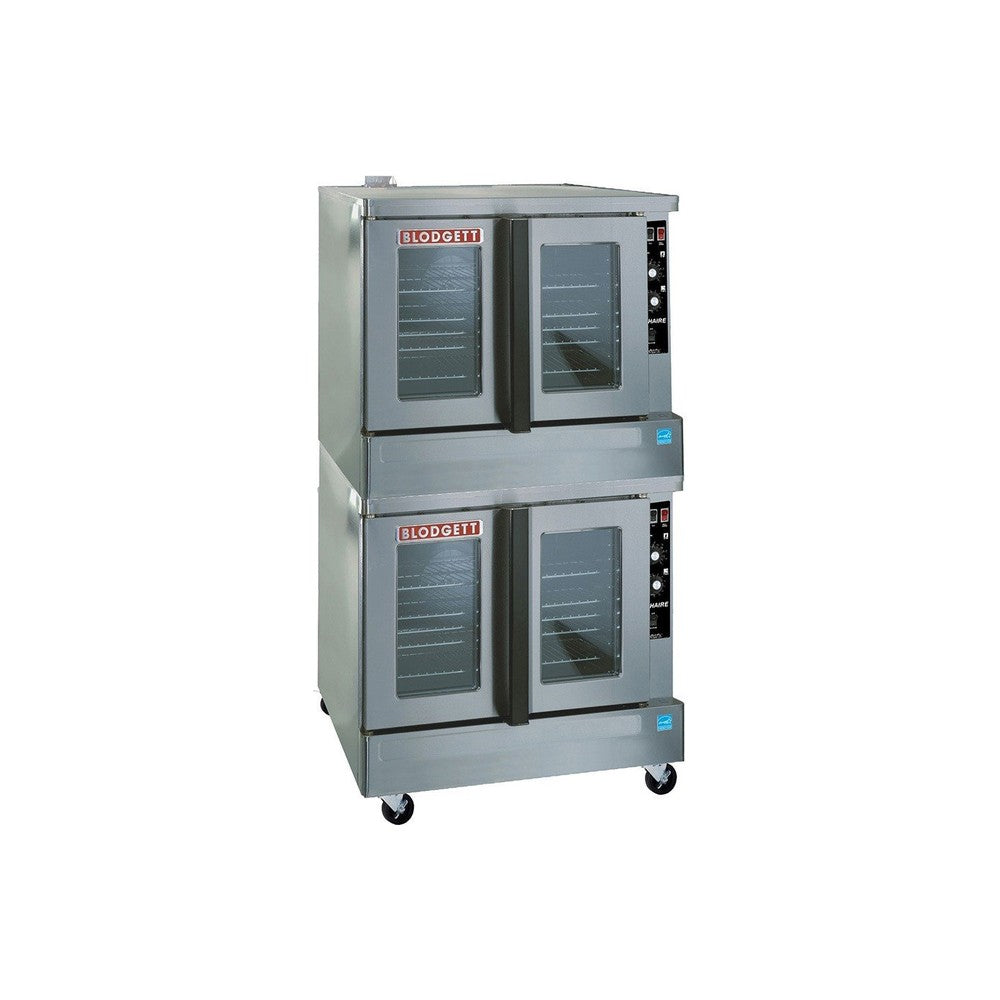

Blodgett ZEPH-100-G-ES DBL, Zephaire Gas Double Deck Full Size Convection Oven, Standard Depth, Energy Saver, 90,000 BTU

The Blodgett ZEPH-100-G-ES DBL is a Zephaire full-size gas convection oven, two standard depth sections. Each cavity takes five 18" x 26" sheet pans and uses a direct-fired, energy-saving gas system (45,000 BTU per section) with electronic spark ignition, a gas shut-off switch on the control panel and a two-speed 3/4 HP blower motor. Controls are a solid state infinite control with separate thermostat and timer dials, with a cook / cool-down switch.

Best for:

• Restaurants, schools, hotels and caterers that need dependable full-size convection baking and roasting
• Sheet-pan baking, roasting, reheating and finishing
• High-volume kitchens that need two ovens in one footprint

Key specifications:

• Model: ZEPH-100-G-ES DBL
• Configuration: double deck, full size, standard depth
• Overall dimensions: 38.25" W x 36.88" D x 70.63" H
• Cavity (each): 29" W x 24.25" D x 24.25" H
• Capacity: 10 full-size sheet pans (5 per section)
• Total input: 90,000 BTU/hr (45,000 per section)
• Gas: natural gas or propane (specify at order)
• Electrical: 115 V, 60 Hz, single phase, cord and plug
• Temperature range: 200°F to 500°F
• Shipping weight: 1,095 lb
• Certifications: ETL, NSF, CE, ENERGY STAR

Features:

• Dual-pane thermal glass windows with simultaneous-opening doors
• Porcelainized steel liner (stainless optional)
• Five chrome-plated racks per section
• Cook / cool-down mode selector
• Stainless steel front, top and sides
• Two interior lamps per section
• Stacked sections each have their own controls

Installation notes:

• Installation by a licensed gas fitter; install under a vented hood
• Specify natural gas or propane at order
• Leave the clearances shown on the spec sheet for service access

Warranty:

• 2 years parts and 2 years labor from Blodgett
• 3-year limited warranty on the oven door (parts only, glass excluded)
