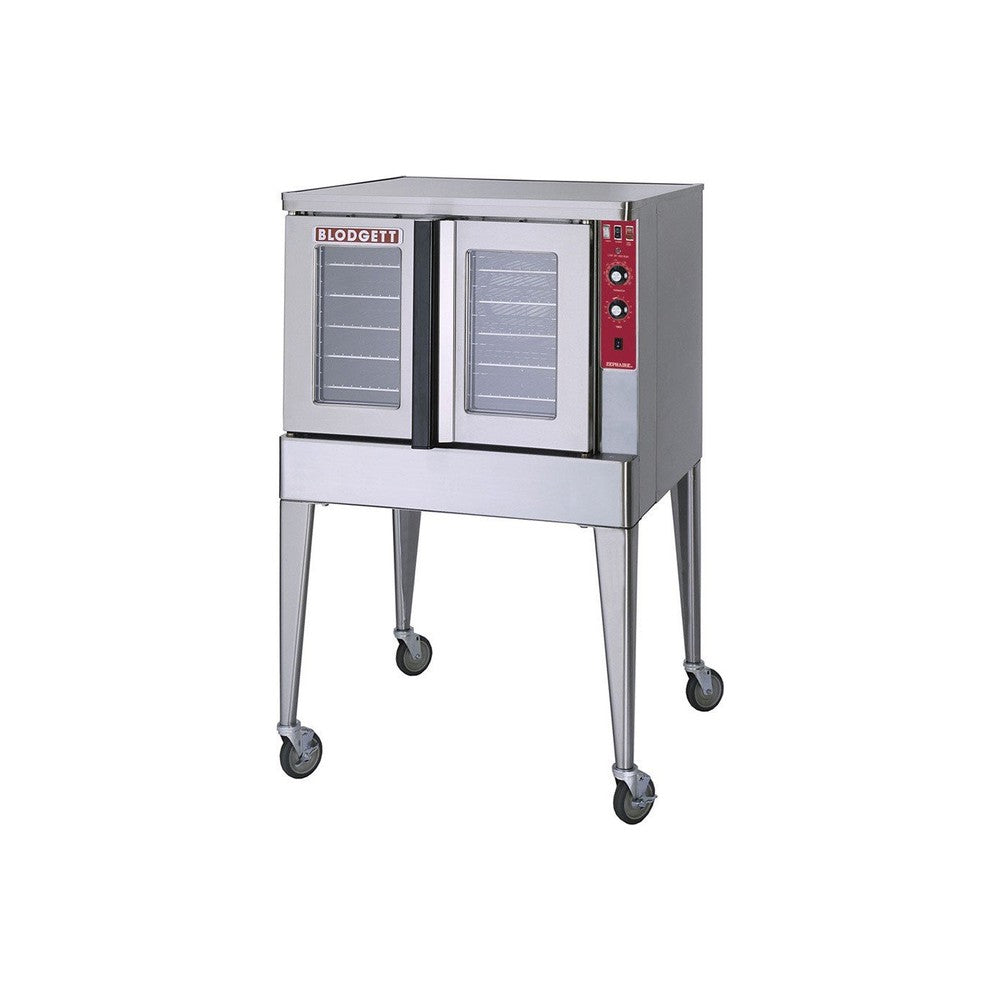

Blodgett ZEPH-200-G SGL, Zephaire Gas Single Deck Full Size Convection Oven, Bakery Depth, 60,000 BTU

The Blodgett ZEPH-200-G SGL is a Zephaire full-size gas convection oven, one bakery depth section. Each cavity takes five 18" x 26" sheet pans left-to-right or front-to-back and uses a dual-flow gas system that combines direct and indirect heat (60,000 BTU per section), electronic spark ignition and a dual-inlet blower with a two-speed 1/2 HP motor. Controls are a solid state infinite control with separate thermostat and timer dials, with a cook / cool-down switch.

Best for:

• Restaurants, schools, hotels and caterers that need dependable full-size convection baking and roasting
• Sheet-pan baking, roasting, reheating and finishing
• Bakeries that want to load 18" x 26" pans either direction

Key specifications:

• Model: ZEPH-200-G SGL
• Configuration: single deck, full size, bakery depth
• Overall dimensions: 38.25" W x 36.88" D x 57" H
• Cavity (each): 29" W x 28.25" D x 24.25" H
• Capacity: 5 full-size sheet pans (5 racks)
• Total input: 60,000 BTU/hr (60,000 per section)
• Gas: natural gas or propane (specify at order)
• Electrical: 115 V, 60 Hz, single phase, cord and plug
• Venting: draft diverter or direct vent (specify at order)
• Temperature range: 200°F to 500°F
• Shipping weight: 617 lb
• Certifications: ETL, NSF

Features:

• Dual-pane thermal glass windows with simultaneous-opening doors
• Porcelainized steel liner
• Five chrome-plated racks per section
• Cook / cool-down mode selector
• Stainless steel front, top and sides

Installation notes:

• Installation by a licensed gas fitter; install under a vented hood
• Specify natural gas or propane at order
• Leave the clearances shown on the spec sheet for service access

Warranty:

• 2 years parts and 2 years labor from Blodgett
• 3-year limited warranty on the oven door (parts only, glass excluded)
