Captive-Aire | SKU:
A1-G10D
Captive-Aire A1-G10D, Make-up Air Supply Unit 10" Blower, 1 HP 115 V 2500 CFM, 1054 RPM
Regular price
$1,420.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Captive-Aire A1-G10D, Make-up Air Supply Unit 10" Blower, 1 HP 115 V 2500 CFM, 1054 RPM is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Captive-Aire A1-G10D, Make-up Air Supply Unit 10" Blower, 1 HP...
Regular price
$1,420.00
Unit price
/
Unavailable
Description
Description
Direct Drive Untempered Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch.
- Supply Fan handles 2500 CFM @ 0.500" wc ESP, Fan runs at 1054 RPM.
- Supply Motor: 1.000 HP, 1 Phase, 115 V, 60Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor)
- Down Discharge - Air Flow Right -> Left

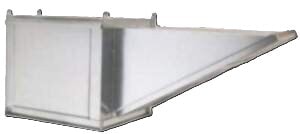

- Sloped Filtered Intake for Size #1 Standard Untempered Supply Unit. 22" Wide x 25.875" Long x 23.375" High.
- ECM Wiring Package and Manual or 0-10VDC Control for Supply EC motors. RTC Controller.
- Down Discharge Construction for Size 1 Untempered Belt Drive AHUs.
Call Today For Ventilation Advice: 1-800-913-0192
