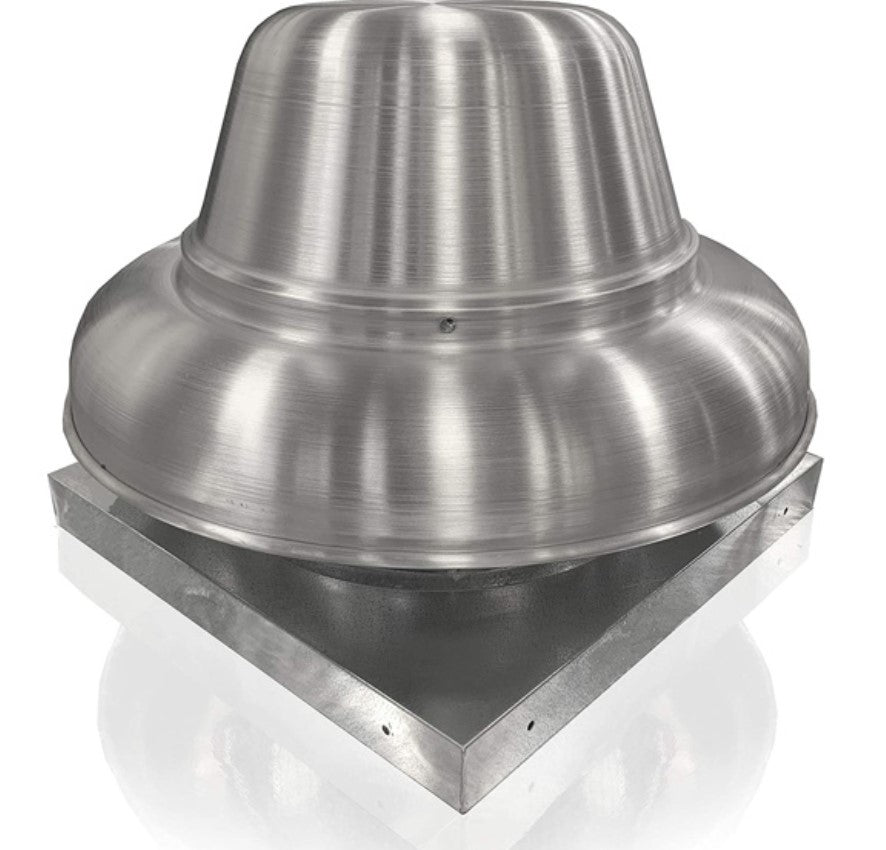

Captive-Aire CAS-DR10HFA, Centrifugal Downblast Direct Drive DR10HFA Roof Mounted
Captive-Aire CAS-DR10HFA, Centrifugal Downblast Direct Drive DR10HFA Roof Mounted is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Captive-Aire CAS-DR10HFA, Centrifugal Downblast Direct Drive DR10HF...
Description
Description
*THIS ITEM WILL USE CAPTIVE-AIRE SISTER BRAND LABEL "VXD"
DR10HFA High Speed Direct Drive Centrifugal Downblast Exhaust Fan with speed control, birdscreen, disconnect switch and 9" wheel Exhaust Fan handles 300 CFM @ -0.125" wc ESP. Fan runs at 1132 RPM. Exhaust Motor: 0.166 HP, 1 Phs, 115 V, 60Hz, 1.9 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor).
Includes RTC controller for manual or 0-10V speed control.
SPECIFICATIONS:
- HP: 0.16
- Voltage: 115
- Phase: 1
- Motor Type: ECM
- FLA: 1.9
- Fan/Motor RPM Range: 350-1800
- Speed Controller Type: RTC
- Exhaust Fan UL Listing: UL 705 (General Ventilation)
Specifications
Specifications
| CATEGORY | Exhaust Fan |
|---|
Spec Sheet (PDF)
