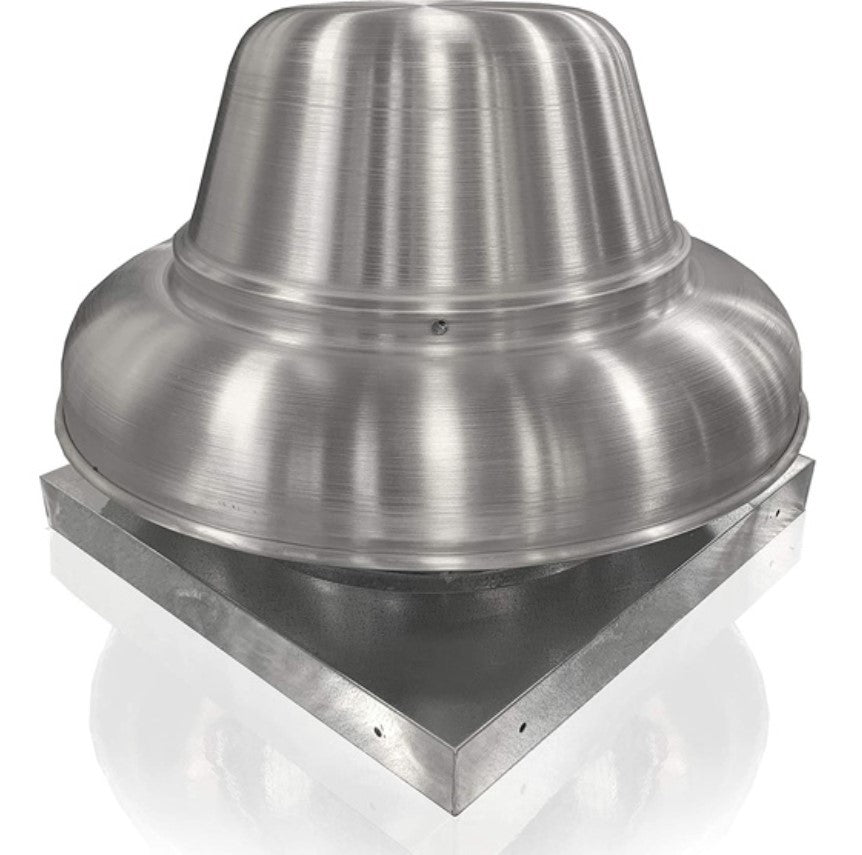

Captive-Aire CAS-DR12HFA, Centrifugal Downblast Direct Drive Roof Mounted

*THIS ITEM WILL USE CAPTIVE-AIRE SISTER BRAND LABEL "VXD"

Centrifugal Downblast Direct Drive DR12HFA Roof Mounted General Ventilation (UL 705) 0.25 HP 600 CFM @0.25 in. w.c.

High Speed Direct Drive Centrifugal Downblast Exhaust Fan with speed control, birdscreen, disconnect switch and 10-1/2" wheel. Exhaust Fan handles 600 CFM @ -0.250" wc ESP. Fan runs at 1230 RPM. Exhaust Motor: 0.250 HP, 1 Phs, 115 V, 60Hz, 2.9 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor).

Includes RTC Controller for manual or 0-10V speed control.

SPECIFICATIONS:

• HP: 0.25
• Voltage: 115
• Phase: 1
• Motor Type: ECM
• FLA: 2.9
• Fan/Motor RPM Range: 350-1800
• Speed Controller Type: RTC
• Exhaust Fan UL Listing: UL 705 (General Ventilation)
