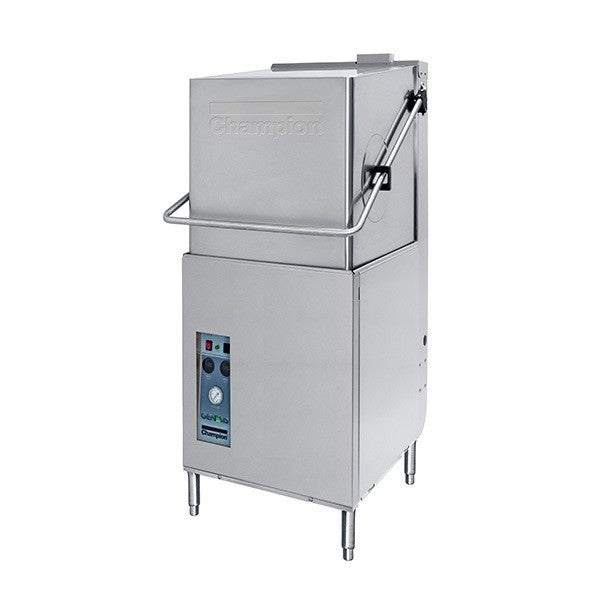

Champion DH6000 High-Temp Hood-Type Dishwasher w/ Booster, 60 Racks/Hr

Champion DH6000 High-Temperature Hood Machine

The DH6000 is Champion's flagship hood-type dishwasher. A 2 HP pump and built-in 7.5kW booster deliver up to 60 racks an hour with just 0.73 gallons per rack, and Rinse Sentry holds the cycle until the final rinse is hot enough to sanitize.

Where it fits

Built for full-service restaurants, hotels and institutions that want fast, heat-sanitized results from a single-rack machine.

Key specifications

• Model: DH6000
• Sanitizing: High Temperature
• Configuration: Hood-Type, Single Rack, Corner or Straight-Thru
• Capacity: up to 60 racks per hour
• Dimensions (W x D x H): 34 1/8" x 31 5/8" x 68"
• Weight: 300 lb
• Electrical: 208-240V, Single or Three Phase, 72-81 A (1-ph) / 48-54 (3-ph), with booster
• 0.73 gal water per rack
• Built-in 7.5kW booster; 5.2kW tank heat
• 2 HP wash pump
• Pan Mode extended cycles
• Certifications: UL listed; Energy Star
• Warranty: 1 year parts and labor

Installation notes

Pan Mode adds longer 2-, 4- and 6-minute cycles for baked-on pots. Field convertible between corner and straight-through. Electrical with booster: 208-240V, 72-81A single phase or 48-54A three phase.
