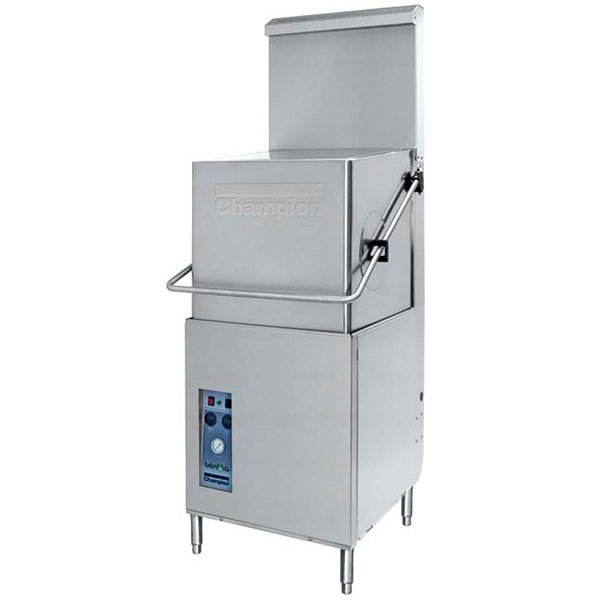

Champion DH6000-VHR Ventless Heat-Recovery Hood Dishwasher, 40 Racks/Hr

Champion DH6000-VHR Ventless Heat-Recovery Machine

The DH6000-VHR adds a ventless heat-recovery system to Champion's hood-type platform. Steam is condensed at the end of each cycle and its heat is reused, so the machine can be installed without an exhaust hood while still sanitizing at high temperature.

Where it fits

A fit for kitchens in buildings where a dishwasher hood is impractical or too costly to add.

Key specifications

• Model: DH6000-VHR
• Sanitizing: High Temperature
• Configuration: Ventless Hood-Type, Single Rack, Corner or Straight-Thru
• Capacity: up to 40 racks per hour
• Dimensions (W x D x H): 34 1/8" x 31 5/8" x 68"
• Weight: 350 lb
• Electrical: 208-240V, Single or Three Phase, 72-81 A (1-ph) / 48-50 (3-ph), with booster
• Ventless heat recovery
• 0.73 gal water per rack
• Built-in 7.5kW booster; 5.2kW tank heat
• Certifications: UL listed; Energy Star
• Warranty: 1 year parts and labor

Installation notes

Runs a 90-second cycle for up to 40 racks an hour. With the built-in booster: 208-240V, 72-81A single phase or 48-50A three phase. Verify ventless acceptance with your local inspector.
