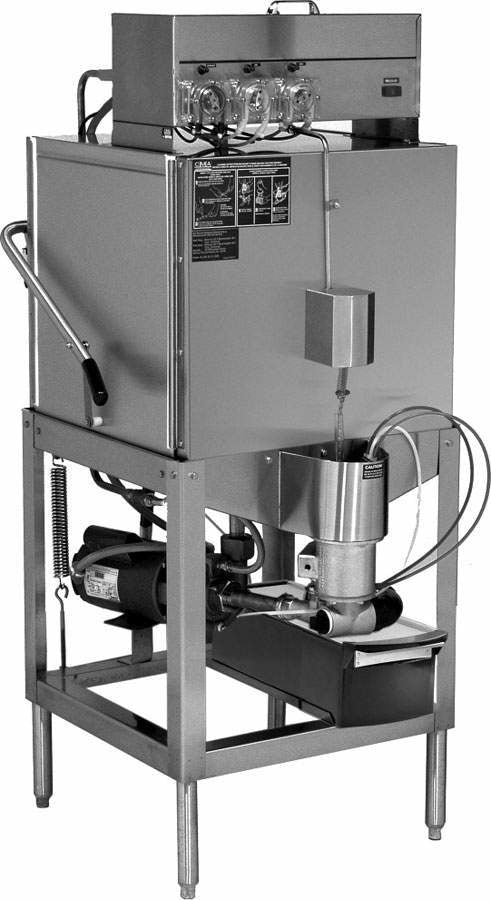

CMA AH Low-Temp Straight Door-Type Dishwasher, 40 Racks/Hr

CMA AH Straight-Through Low-Temp Door Machine

The AH is a no-frills workhorse: lift the door, slide in a rack, and a 90-second cycle washes and chemically sanitizes it without any built-in heaters. Because nothing inside heats the water, the machine gives off no steam and runs on an ordinary 115V circuit.

Where it fits

A sensible pick for cafés, bars, pizzerias and small restaurants with a straight dish table layout and a reliable hot water heater.

Key specifications

• Model: AH
• Sanitizing: Low Temperature Chemical Sanitizing
• Configuration: Single Rack Straight-Thru
• Capacity: up to 40 racks per hour
• Dimensions (W x D x H): 25 3/4" x 25 3/4" x 57"
• Weight: 259 lb
• Electrical: 115V, Single Phase, 16 A
• 1.7 gal water per rack
• 90-second total cycle
• 17" maximum dish clearance
• Certifications: NSF and UL listed
• Warranty: 1 year parts and labor

Installation notes

Supply 140°F hot water for best results. The AH accepts an optional CMA Temp-Sure booster or a dual detergent bowl if you need them later.
