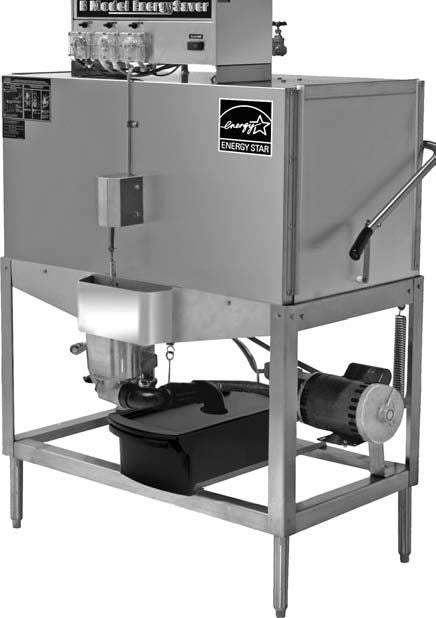

CMA B Low-Temp Double-Rack Door-Type Dishwasher, 80 Racks/Hr

CMA B Double-Rack Low-Temp Door Machine

The B doubles the work of a standard door machine by washing two racks side by side in every cycle. It is Energy Star rated and uses well under a gallon of water per rack while sanitizing chemically.

Where it fits

Great for busy restaurants and banquet operations that want near-conveyor output from a straight-line door machine.

Key specifications

• Model: B
• Sanitizing: Low Temperature Chemical Sanitizing
• Configuration: Double Rack Straight-Thru
• Capacity: up to 80 racks per hour
• Dimensions (W x D x H): 44 1/4" x 25 1/4" x 60 1/2"
• Weight: 359 lb
• Electrical: 115V, Single Phase, 30 A
• 0.97 gal water per rack
• 90-second total cycle
• 20-1/2" maximum dish clearance
• Certifications: ETL listed; Energy Star
• Warranty: 1 year parts and labor

Installation notes

Runs on a 115V, 30-amp circuit. The 20-1/2" clearance handles sheet pans and tall pots without a separate pot washer.
